SmartWall + Hybrid Paint Booth
A chimney-free, mobile paint solution for spot/panel repairs. The SM1000 Hybrid Booth captures overspray; the SM3000 SmartWall scrubs & returns clean air via a multi-stage filterbank.
- No roof duct—return air is filtered back into the workshop
- ATEX-rated fans & components for paint environments
- Low energy vs full spray booths—big paint jobs stay in the booth
- Optional extender increases SM1000 spray surface area
How it works
1
Position the SM1000 Hybrid Booth around the repair area; attach clear enclosure.
2
Connect the flexible hoses from the booth directly to the SM3000 SmartWall.
3
Spray inside the enclosure—overspray & fumes are pulled through multi-stage filters.
4
Clean air is returned to the workshop; no external chimney required.
Overview demo • Autoplay muted • Loop
Watch the system in action
See how the SM1000 Hybrid Booth encloses the local paint area and how the SM3000 SmartWall filters and returns clean air back into the workshop.
The setup is quick to position, energy-efficient, and fully mobile—ideal for smart repairs and panel refinishing.
Hybrid Booth & SmartWall — additional demo
A second view highlighting airflow control, enclosure ergonomics, and easy positioning around the vehicle.
Use both clips to present the concept to technicians and safety officers.
Additional demo • Autoplay muted • Loop
SM1000 Hybrid Paint Booth
- Mobile, chimney-free booth that encloses the local work area
- Typical spray surface area: 1×1 m (extender increases coverage)
- Free-standing frame with wheels; quick set-up next to the vehicle
- ATEX-rated components; clear enclosure panels
- Runs on 110/230V single-phase

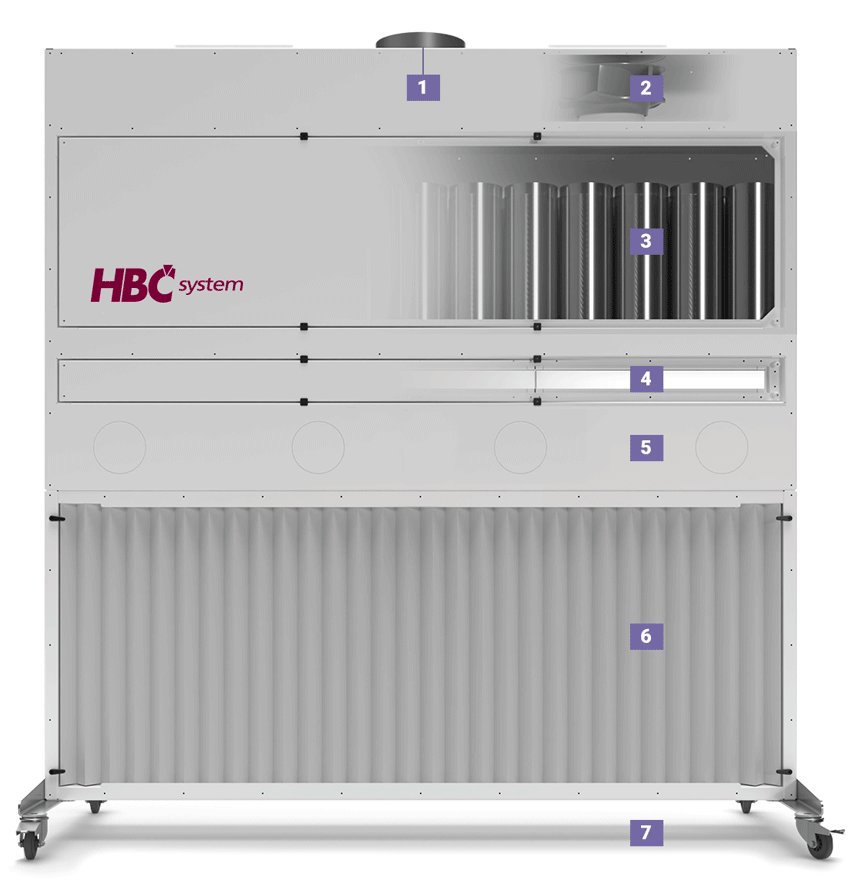

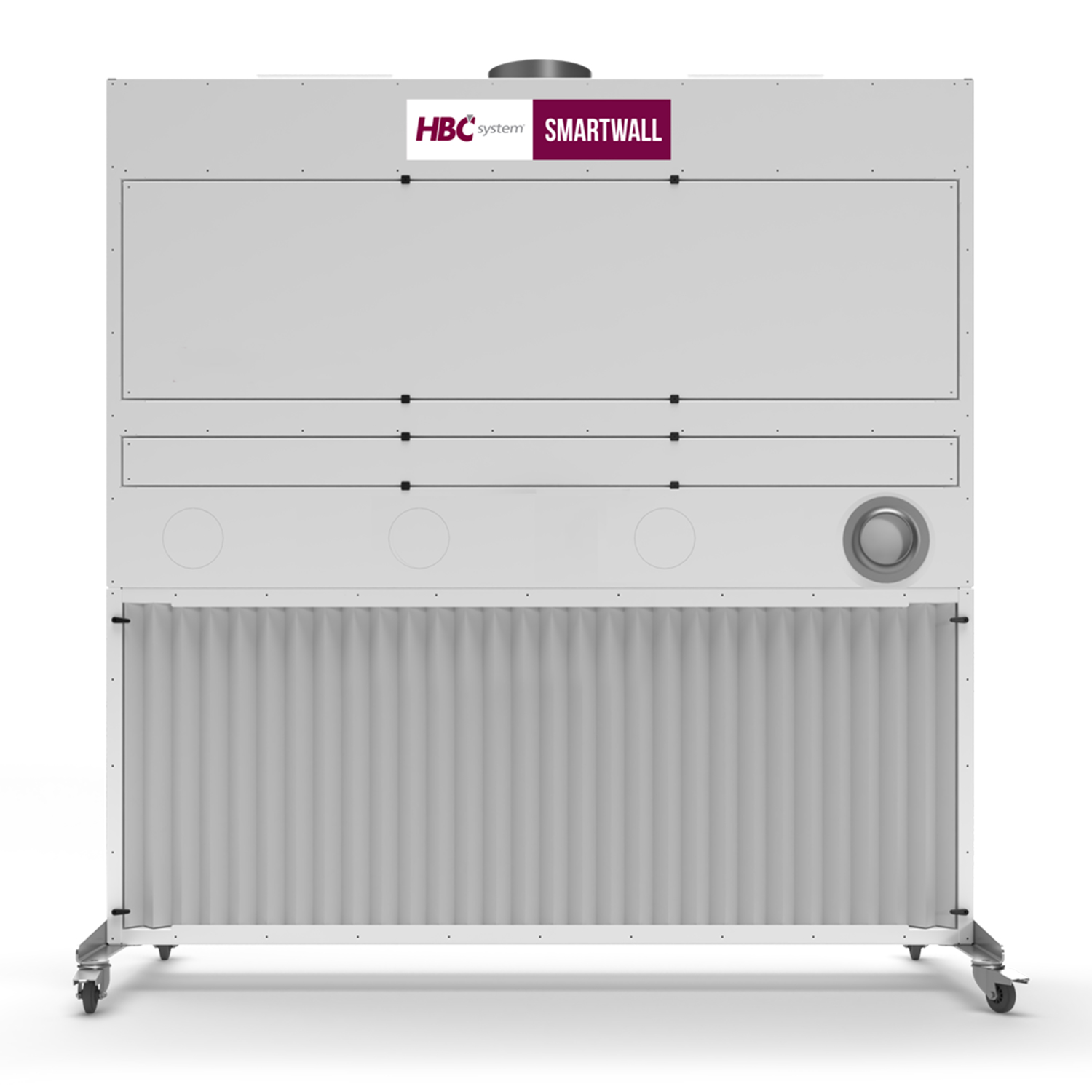

SM3000 SmartWall
- Multi-stage filtration bank that can exhaust from up to four Hybrid Booths (four inlets on the top)
- Connect up to four inlet hoses (multiple booths or tools)
- 26 activated-carbon cartridges + paint-stop & particle filters
- Clean air outlet—no roof duct or building chimney required

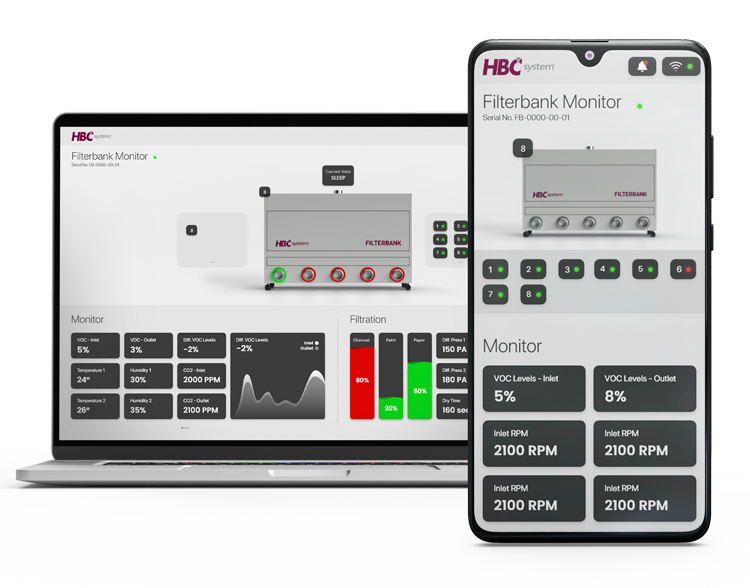

Intelligent Monitoring & Compliance
SmartWall monitoring supports key metrics to validate airflow and filter performance—and help document compliance.
- VOC levels
- Air speed / differential pressure
- Humidity & temperature
- Fan speed & spray-gun air feed
SM1000 Hybrid Booth
Spray surface area: 1×1 m (extender can increase coverage)
Power: 110/230V single-phase
Mobility: caster wheels; mobile enclosure
Safety: ATEX-rated components
*Confirm final electrical ratings and footprint with our team for your facility.
SM3000 SmartWall
Helps: up to 4 inlets
Filters: 26 activated-carbon + paint-stop & particle stages
Fans: ATEX 110/230V
Footprint: portable, wheeled frame
Ready to plan your install?
We’ll confirm footprint, inlets/hoses and compliance—then schedule a live demo.
FAQ
Do I need a chimney or roof duct?
No. Clean air is returned via the SmartWall—no external chimney required.
How big an area can I spray?
Typical spray surface area is 1×1 m; an extender can increase coverage.
How many booths can a SmartWall serve?
Up to four Hybrid Booths (four inlets on the top).
Is it ATEX compliant?
Yes—ATEX-rated fans, components and electricals.
What needs power?
Both the SmartWall and the Hybrid Booth run on 110/230V single-phase.
What does the monitoring track?
VOC levels, air speed/differential pressure, humidity, temperature and fan/spray-gun air feed.
