+66 88 984 8897Filter Drain Hose Extension 5m eQ
Article: 231141
DRESTER / HEDSON

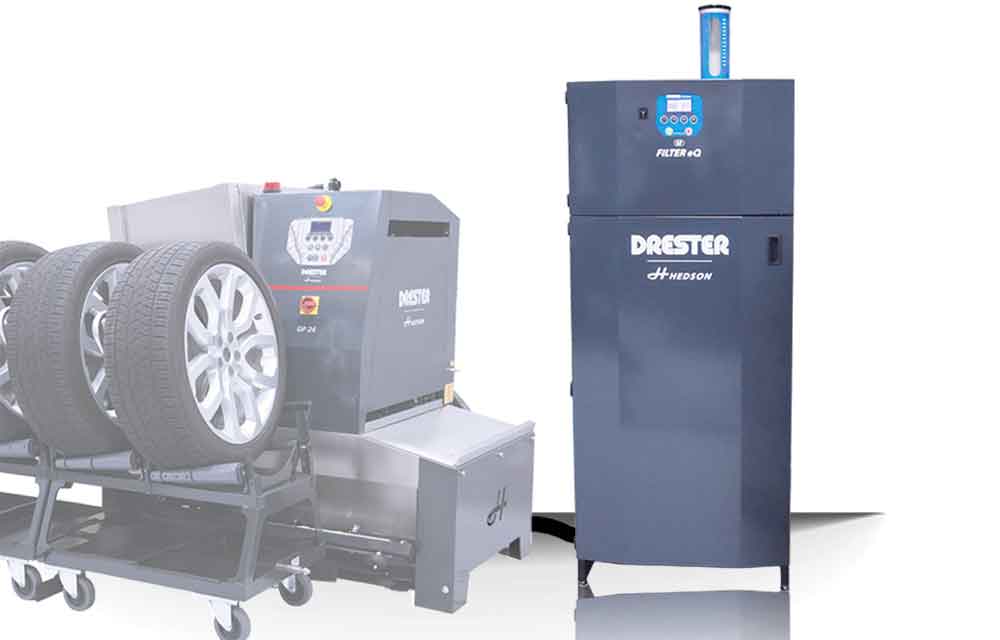

Drester GP Filter eQ
Keep wash water in use for longer.
Water purification for compatible Drester wheel washers. Contaminants are separated from the wash water so that cleaned water can return to the washing process.
Drester GP Filter eQ1 / 2
- Weight (kg)
- 85 kg
- Length (mm)
- 700 mm
- Height (mm)
- 1884 mm
- Width / depth (mm)
- 597 mm
Drester
Speak with M&H Sales
YOUR WORKSHOP
Plan the complete water circuit.
Discuss your existing Drester washer, clean-rinse equipment, available space and drainage with M&H. Filter eQ works with compatible GP10, GP12, GP24 and Flow installations; the correct connection and rinse configuration matter.
Compare 2 configurations
231000 · Drester GP Filter eQ
| Specification | Value |
|---|---|
| Transfer kit | NO |
231000-T · Drester GP Filter eQ
| Specification | Value |
|---|---|
| Transfer kit | YES |
Your selected configuration goes directly to M&H Group. No order or payment is placed here.
TECHNICAL DETAILS
The details that matter.
| Weight (kg) | 85 kg |
|---|---|
| Length (mm) | 700 mm |
| Height (mm) | 1884 mm |
| Width / depth (mm) | 597 mm |
| Power supply | 230V, 10 A |
| Water consumption | Approx. 1-1.5 L / washed wheel |
| Air supply | 8-12 bar |
All technical specifications
| Weight (kg) | 85 kg |
|---|---|
| Length (mm) | 700 mm |
| Height (mm) | 1884 mm |
| Width / depth (mm) | 597 mm |
| Power supply | 230V, 10 A |
| Water consumption | Approx. 1-1.5 L / washed wheel |
| Air supply | 8-12 bar |
| Air flow | 1000 L/min. at 7 bar |
| Air consumption | 50 L/wash cycle |
M&H Group confirms the exact configuration, installation requirements and commercial terms in the quotation. Site dimensions must be checked against the drawing for the ordered version.
Operation and safety
Filtration does not replace local wastewater compliance. Check permitted discharge limits and dispose of contaminated filters and sludge through an appropriate waste service.
Planning your installation
Discuss your existing Drester washer, clean-rinse equipment, available space and drainage with M&H. Filter eQ works with compatible GP10, GP12, GP24 and Flow installations; the correct connection and rinse configuration matter.
Discuss with M&H Sales →DOCUMENTS & SUPPORT
Keep the right details to hand.
Speak with M&H about the selected article, installation, spare parts and operating instructions.
Ask M&H for product support →Brochures and operating documents
- 231399 Manual GP Filter eQ Manual · EN, DE, SE
- Drester GP Filter eQ Brochure Manual · EN
Accessories and replacement parts
WW Drain Hose Extension 5m eQ
Article: 13630
Drain Box eQ
Article: 231143
Retrofit / Transfer Kit eQ
Article: 231140
Flocculation Powder, 5kg
Article: R12076
Filter Bags eQ, 15 pcs
Article: 231210
