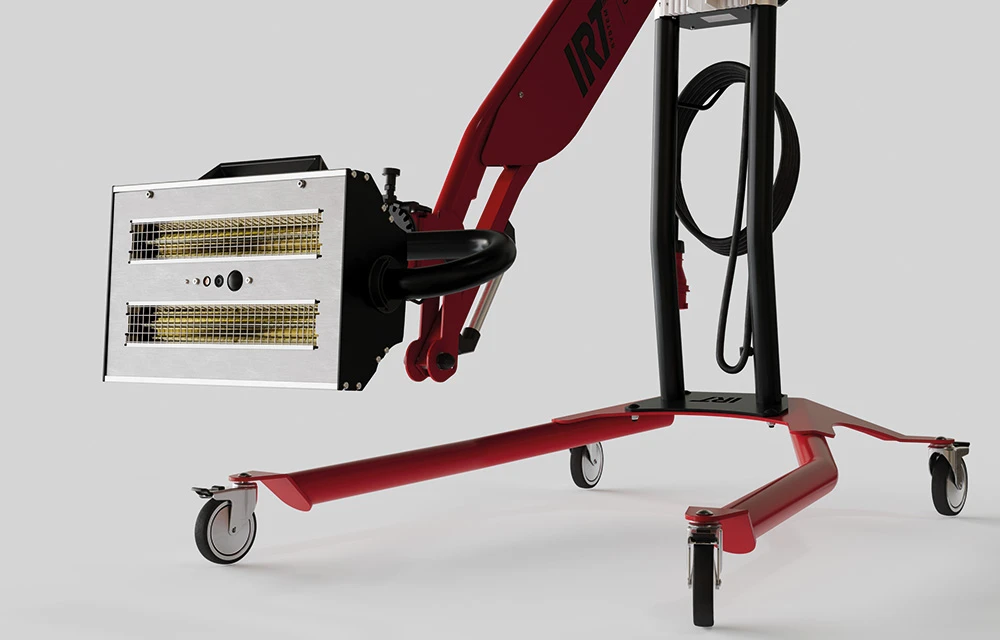

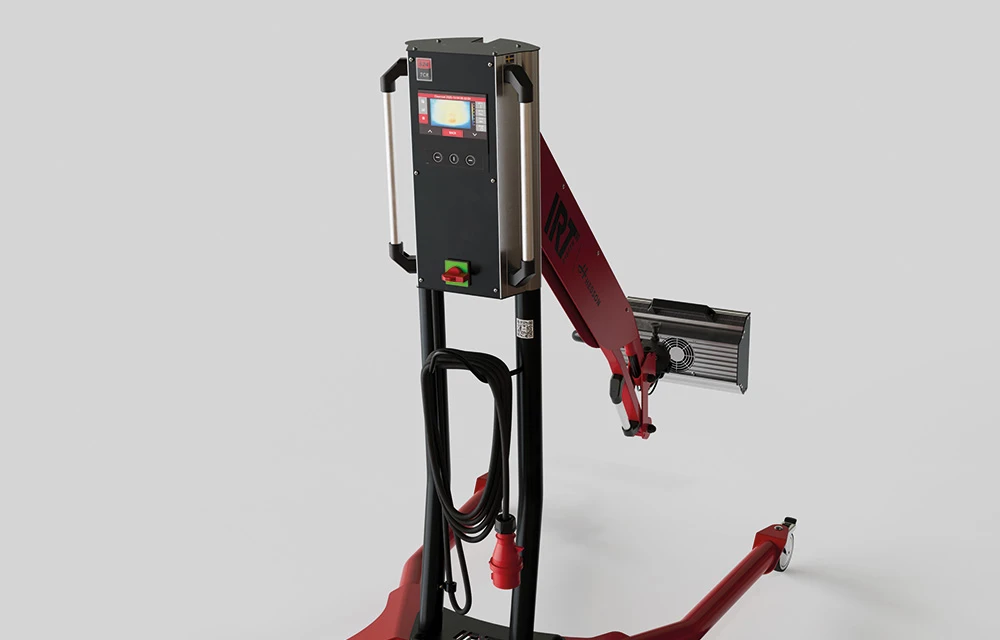

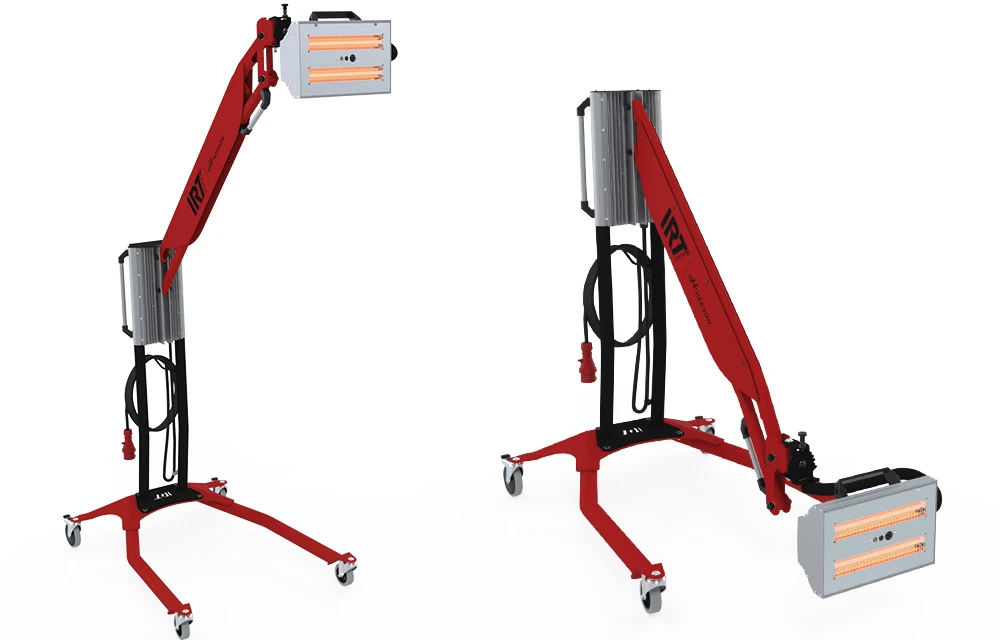

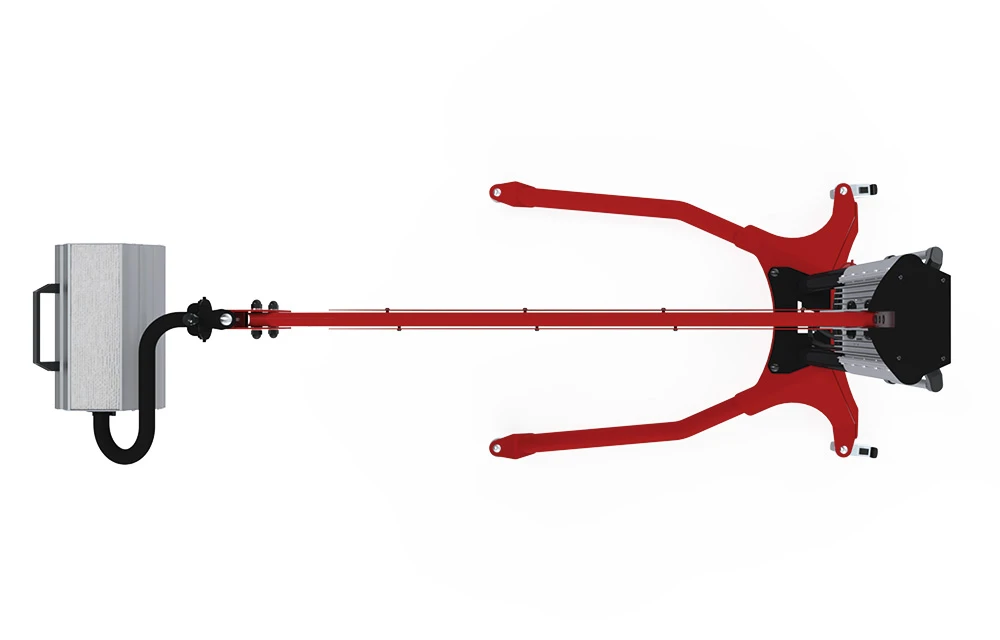

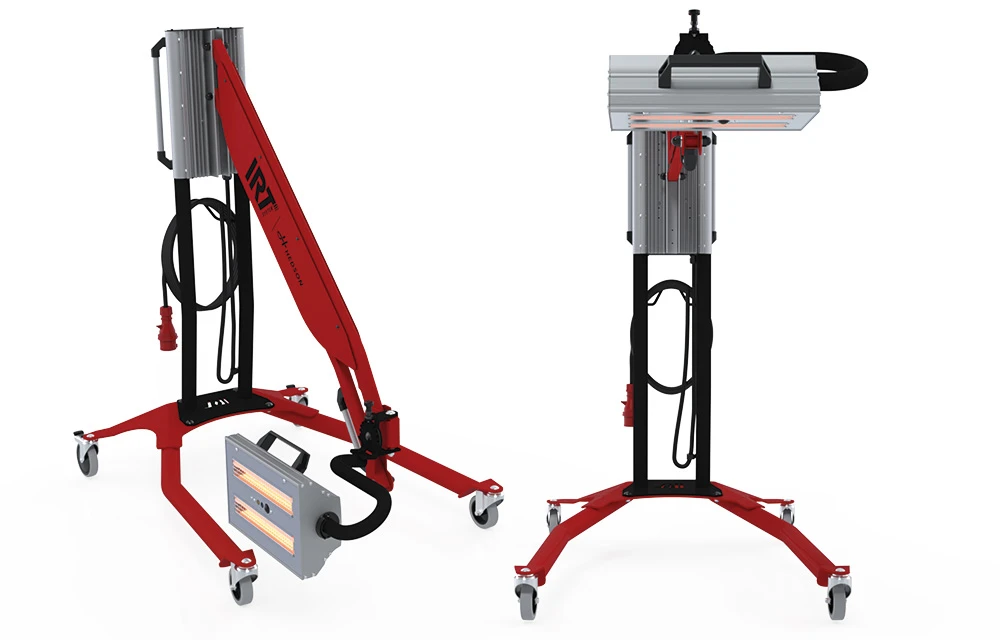

IRT TCR Industrial 524, 525, 528
Controlled heat for industrial applications.

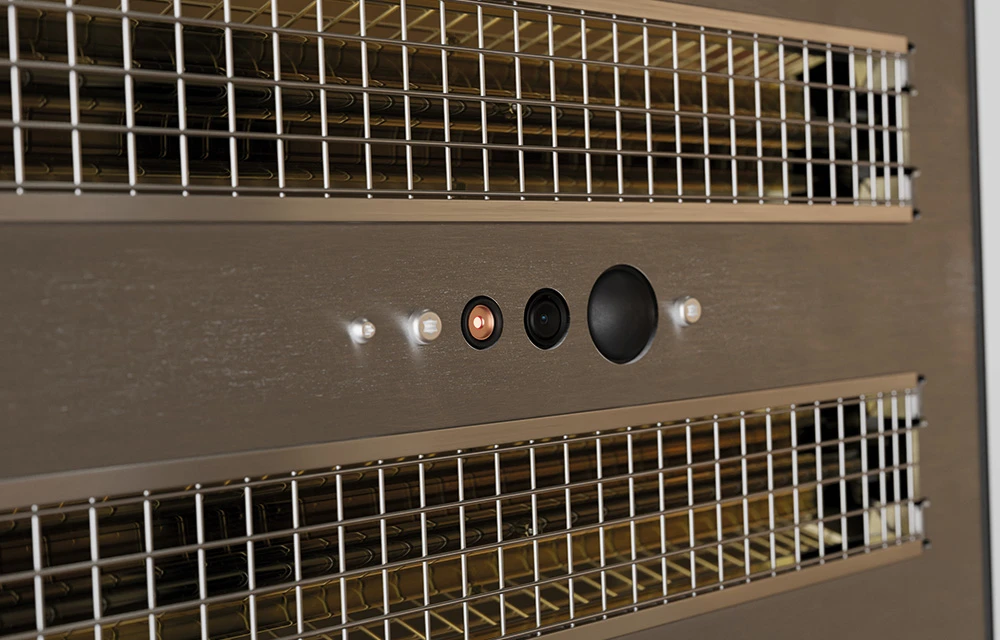

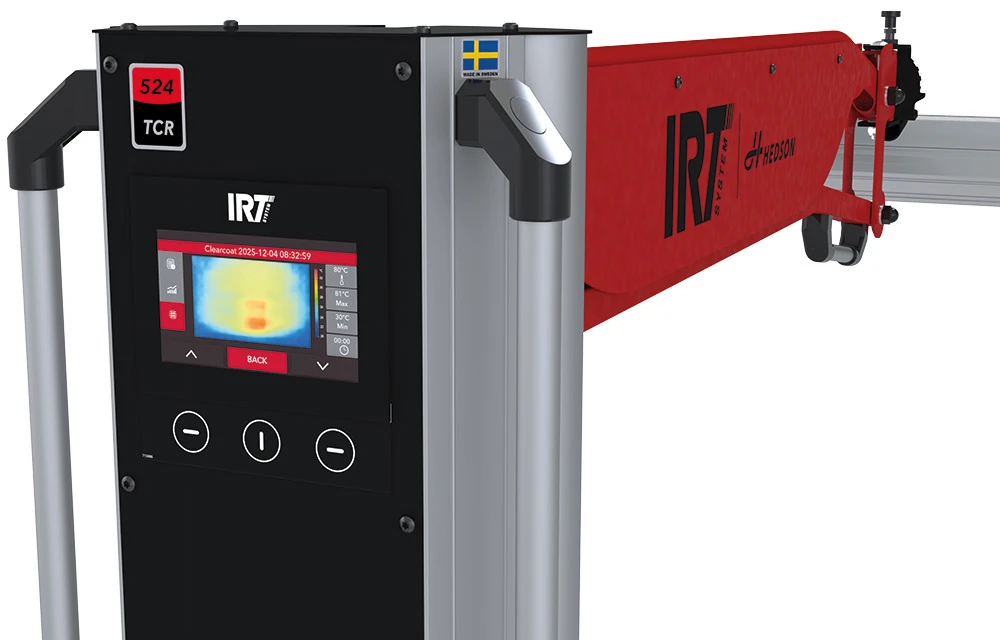

Industrial infrared curing in 524, 525 and 528 configurations. Thermal-camera feedback and radar support positioning and temperature-controlled curing in automotive manufacturing.
IRT TCR Industrial 524, 525, 5281 / 8
- Infrared/UV LED
- Infrared
- Type of Heater
- Mobile Dryer - Infrared
- Heating Process
- Drying paint
IRT
Speak with M&H Sales
YOUR WORKSHOP
Specify the heat for your production process.
Send M&H the material, workpiece dimensions, target temperature, cycle time and power supply. We can help identify the equipment configuration for your application.
Compare 3 configurations
801590 · IRT 524 TCR
| Specification | Value |
|---|---|
| Power supply | 400V, 5P, 3Ph, 4 kW |
| Cassettes | 1 cassette |
| Curing area | 0.4 x 0.3 m |
| Configuration | Floor mobile |
801595 · IRT 525 TCR
| Specification | Value |
|---|---|
| Power supply | 400V, 5P, 3Ph, 4 kW |
| Cassettes | 1 cassette |
| Curing area | 0.5 x 0.3 m |
| Configuration | Floor mobile |
801600 · IRT 528 TCR
| Specification | Value |
|---|---|
| Power supply | 400V, 5P, 3Ph, 6 kW |
| Cassettes | 1 cassette |
| Curing area | 0.8 x 0.3 m |
| Configuration | Floor mobile |
Your enquiry goes to M&H Group. No order or payment is placed here.
TECHNICAL DETAILS
The details that matter.
| Infrared/UV LED | Infrared |
|---|---|
| Type of Heater | Mobile Dryer - Infrared |
| Heating Process | Drying paint |
| Type of Industry | New personal cars |
| Client Process | Manufacturing line |
| How to implement | Stand-alone Mobile |
| What material to heat | Auto parts - A/B/C column |
M&H Group confirms the exact configuration, installation requirements and commercial terms in the quotation. Site dimensions must be checked against the drawing for the ordered version.
Operation and safety
Heating profiles, guarding, ventilation and electrical installation must suit the material and production environment. Follow the relevant equipment instructions.
Planning your installation
Send M&H the material, workpiece dimensions, target temperature, cycle time and power supply. We can help identify the equipment configuration for your application.
Discuss with M&H Sales →DOCUMENTS & SUPPORT
Keep the right details to hand.
Speak with M&H about the selected article, installation, spare parts and operating instructions.
Ask M&H for product support →Brochures and operating documents
- 715804 TCR Operating Manual rev6 Manual · EN, DE, FR, NL, SE, IT, ES
- IRT TCR Brochure EN Brochure · EN
- 524TCR_4kW 400V 3~ 2026-06-11 Electric Schedule · EN
