Infrared drying
Control temperature and drying time around your refinishing process, while retaining a conventional spray-booth workflow.
Refinishing and paint workflow

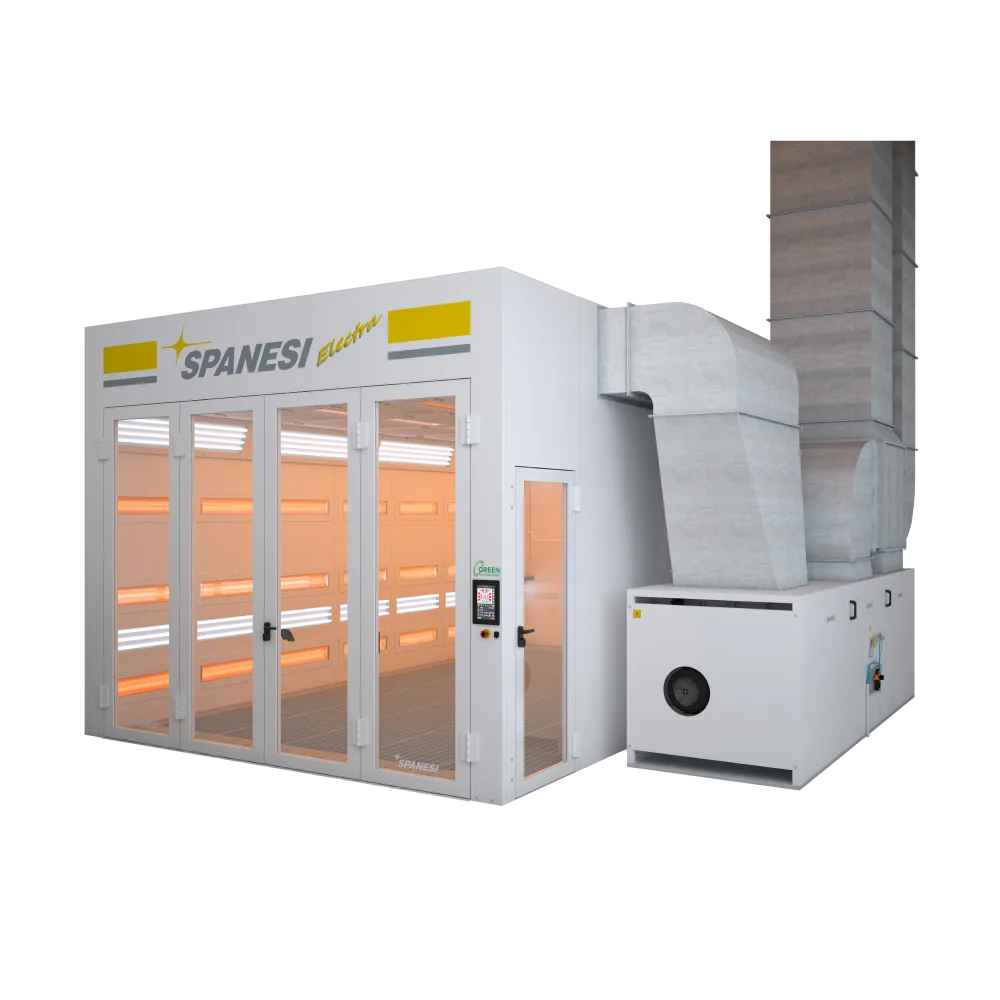

Electra
An electric paint booth with infrared drying, touch-screen controls and energy-use monitoring. Configurable airflow supports the planned refinishing process.
- Heating
- Electric / burner-free
- Drying option
- Infrared drying technology
- Nominal airflow
- 34,000 m3/h standard; 38,000 m3/h optional
M&H Group / Thailand & APAC
This photo could not load. Select another photo or try again.
ELECTRA / PAINT & DRYING
Electric paint and drying. One familiar workflow.
Electra combines a fully electric booth with infrared drying, without a fuel burner. Temperature, drying cycles and airflow are managed from the touch-screen panel.
Adjustable cycle control
Smart phase control and the Touch Screen Panel 4.0 bring booth operation together at one control point.
Energy and cost monitoring
Track consumption and operating costs during use. Actual savings depend on your electricity tariff, workload and cycle settings.
Pressure and filter monitoring
Automatic pressure control balances booth pressure. Filter-obstruction alerts help operators identify when attention is needed.
TECHNICAL DETAILS
Specifications & equipment
- Heating
- Electric / burner-free
- Drying option
- Infrared drying technology
- Monitoring
- Energy and cost tracking
- Pressure
- Automatic pressure balance
- Entrance
- Four-door entrance and side safety door
- Controls
- Touch-screen controls
- Nominal airflow
- 34,000 m3/h standard; 38,000 m3/h optional
- Motor power
- 11+11 kW standard; 15+15 kW optional
- Filter monitoring
- Filter-obstruction alerts
Airflow and motor ratings depend on the selected configuration. Motor power is not total booth power. M&H Sales will confirm the installation dimensions and electrical requirements in your proposal.
Plan Electra around your workshop
Booth size and vehicle access
Tell M&H Sales your largest vehicle, available floor area and ceiling height. We will discuss usable dimensions, door access, base and ramp options for the proposed layout.
Electrical supply and ventilation
Share your available electrical capacity and proposed air-exhaust route. The motor ratings below are not the booth's total electrical demand; the final installation needs a configuration-specific electrical and ventilation plan.
Production and supplied equipment
Tell us your daily workload and coating process. M&H Sales will confirm the booth configuration, optional equipment, installation scope and support in your proposal. Local installation requirements still apply to an electric booth.
SPANESI / ELECTRA
See Electra in operation
Spanesi's original Electra demonstration, 1:58. Equipment shown may differ from the configuration quoted today.
Playing this video loads YouTube content on this page.
Discuss Electra with M&H Sales →
M&H GROUP / THAILAND & APAC
Discuss your Electra project with M&H Sales
Request the booth on its own or add the optional grid trolley. Share your vehicle sizes, workshop location and daily workload with our sales team for a project-specific proposal.
Grate Buddy (91CARRP030) is an optional trolley for moving spray-booth floor grids. Add it below only if required; it is not included by default.
Select a configuration or request advice from our team. Accessories are optional.
