Separate cleaning functions
Automatic wash zones clean gravity-fed spray guns. Manual sinks accommodate tools and spray guns according to the cleaning medium specified for this model.
Drester · HEDSON
Drester Ace Quattro Combo DG4C
Spray-gun cleaning and solvent handling
A 4-station spray-gun cleaner for waterborne and solvent cleaning. Grey RAL 7016 cabinet. Separate wash functions and configuration details are listed for this model.
- Air supply
- 7-12 bar / 110-180 psi
- Cabinet
- Grey RAL 7016
- Washing stations
- 4
Equipment and operation.
Cabinet and wash zones
DG identifies the grey cabinet; DI identifies the stainless-steel cabinet. Cabinet material and the material of individual wash zones are separate specifications.
Ventilation and utilities
Provide the extraction airflow, compressed air and grounding required by the operating manual. Waterborne versions with a -T article include the tap-water valve kit and automatic filtrate evacuation.
TECHNICAL DATA
Drester Ace Quattro Combo DG4C
| Specification | Value |
|---|---|
| Weight (kg) | 100 kg |
| Height (mm) | 1488 mm |
| Air supply | 7-12 bar / 110-180 psi |
| Cabinet | Grey RAL 7016 |
| Washing stations | 4 |
| Cleaning medium | Waterborne and Solvent |
| Manual wash zone | YES |
| Automatic wash zone | YES |
| Can be connected to Drester Recycler through Drester RDX unit | YES |
| Fixed rinse nozzle with clean solvent | YES |
| Automatic cleaning with recirculating solvent | YES |
| Automatic rinsing with clean solvent | YES |
| Flow-through brush with recirculating solvent | YES |
| Flow-through brush with waterborne solution | YES |
| Automatic cleaning with recycled waterborne solution | YES |
| Rinse gun with recycled waterbourne solution | YES |
| Dual filter system for recycled water | YES |
| Automatic agitation when flocculating | YES |
| Air gun for drying | YES |
| Air supply line and funnel for blowout | YES |
| Time extension kit | YES |
| Extractor diameter | 100 mm (3.94") |
| Drum volume | Solvent 20-60 l Aqua 20-25 l |
| Width (mm) | 1190 mm |
| Depth (mm) | 675 mm |
| Required extraction airflow | 360 m3/h |
| Pressure drop at hood | 480 Pa |
| Pump capacity | 10 l/min |
| Liquid pressure | 2 bar |
M&H Group confirms the exact configuration, installation requirements and commercial terms in the quotation. Site dimensions must be checked against the drawing for the ordered version.

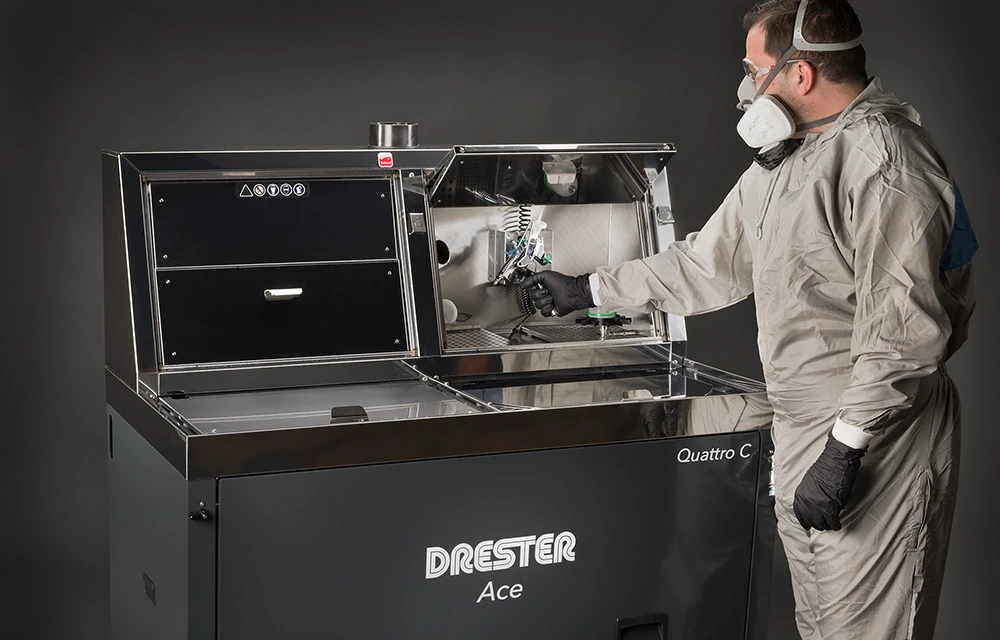

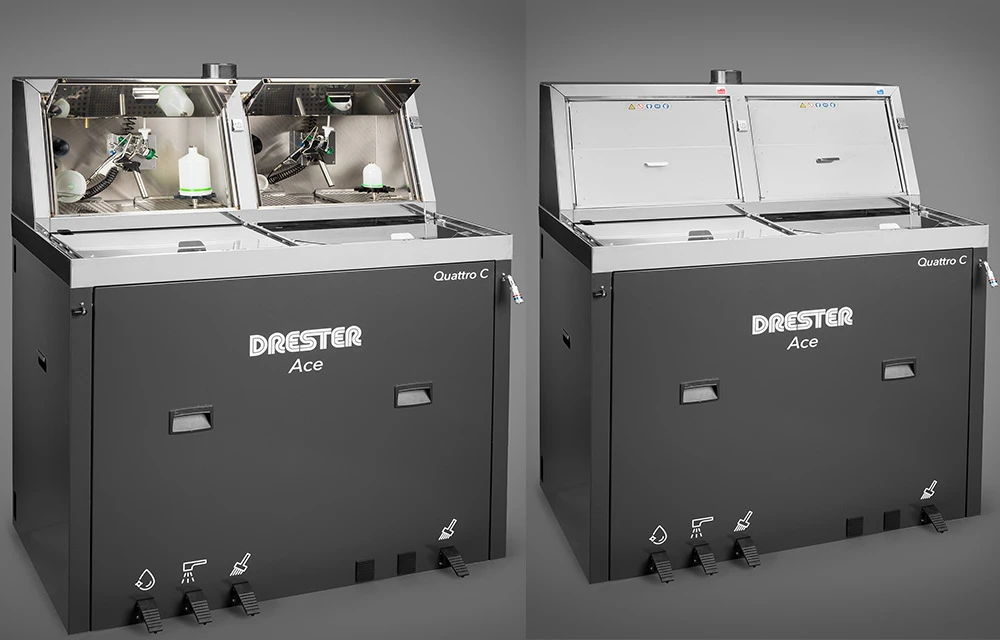

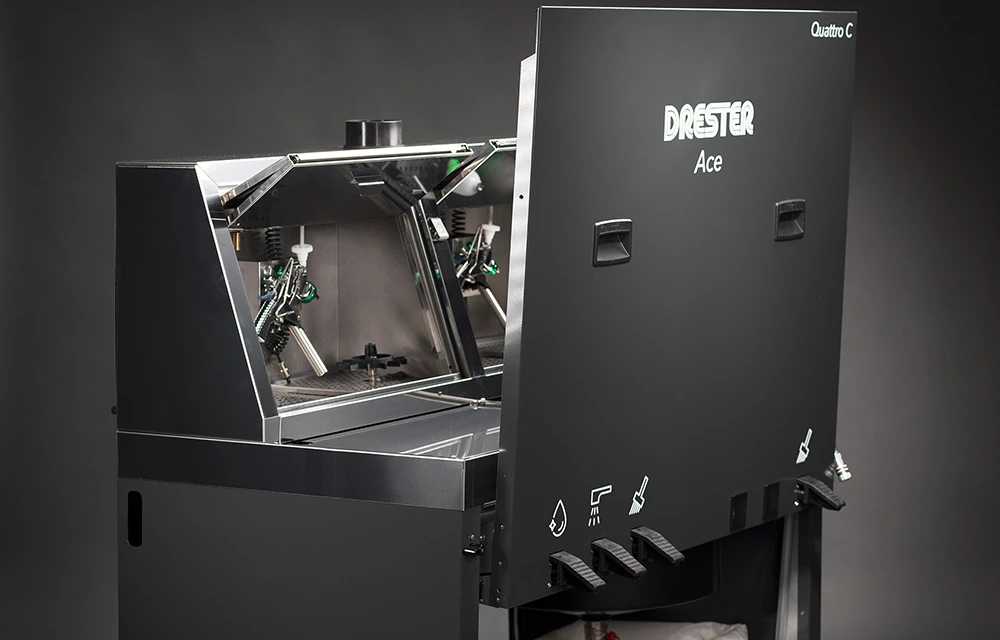

PRODUCT GALLERY
Equipment and details.
M&H GROUP · THAILAND
Model and configuration.
Electrical supply, equipment options and installation vary by model. Regional codes do not establish Thailand compatibility.
Drester Ace Quattro Combo DG4C
A 4-station spray-gun cleaner for waterborne and solvent cleaning. Grey RAL 7016 cabinet. Separate wash functions and configuration details are listed for this model.
DG4C · Drester Ace Quattro Combo DG4C
| Specification | Value |
|---|---|
| Water valve kit | NO |
DG4C-T · Drester Ace Quattro Combo DG4C
| Specification | Value |
|---|---|
| Water valve kit | YES |
