COLLECTING TRAY (converts an 8000-A to 8000-B). Base that collects the solvent in case of leakage or overflow. Maximum diameter of drums: 285 mm.
Article: 6642
Drester · HEDSON
Drester Classic 8000-A
Spray-gun cleaning and solvent handling

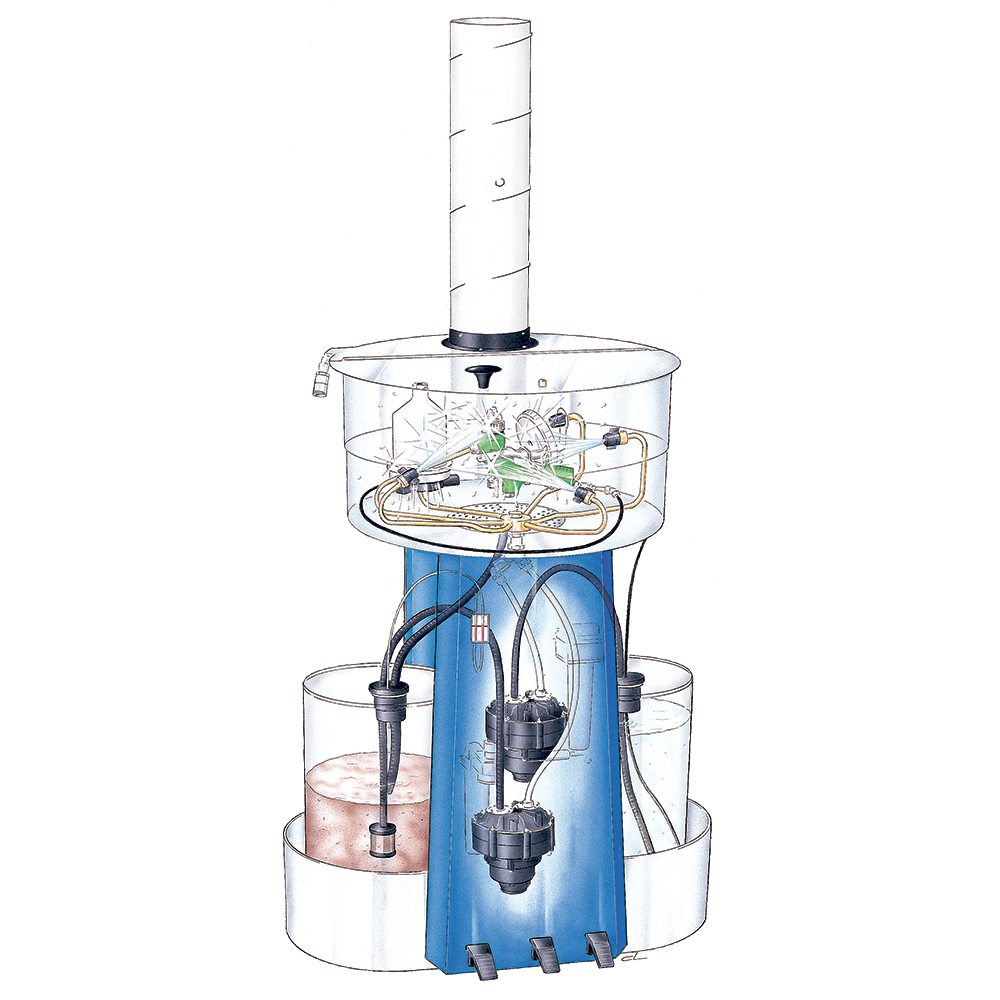

Automatic spray-gun cleaning and rinsing with a manual wash facility. Choose the base-plate or collecting-tray article for the installation.
- Air supply
- 7-12 bar / 110-180 psi
- Cabinet
- Grey RAL 7020
- Washing stations
- 1
TECHNICAL DATA
Drester Classic 8000-A
| Specification | Value |
|---|---|
| Weight (kg) | 33 kg |
| Height (mm) | 990 mm |
| Width / depth (mm) | DIA 563 mm |
| Air supply | 7-12 bar / 110-180 psi |
| Cabinet | Grey RAL 7020 |
| Washing stations | 1 |
| Cleaning medium | Waterborne and Solvent |
| Manual wash zone | YES |
| Automatic wash zone | YES |
| Can be connected to Drester Recycler through Drester RDX unit | YES |
| Fixed rinse nozzle with clean solvent | NO |
| Automatic cleaning with recirculating solvent | YES |
| Automatic rinsing with clean solvent | YES |
| Flow-through brush with recirculating solvent | NO |
| Flow-through brush with waterborne solution | NO |
| Automatic cleaning with recycled waterborne solution | NO |
| Rinse gun with recycled waterbourne solution | NO |
| Dual filter system for recycled water | NO |
| Automatic agitation when flocculating | NO |
| Air gun for drying | NO |
| Air supply line and funnel for blowout | YES |
| Time extension kit | NO |
| Extractor diameter | 125 mm (5") |
M&H Group confirms the exact configuration, installation requirements and commercial terms in the quotation. Site dimensions must be checked against the drawing for the ordered version.
PRODUCT GALLERY
Equipment and details.
M&H GROUP · THAILAND
Model and configuration.
Electrical supply, equipment options and installation vary by model. Regional codes do not establish Thailand compatibility.
Drester Classic 8000-A
Automatic spray-gun cleaning and rinsing with a manual wash facility. Choose the base-plate or collecting-tray article for the installation.
8000-A · Drester Classic 8000-A
| Specification | Value |
|---|---|
| Base plate | YES |
| Collecting tray | NO |
| Stainless wash zone | NO |
| Mixer | NO |
8000-B · Drester Classic 8000-A
| Specification | Value |
|---|---|
| Base plate | NO |
| Collecting tray | YES |
| Stainless wash zone | NO |
| Mixer | NO |
ACCESSORIES & CONSUMABLES
Equipment options.
Items below are separate options or consumables, not a statement of included equipment. Confirm compatibility and package contents with M&H Group.
