Wheel cleaning
Water and plastic granules remove dirt from the wheel. The permitted wheel size and weight are specific to this machine.
Drester · HEDSON

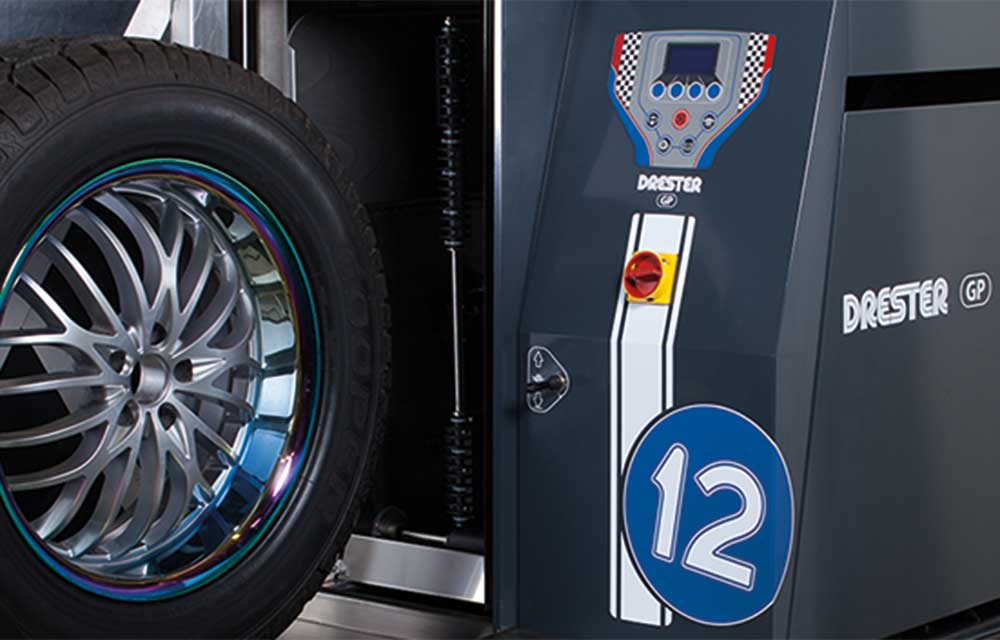

Drester GP12 Silverstone Wheelwasher
Wheel washing and water treatment
Wheel washing with dynamic flush pipes that move across the rim. Package choices cover electrical supply, QuickLift, final rinse and water-treatment equipment.
- Water consumption
- 1 litre/washed wheel + 0.3 litre/wheel for clean rinse
- Air supply
- 8-12 bar (120-174 psi)
- Air flow
- 1000 litre/min. at 7 bar
Equipment and operation.
Handling and rinse options
Loading equipment, clean rinse and water-cleaning kits differ between articles. The configuration list separates these items instead of treating every option as standard.
Water management
Use the appropriate granule filter, treatment consumables and maintenance procedure. Wastewater disposal must comply with local requirements.
TECHNICAL DATA
Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Weight (kg) | 240 + 26 kg |
| Length (mm) | 1153 mm |
| Height (mm) | 1489 mm |
| Width / depth (mm) | 1226 mm |
| Water consumption | 1 litre/washed wheel + 0.3 litre/wheel for clean rinse |
| Air supply | 8-12 bar (120-174 psi) |
| Air flow | 1000 litre/min. at 7 bar |
| Air consumption | 400 litre/wash cycle |
| Water Volume | 310 liter |
| Cleaning time per wheel | Adjustable settings from 25-155 sec settings when delivered 25, 50, 75, 100 sec |
| Heater | YES |
| Dynamic flushpipes/fixed nozzles | Dynamic |
| Min. wheel width in mm | 145 mm |
| Max wheel width (mm) | 360 mm |
| Min wheel diameter (mm) | 540 mm |
| Max wheel diameter (mm) | 860 mm |
| Max wheel weight (kg) | 60 kg |
| Loading automated (trolley loaded) | NO |
M&H Group confirms the exact configuration, installation requirements and commercial terms in the quotation. Site dimensions must be checked against the drawing for the ordered version.
PRODUCT GALLERY
Equipment and details.
M&H GROUP · THAILAND
Model and configuration.
Electrical supply, equipment options and installation vary by model. Regional codes do not establish Thailand compatibility.
Drester GP12 Silverstone Wheelwasher
Wheel washing with dynamic flush pipes that move across the rim. Package choices cover electrical supply, QuickLift, final rinse and water-treatment equipment.
WD12304-AD1KLM · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 400 V, 3-ph, 50 Hz 16A |
| Water Cleaning Kit | YES |
| Clean rinse | YES |
| Quicklift | YES |
WD12304-AD1KL · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 400 V, 3-ph, 50 Hz 16A |
| Water Cleaning Kit | NO |
| Clean rinse | YES |
| Quicklift | YES |
WD12304-DD1KL-50HZ · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 200-230V, 3-ph, 50Hz 30A |
| Water Cleaning Kit | NO |
| Clean rinse | YES |
| Quicklift | YES |
WD12304-AD1LM · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 400 V, 3-ph, 50 Hz 16A |
| Water Cleaning Kit | YES |
| Clean rinse | NO |
| Quicklift | YES |
WD12304-AD1L · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 400 V, 3-ph, 50 Hz 16A |
| Water Cleaning Kit | NO |
| Clean rinse | NO |
| Quicklift | YES |
WD12304-DD1L-50HZ · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 200-230V, 3-ph, 50Hz 30A |
| Water Cleaning Kit | NO |
| Clean rinse | NO |
| Quicklift | YES |
WD12304-DSD1L-60HZ · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 200-230V, 3-ph, 60Hz 30A |
| Water Cleaning Kit | NO |
| Clean rinse | NO |
| Quicklift | YES |
WD12304-AD1KM · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 400 V, 3-ph, 50 Hz 16A |
| Water Cleaning Kit | YES |
| Clean rinse | YES |
| Quicklift | NO |
WD12304-AD1K · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 400 V, 3-ph, 50 Hz 16A |
| Water Cleaning Kit | NO |
| Clean rinse | YES |
| Quicklift | NO |
WD12304-AD1M · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 400 V, 3-ph, 50 Hz 16A |
| Water Cleaning Kit | YES |
| Clean rinse | NO |
| Quicklift | NO |
WD12304-AD1 · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 400 V, 3-ph, 50 Hz 16A |
| Water Cleaning Kit | NO |
| Clean rinse | NO |
| Quicklift | NO |
WD12303-AD1KLM · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 400 V, 3-ph, 50 Hz 16A |
| Water Cleaning Kit | YES |
| Clean rinse | YES |
| Quicklift | YES |
WD12303-AD1KL · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 400 V, 3-ph, 50 Hz 16A |
| Water Cleaning Kit | NO |
| Clean rinse | YES |
| Quicklift | YES |
WD12303-AD1LM · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 400 V, 3-ph, 50 Hz 16A |
| Water Cleaning Kit | NO |
| Clean rinse | NO |
| Quicklift | YES |
WD12303-AD1KM · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 400 V, 3-ph, 50 Hz 16A |
| Water Cleaning Kit | YES |
| Clean rinse | YES |
| Quicklift | NO |
WD12303-AD1K · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 400 V, 3-ph, 50 Hz 16A |
| Water Cleaning Kit | NO |
| Clean rinse | YES |
| Quicklift | NO |
WD12303-AD1M · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 400 V, 3-ph, 50 Hz 16A |
| Water Cleaning Kit | YES |
| Clean rinse | NO |
| Quicklift | NO |
WD12303-AD1 · Drester GP12 Silverstone Wheelwasher
| Specification | Value |
|---|---|
| Power supply | 400 V, 3-ph, 50 Hz 16A |
| Water Cleaning Kit | NO |
| Clean rinse | NO |
| Quicklift | NO |
ACCESSORIES & CONSUMABLES
Equipment options.
Items below are separate options or consumables, not a statement of included equipment. Confirm compatibility and package contents with M&H Group.
Water cleaning Kit
Article: 230375

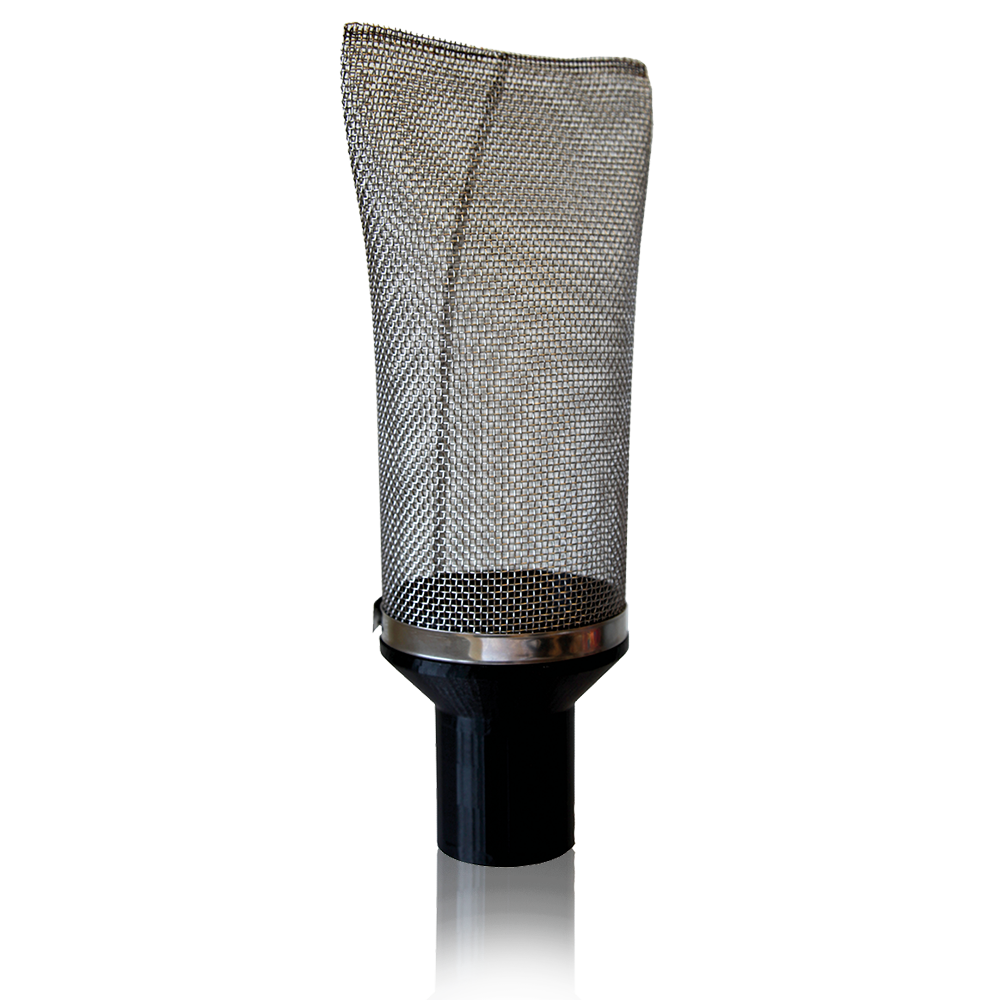

Granule Filter
Article: 230508
Clean rinse Retrofit
Article: 230357

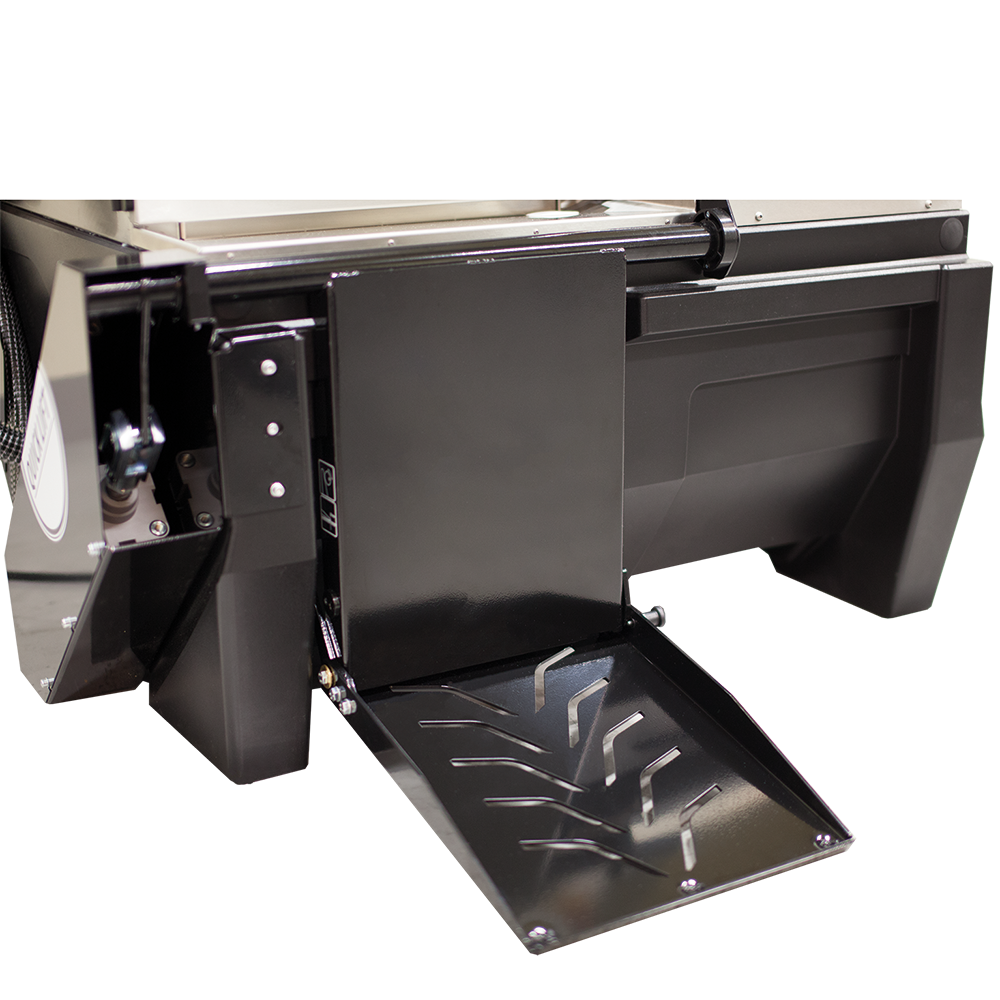

Quicklift
Article: 230315
Double power granules
Article: 230794
Hose Filter
Article: R12038
Basket Filter
Article: R12037
Flocculation Powder, 5kg
Article: R12076
Detergent BIO 291, 5l
Article: BIO-291
