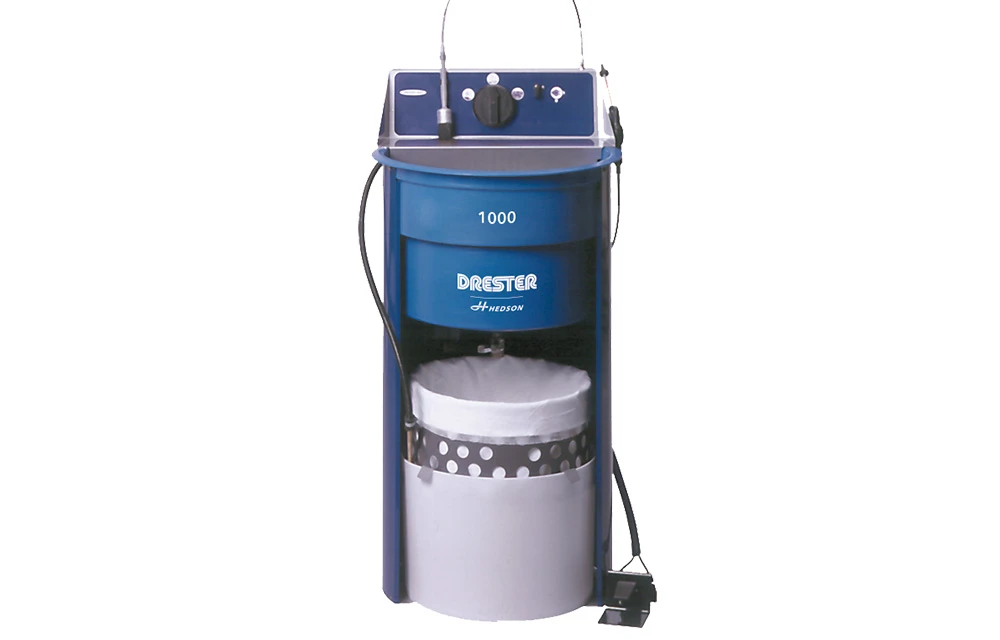

Drester Classic 1000
Manual waterborne spray-gun cleaning with a flow-through brush, rinse gun, flocculation and filtration. A foot-operated workflow leaves both hands free for the spray gun.
Product details →
DRESTER / HEDSON
Drester RDX-8012 Docking Unit
Transfer solvent within a compatible cleaning system.
The RDX-8012 connects compatible Classic 8000 or 3600 cleaners with the Drester 120 recycler. This is the earlier docking unit, not the current RDX2; ask M&H about compatibility and replacement options.
Drester RDX-8012 Docking Unit1 / 1
- Solvent capacity
- 80 L max.
- Air supply
- 3–10 bar
- Pump capacity
- 10 L/min
- Liquid pressure
- 2 bar
Drester
Speak with M&H Sales
YOUR WORKSHOP
Connect cleaning, transfer and recovery.
Give M&H the gun-cleaner model, docking-unit article and solvent specification. The cleaner, docking unit and recycler must be matched as a system; compatibility must not be inferred from the Drester name alone.
Your selected configuration goes directly to M&H Group. No order or payment is placed here.
TECHNICAL DETAILS
The details that matter.
| Solvent capacity | 80 L max. |
|---|---|
| Air supply | 3–10 bar |
| Pump capacity | 10 L/min |
| Liquid pressure | 2 bar |
| Weight | 21 kg |
| Height | 700 mm |
| Maximum diameter | 500 mm |
All technical specifications
| Solvent capacity | 80 L max. |
|---|---|
| Air supply | 3–10 bar |
| Pump capacity | 10 L/min |
| Liquid pressure | 2 bar |
| Weight | 21 kg |
| Height | 700 mm |
| Maximum diameter | 500 mm |
| Sound pressure level | < 70 dB(A) |
M&H Group confirms the exact configuration, installation requirements and commercial terms in the quotation. Site dimensions must be checked against the drawing for the ordered version.
Operation and safety
Use only permitted solvents and follow the installation and operating manuals for the exact equipment. Ground the system, provide the required ventilation and treat concentrated residue as controlled waste.
Planning your installation
Give M&H the gun-cleaner model, docking-unit article and solvent specification. The cleaner, docking unit and recycler must be matched as a system; compatibility must not be inferred from the Drester name alone.
Discuss with M&H Sales →DOCUMENTS & SUPPORT
Keep the right details to hand.
Speak with M&H about the selected article, installation, spare parts and operating instructions.
Ask M&H for product support →Brochures and operating documents
Related equipment.
Full range →

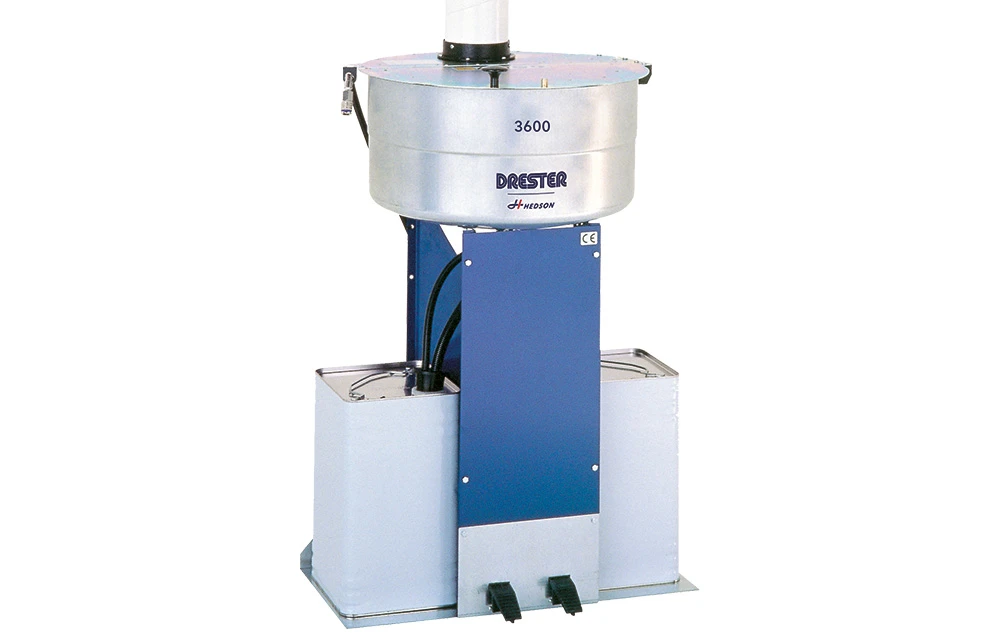

Drester Classic 3600
Automatic cleaning with recirculating solvent and manual rinsing with clean solvent. The 3600 and 3600-INOX wash-zone versions have separate article numbers.
Product details →

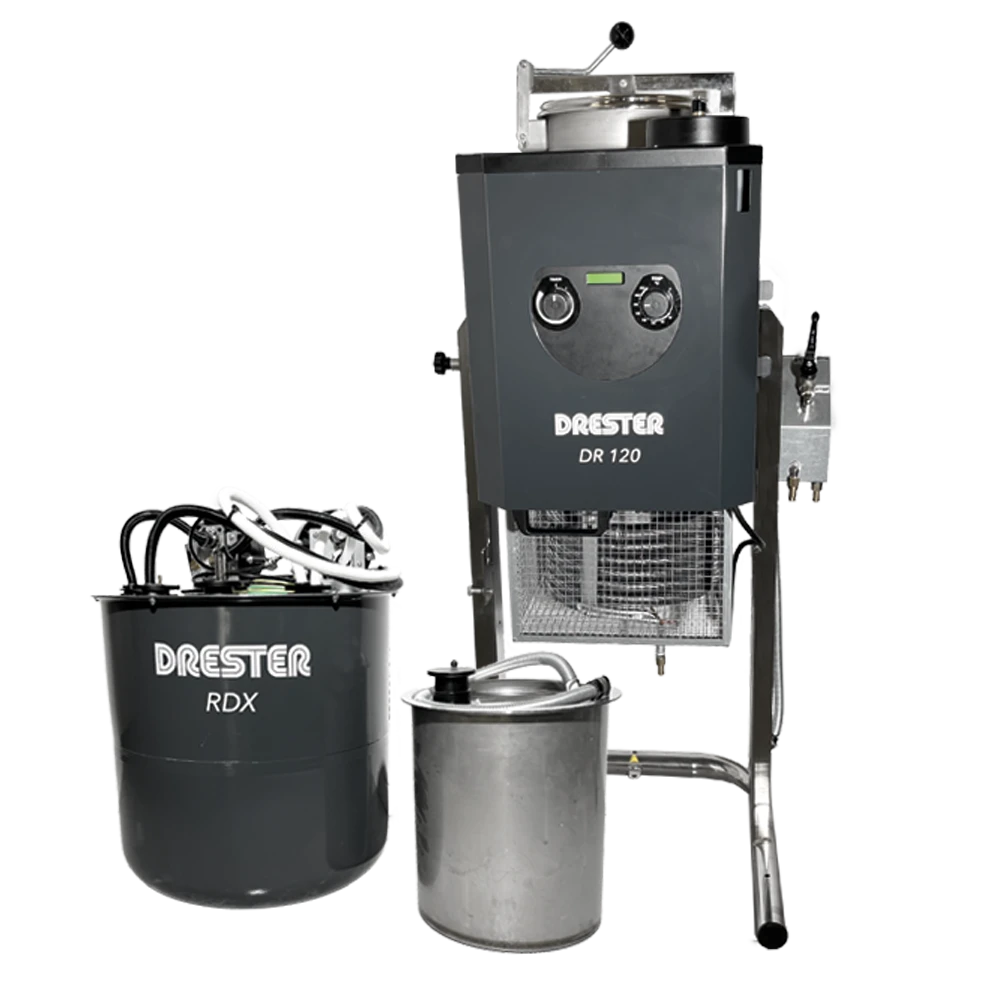

Drester Dynamic Triple
