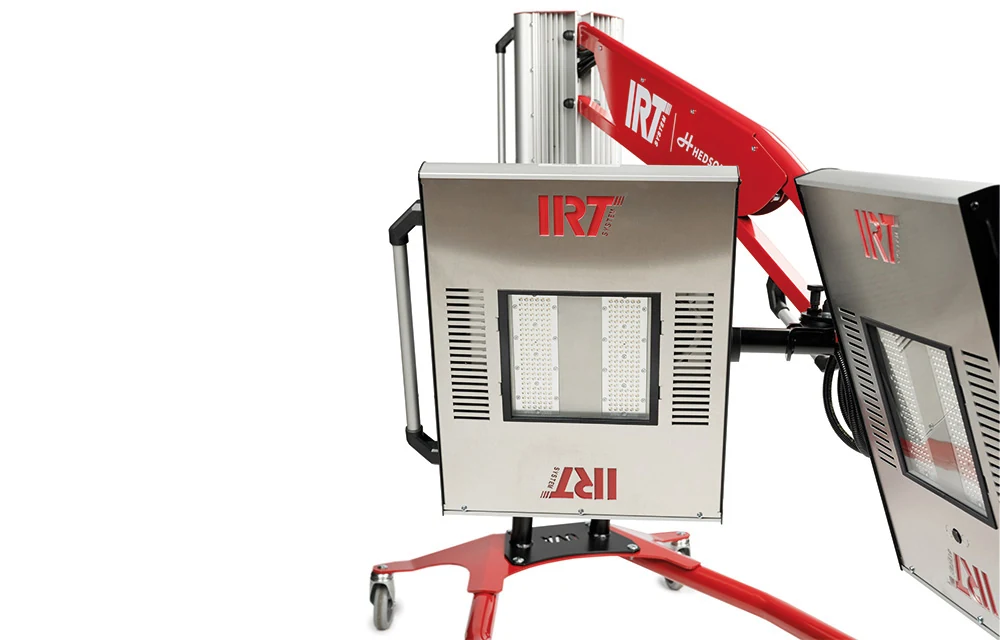

Twin adjustable cassettes
Position the two cassettes for the repair area; the gas-spring arm supports adjustment.
IRT / HEDSON
IRT 4-2 UV LED PcD
Twin-cassette UV LED coverage.
A mobile UV LED dryer for UV-activated refinishing materials, with two adjustable cassettes, laser distance guidance and programmed curing cycles.
IRT 4-2 UV LED PcD twin-cassette machine1 / 3
- Cassettes
- 2
- Curing area at 50 cm, up to
- 2 × 1 m
- Maximum operating ambient temperature
- 40 °C
IRT
Speak with M&H Sales
YOUR WORKSHOP
Start with your coating system.
UV, UVA and infrared are not interchangeable processes. Tell M&H which coating you use and the repair area, then choose the matching equipment and electrical version.
Compare 2 configurations
| Article | Model | Cassettes | Area at 50 cm | Region |
|---|---|---|---|---|
| 197308 | IRT 4-2 UV LED PcD | 2 | 2 × 1 m | EU |
| 197336 | IRT 4-2 UV LED PcD | 2 | 2 × 1 m | NA |
Your enquiry goes to M&H Group. No order or payment is placed here.
AT WORK
Equipment and operation.

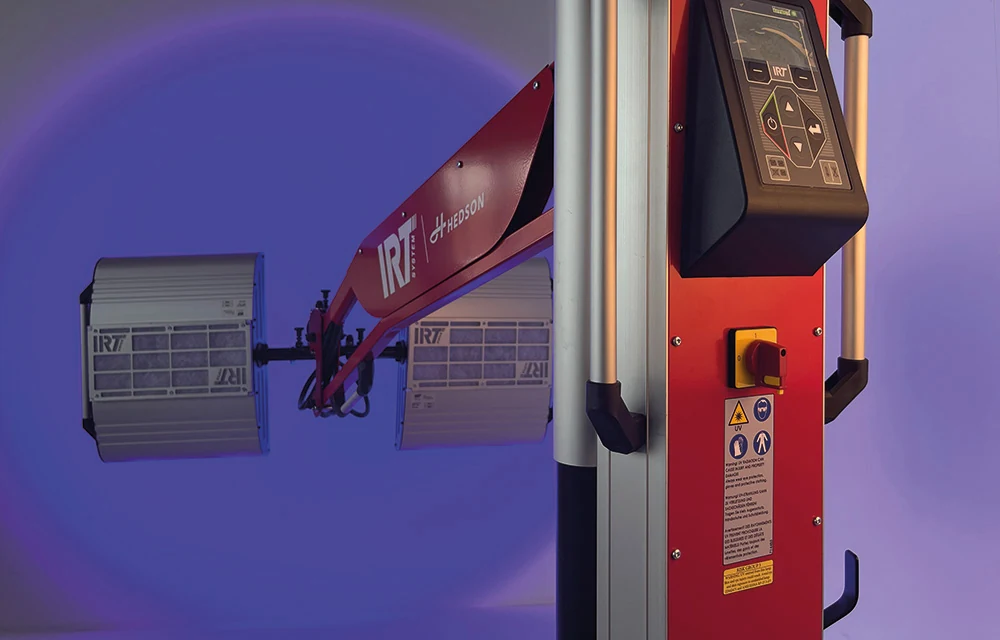

UV-activated coatings
Exposure time depends on material and distance. Follow the coating manufacturer’s data sheet.
Programmed curing
The PcD controller provides timed programmes and laser distance guidance, without thermal-camera feedback.
TECHNICAL DETAILS
The details that matter.
| Heating technology | UV LED |
|---|---|
| Power source | Corded |
| Installation | Floor mobile; not ceiling mounted |
| Cassettes | 2 |
| Curing area at 50 cm, up to | 2 × 1 m |
| Pyrometer / thermal camera | No |
| Distance guidance | Laser |
All technical specifications
| Heating technology | UV LED |
|---|---|
| Power source | Corded |
| Installation | Floor mobile; not ceiling mounted |
| Cassettes | 2 |
| Curing area at 50 cm, up to | 2 × 1 m |
| Pyrometer / thermal camera | No |
| Distance guidance | Laser |
| Energy-use display | No |
| Application area | Preparation area |
| Preprogrammed cycles | Yes |
| Temperature control over time | No |
| Maximum operating ambient temperature | 40 °C |
Regional articles are shown below. M&H Group confirms supply voltage, output, current, frequency and protection requirements before quotation.
Operation and safety
Use only compatible coatings. UV and UVA equipment requires trained operators, suitable eye and skin protection, and a controlled work area. Follow the model's operating manual.
Planning your installation
UV, UVA and infrared are not interchangeable processes. Tell M&H which coating you use and the repair area, then choose the matching equipment and electrical version.
Discuss with M&H Sales →DOCUMENTS & SUPPORT
Keep the right details to hand.
Speak with M&H about the selected article, installation, spare parts and operating instructions.
Ask M&H for product support →Brochures and operating documents
- UV LED PcD operating manual · 715846 Rev. 1 PDF · EN / DE / FR / SE / IT / NL
- UV LED Mobile brochure · Rev. 1 / 03-2025 PDF · EN
