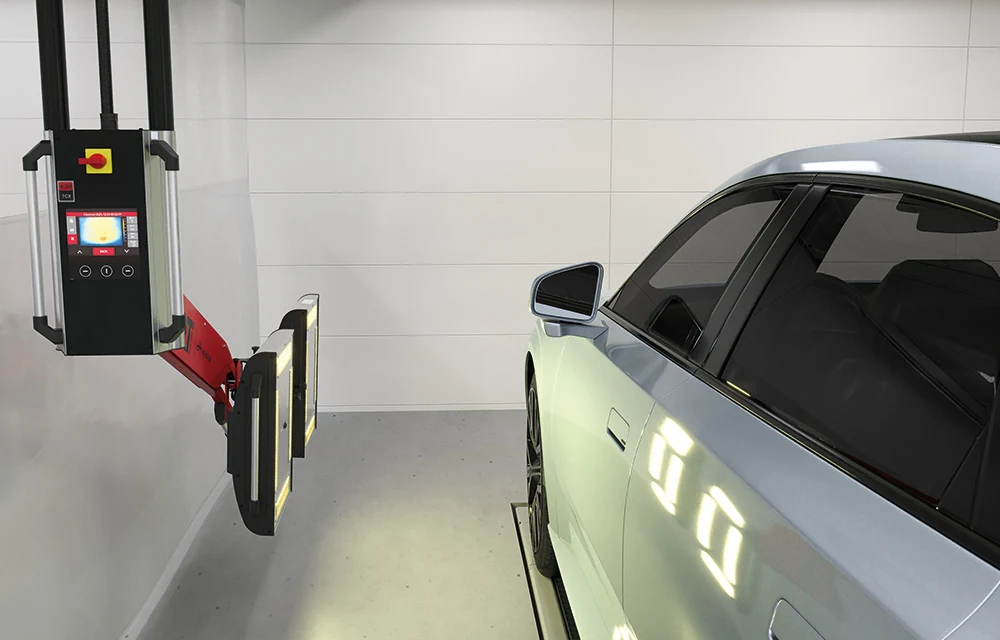

Overhead positioning

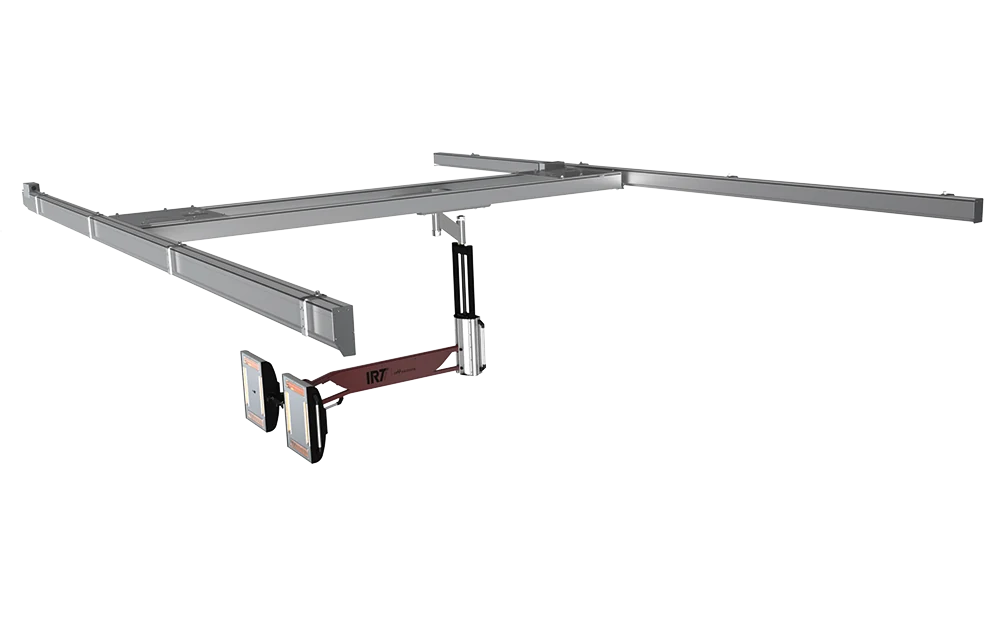

A self-balanced rail arm supports manual positioning around the vehicle.
IRT / HEDSON
IRT 4-20 TCR
Thermal-camera control above the working floor.
Supplier article: 801540

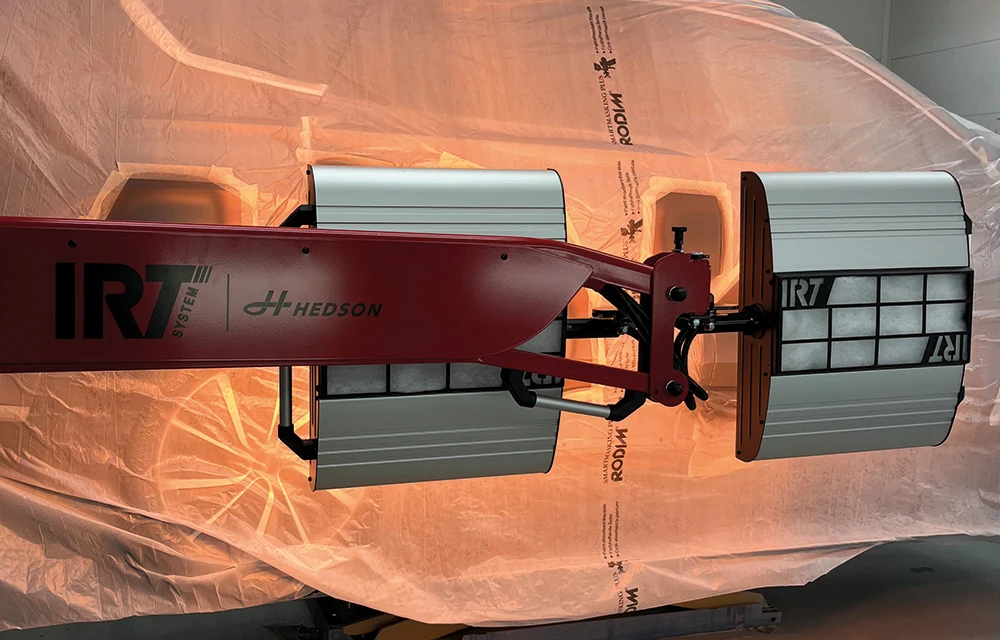

IRT 4-20 TCR installed on a rail system; installation example1 / 7
- Infrared output
- 12 kW
- Supply listed by Hedson
- 400 V · 3 PH · 50/60 Hz · 5-pin · EU
- Curing area at 60 cm
- 2.2 × 1.5 m
- Cassettes
- 2
IRT
Speak with M&H Sales
YOUR WORKSHOP
Plan the reach around your working bay.
Share the bay dimensions, ceiling height, vehicle sizes and available power. M&H will help specify the dryer, rail arrangement and installation for your site.
Your enquiry goes to M&H Group. No order or payment is placed here.
AT WORK
Equipment and operation.

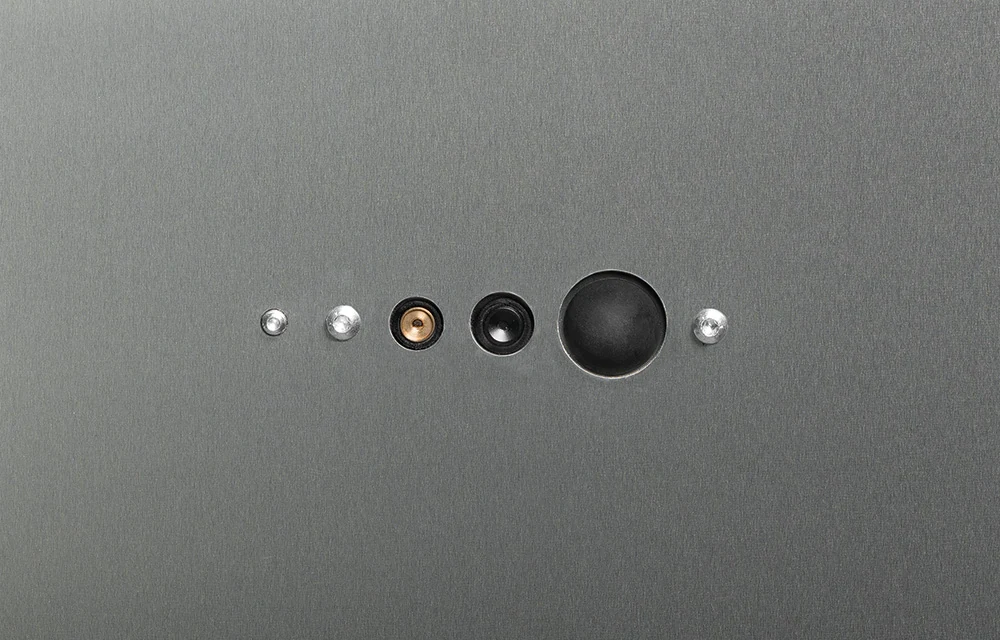

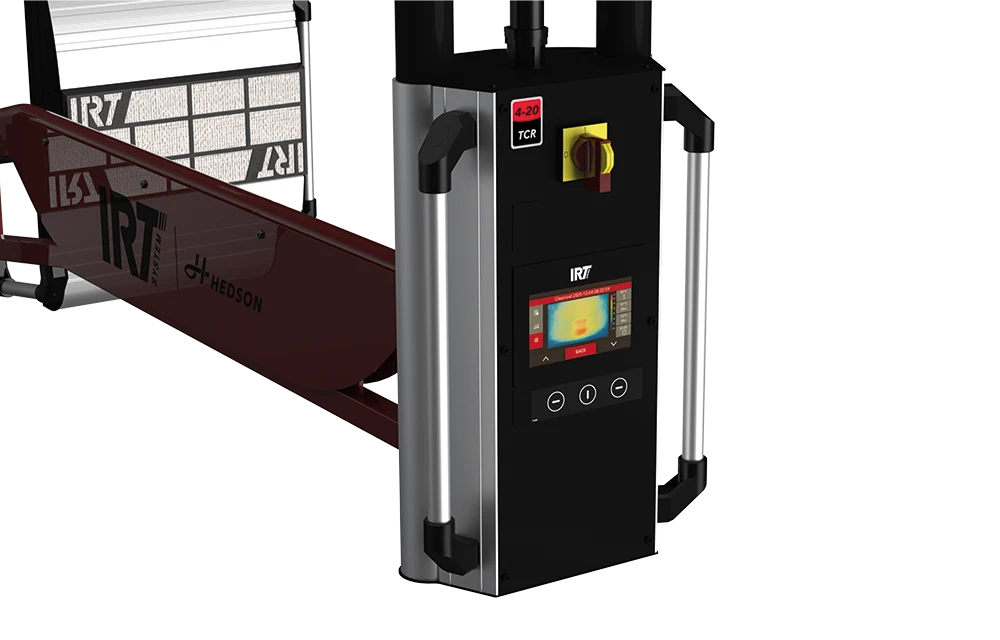

Thermal camera and radar

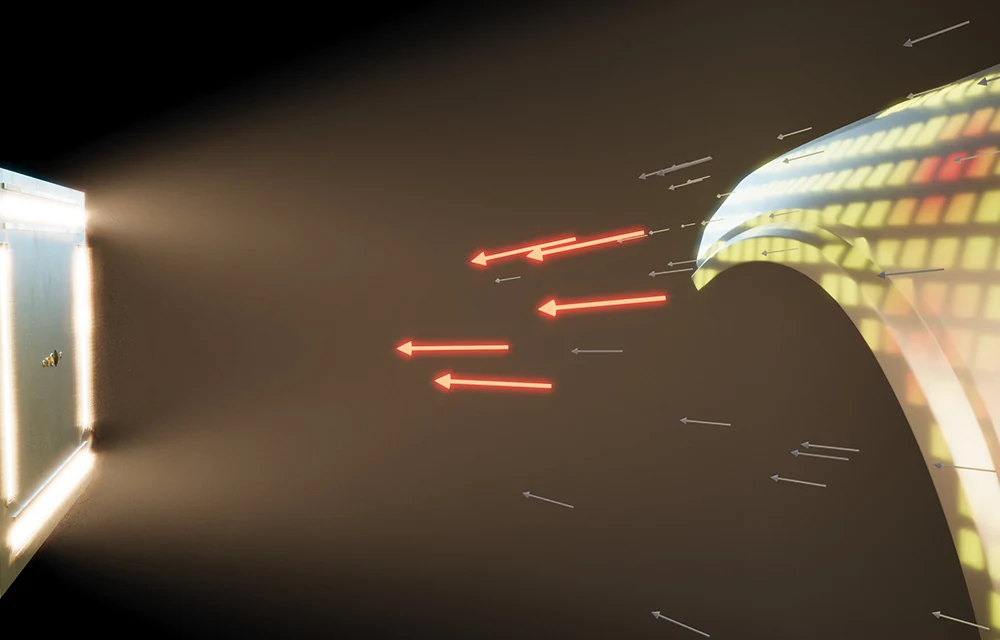

Surface-temperature feedback adjusts infrared output, while radar guides working distance.
768 measurement points
The thermal camera maps 170 × 90 cm and logs the temperature profile.
TECHNICAL DETAILS
The details that matter.
| Infrared output | 12 kW |
|---|---|
| Supply listed by Hedson | 400 V · 3 PH · 50/60 Hz · 5-pin · EU |
| Heating technology | Shortwave infrared |
| Power source | Corded |
| Installation | Overhead rail |
| Handheld / floor mobile | No |
| Curing area at 60 cm | 2.2 × 1.5 m |
All technical specifications
| Infrared output | 12 kW |
|---|---|
| Supply listed by Hedson | 400 V · 3 PH · 50/60 Hz · 5-pin · EU |
| Heating technology | Shortwave infrared |
| Power source | Corded |
| Installation | Overhead rail |
| Handheld / floor mobile | No |
| Curing area at 60 cm | 2.2 × 1.5 m |
| Temperature measurement | Thermal camera |
| Distance guidance | Radar |
| Energy-use display | Yes |
| Automated movement | No |
| Temperature control over time | Yes |
| Cassettes | 2 |
Curing area is measured at 60 cm on black sheet metal. Rail layout, structural fixings and dryer article are specified for each project.
Operation and safety
Rail supports, clearances, electrical supply and safe movement must be checked for the installation. The dryer specification and coating process remain model-specific.
Planning your installation
Share the bay dimensions, ceiling height, vehicle sizes and available power. M&H will help specify the dryer, rail arrangement and installation for your site.
Discuss with M&H Sales →DOCUMENTS & SUPPORT
Keep the right details to hand.
Speak with M&H about the selected article, installation, spare parts and operating instructions.
Ask M&H for product support →Brochures and operating documents
- TCR operating manual · 715804 Rev. 6 PDF · EN / DE / FR / NL / SE / IT / ES
- TCR family brochure PDF · EN
- 750882 · 4-2 TCR 400 V electrical drawing linked by Hedson PDF · EN
