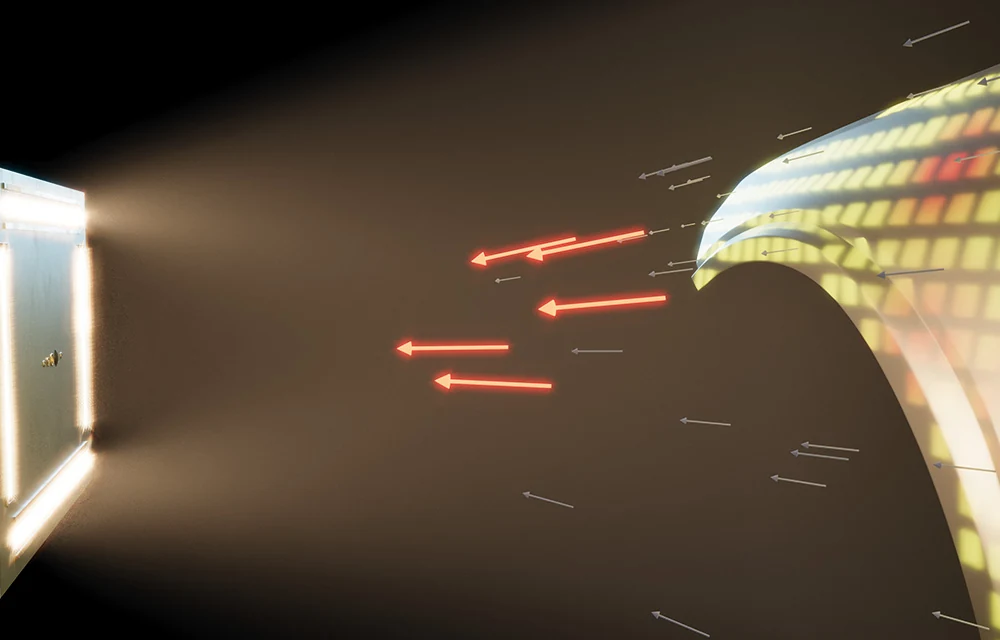

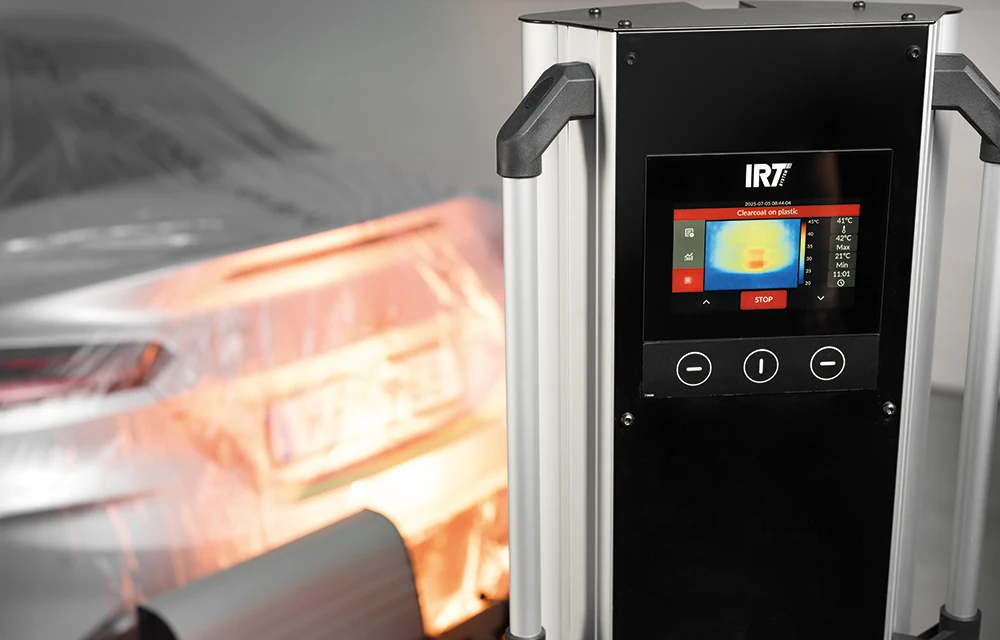

Temperature across the surface.
A 32 × 24 thermal sensor array measures 768 points. The controller follows the five hottest points and adjusts infrared output during the curing cycle.
IRT / HEDSON

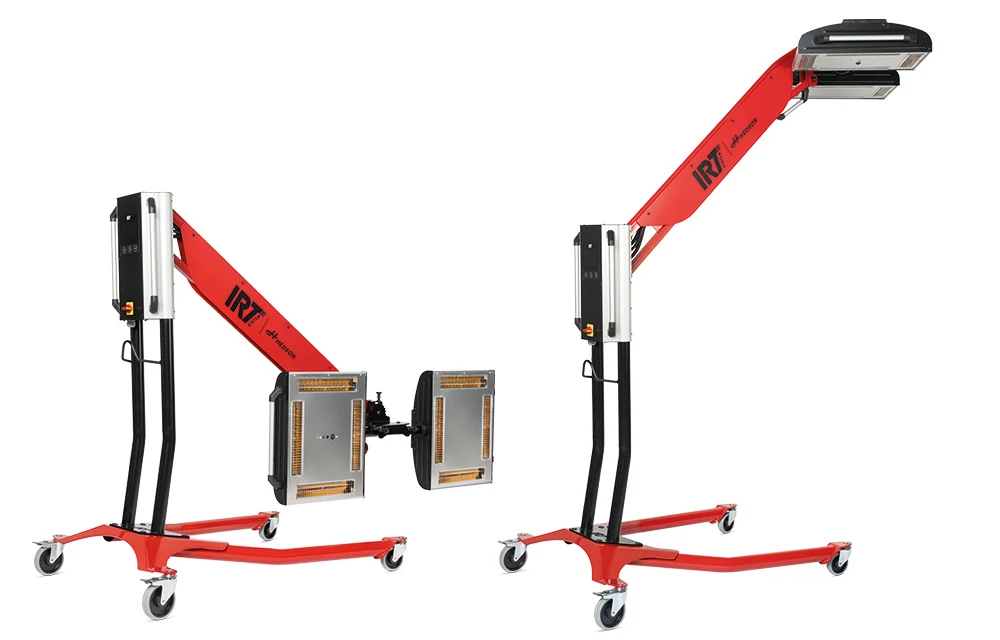

IRT 4-2 TCR
Thermal-camera control. Twin cassettes.

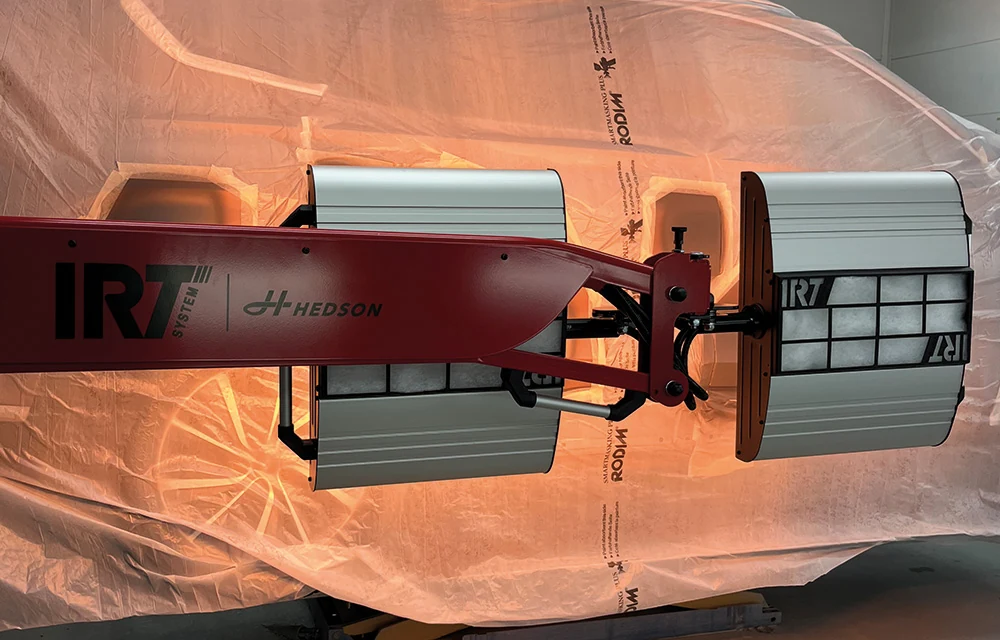

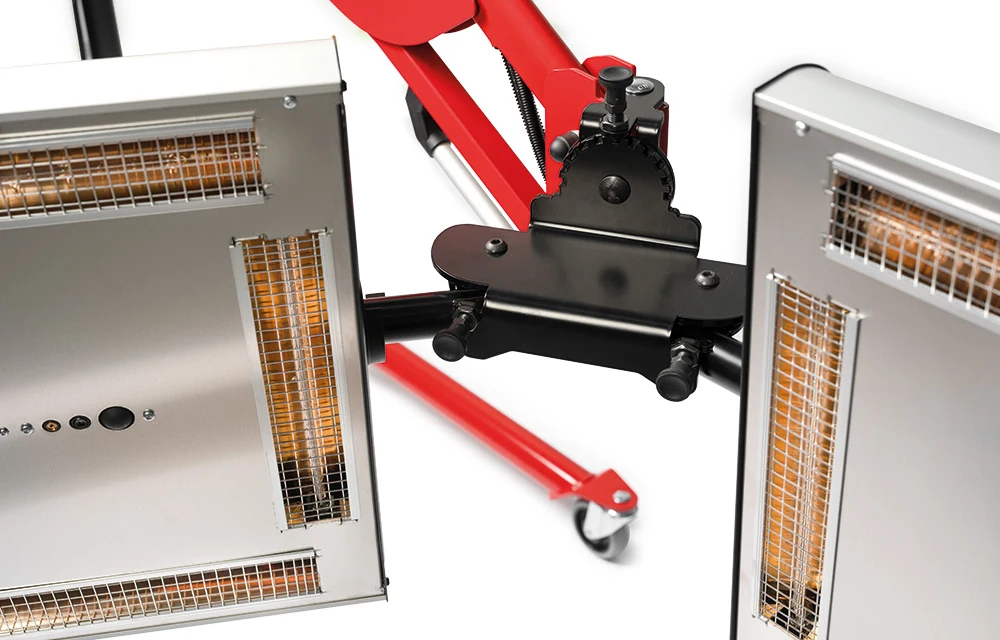

Twin-cassette infrared curing with thermal-camera temperature control, radar distance guidance and a 2.2 × 1.5 m curing area.
IRT 4-2 TCR · Hedson1 / 12
- Infrared output
- 12 kW
- Infrared cassettes
- 2
- Curing area at 60 cm¹
- 2.2 × 1.5 m
- Weight
- 62 kg
IRT
Speak with M&H Sales
YOUR WORKSHOP
Choose the coverage and electrical version.
Select the article for your required cassette arrangement and electrical supply. M&H can help compare the single- and twin-cassette models for your repair work.
Compare 7 configurations
| Article | Output | Supply | Connection | Frequency | Region |
|---|---|---|---|---|---|
| 801500 | 12 kW | 400 V · 3 PH | 5-pin | 50/60 Hz | EU |
| 801504 | 12 kW | 400 V · 3 PH | 4-pin | 50/60 Hz | EU |
| 801502 | 12 kW | 230 V · 3 PH | — | 50/60 Hz | EU |
| 801505 | 12 kW | 200 V · 3 PH | 4P | 50/60 Hz | JP |
| 801503 | 12 kW | 400 V · 3 PH | — | 50/60 Hz | AUS |
| 801506 | 12 kW | 230 V · 1 PH | — | 50/60 Hz | NA |
| 801507 | 12 kW | 230 V · 3 PH | — | 50/60 Hz | NA |
Your enquiry goes to M&H Group. No order or payment is placed here.
AT WORK
Equipment and operation.

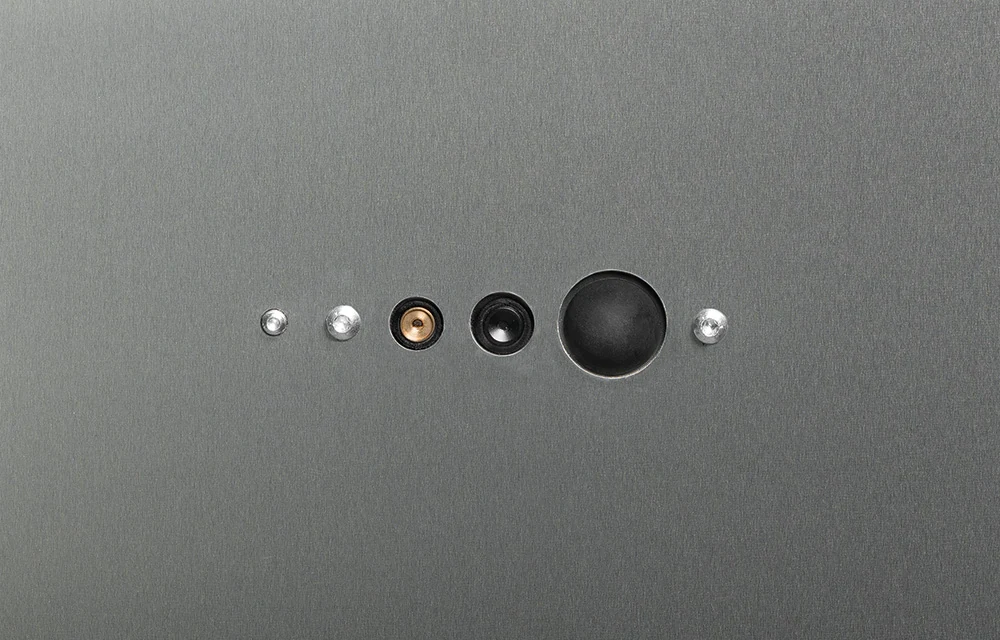

Distance measured by radar.
Radar distance guidance helps position the dryer. The display and an audible signal indicate when the selected distance is reached.

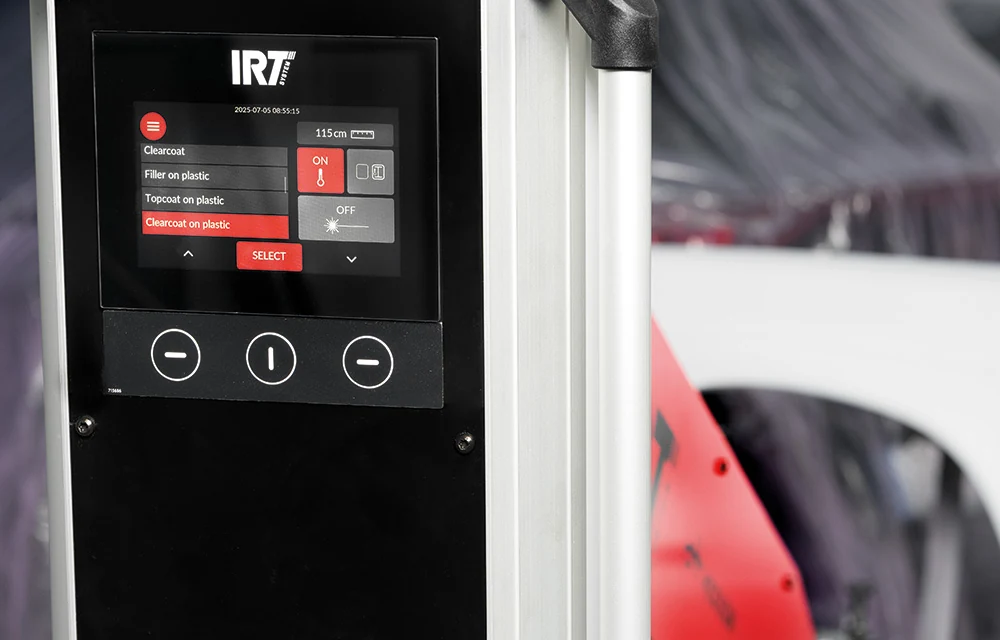

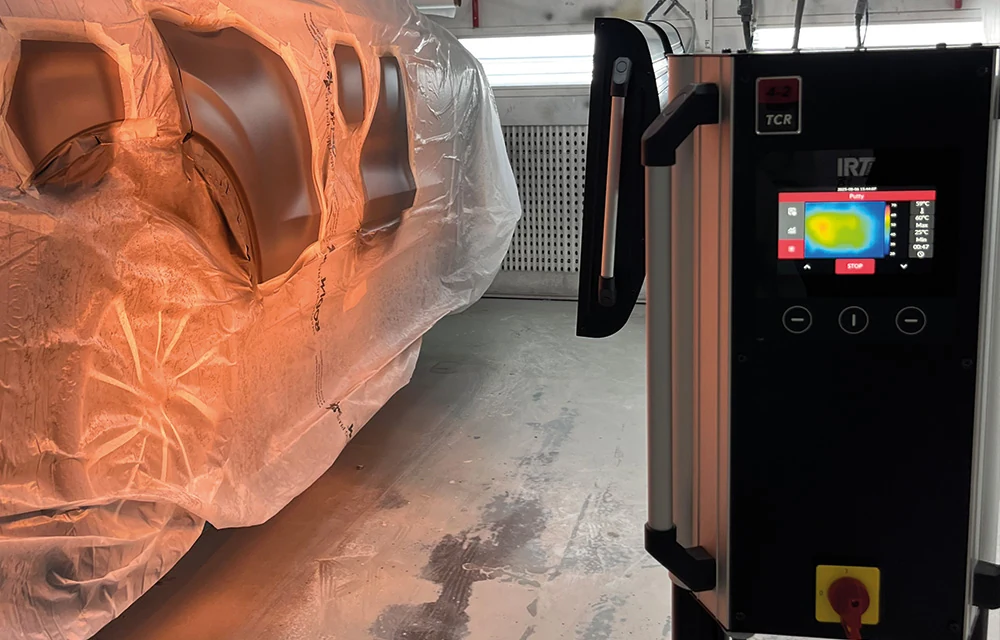

The curing cycle, on screen.
Touchscreen programmes cover putty, filler, basecoat, clearcoat and plastic work. Temperature profiles are logged, with process progress and energy use displayed.
TECHNICAL DETAILS
The details that matter.
| Infrared output | 12 kW |
|---|---|
| Infrared cassettes | 2 |
| Curing area at 60 cm¹ | 2.2 × 1.5 m |
| Weight | 62 kg |
| Listed length² | 1,230 mm |
| Listed height² | 2,500 mm |
| Heating technology | Shortwave infrared |
All technical specifications
| Infrared output | 12 kW |
|---|---|
| Infrared cassettes | 2 |
| Curing area at 60 cm¹ | 2.2 × 1.5 m |
| Weight | 62 kg |
| Listed length² | 1,230 mm |
| Listed height² | 2,500 mm |
| Heating technology | Shortwave infrared |
| Power source | Corded electrical supply |
| Installation | Floor mobile; not ceiling mounted |
| Handheld | No |
| Temperature measurement | Thermal camera |
| Distance guidance | Radar |
| Energy-use display | Yes |
| Application area | Preparation zone |
| Automated movement | No |
| Temperature control over time | Yes |
| Electrical configurations | 7 regional variants |
¹ Curing area measured at 60 cm on black sheet metal. Actual curing settings depend on the coating and substrate.
Operation and safety
Thermal feedback supports process control; the coating specification, working distance and operating manual still determine the correct curing setup.
Planning your installation
Select the article for your required cassette arrangement and electrical supply. M&H can help compare the single- and twin-cassette models for your repair work.
Discuss with M&H Sales →DOCUMENTS & SUPPORT
Keep the right details to hand.
Speak with M&H about the selected article, installation, spare parts and operating instructions.
Ask M&H for product support →Brochures and operating documents
- Product brochure PDF · EN
- Operating manual · Rev. 6 PDF · EN / DE / FR / NL / SE / IT / ES
- Assembly instructions PDF · EN / DE / FR / NL / SE / IT / ES
- IRT 4-2 TCR: 400 V 3 PH electrical drawing PDF · EN
Product video
IRT TCR
The two mobile models.
IRT 4-1 TCR
Single-cassette infrared curing with thermal-camera temperature control, radar distance guidance and a 1.1 × 1.5 m curing area.
Product details →IRT 4-2 TCR
Twin-cassette infrared curing with thermal-camera temperature control, radar distance guidance and a 2.2 × 1.5 m curing area.
