Temperature across the surface.

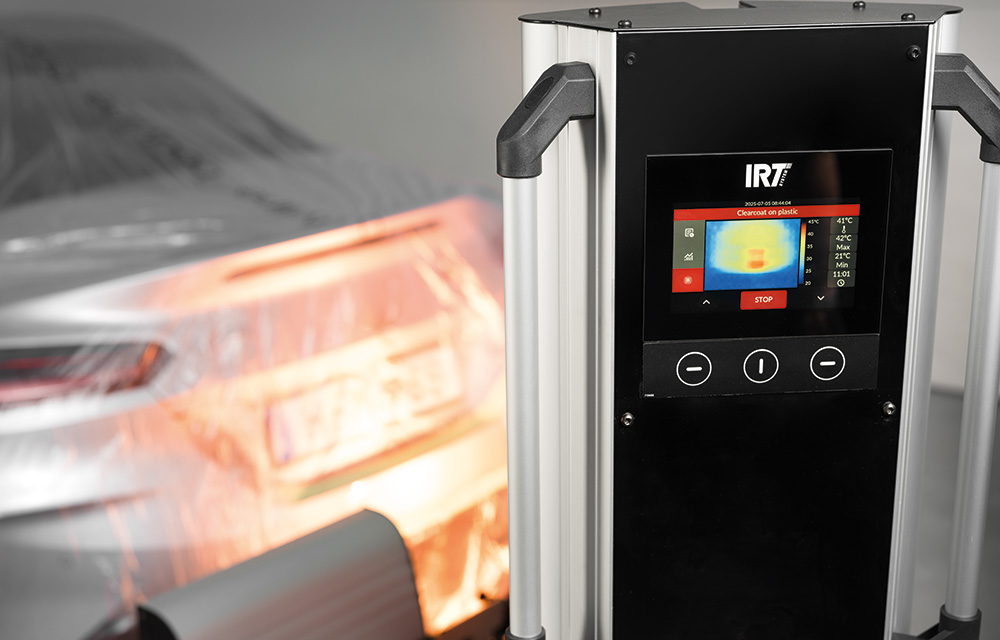

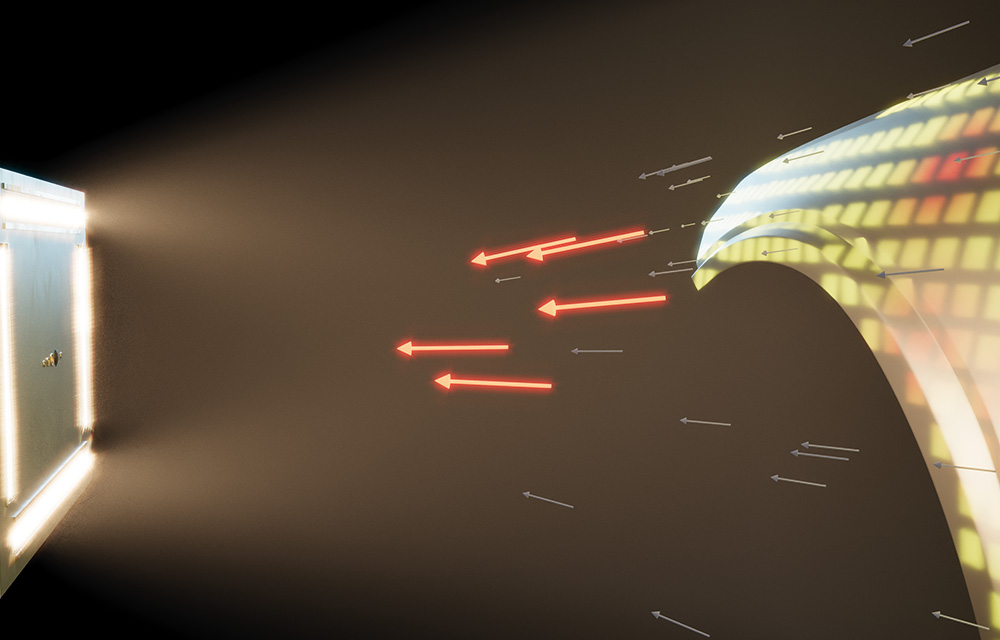

A 32 × 24 thermal sensor array measures 768 points. The controller follows the five hottest points and adjusts infrared output during the curing cycle.
THERMAL CAMERA + RADAR
IRT 4-1 & 4-2 TCR
Infrared curing. Surface control.

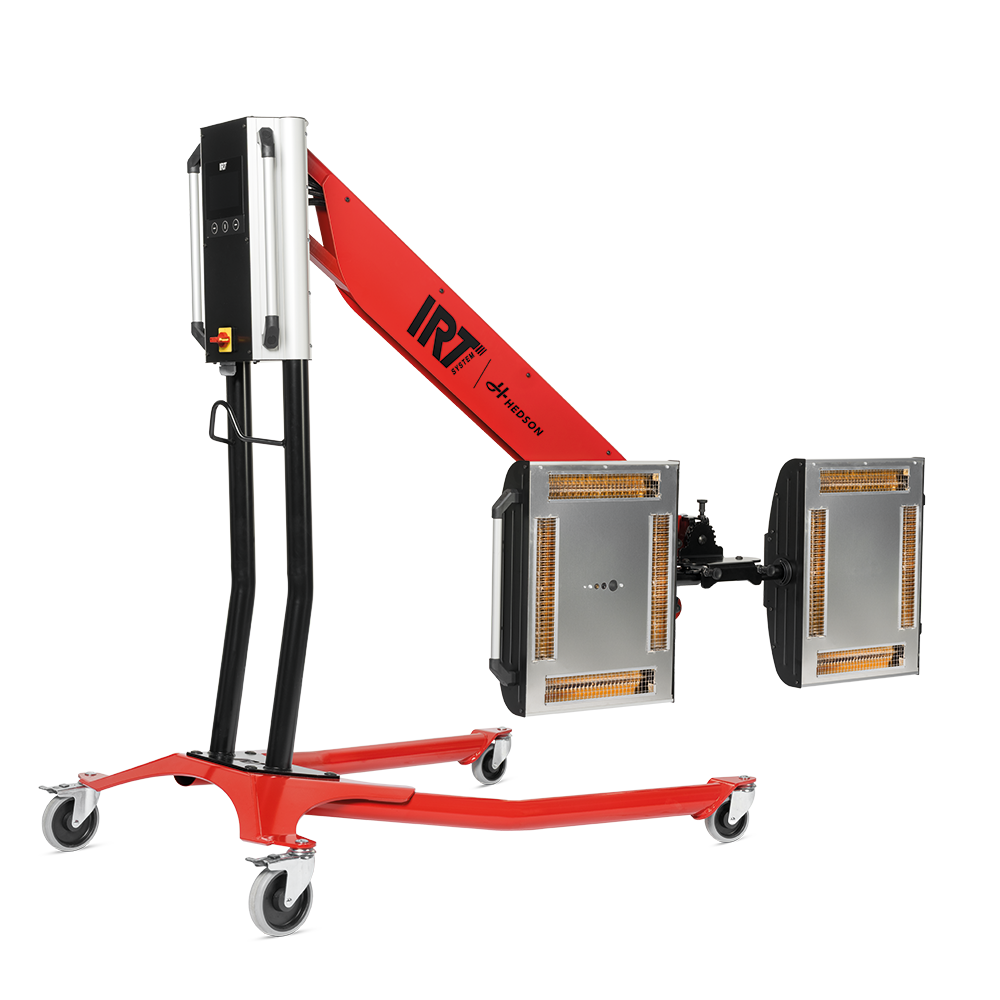

Two mobile infrared dryers. Thermal-camera temperature control and radar distance guidance, with one or two cassettes to suit the repair area.
- Infrared output
- 6 / 12 kW
- Cassettes
- 1 / 2
- Thermal camera + radar
- TCR
TEMPERATURE. DISTANCE. CONTROL.
See the heat. Control the process.
For putty, filler, basecoat and topcoat work with waterborne or solvent-based systems, following the coating manufacturer's curing instructions.
02
Distance measured by radar.
Radar distance guidance helps position the dryer. The display and an audible signal indicate when the selected distance is reached.
03
The curing cycle, on screen.

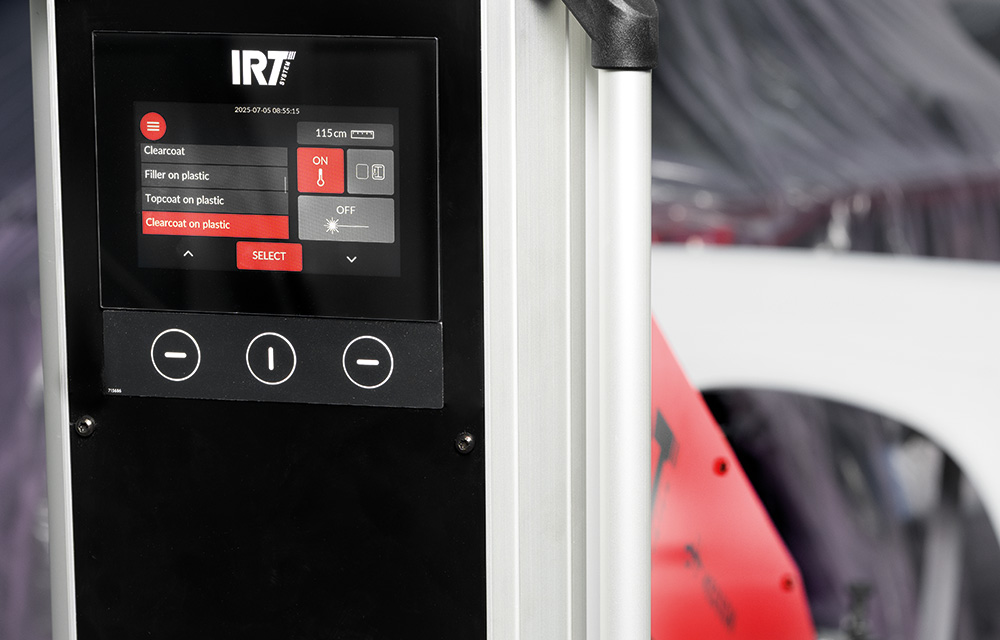

Touchscreen programmes cover putty, filler, basecoat, clearcoat and plastic work. Temperature profiles are logged, with process progress and energy use displayed.
TECHNICAL DATA
One cassette or two?
Curing area, temperature control and electrical supply for the selected model.
| Specification | IRT 4-1 TCR | IRT 4-2 TCR |
|---|---|---|
| Infrared output | 6 kW | 12 kW |
| Infrared cassettes | 1 | 2 |
| Curing area at 60 cm¹ | 1.1 × 1.5 m | 2.2 × 1.5 m |
| Weight | 53 kg | 62 kg |
| Listed length² | 1,230 mm | 1,230 mm |
| Listed height² | 2,500 mm | 2,500 mm |
| Heating technology | Shortwave infrared | Shortwave infrared |
| Power source | Corded electrical supply | Corded electrical supply |
| Installation | Floor mobile; not ceiling mounted | Floor mobile; not ceiling mounted |
| Handheld | No | No |
| Temperature measurement | Thermal camera | Thermal camera |
| Distance guidance | Radar | Radar |
| Energy-use display | Yes | Yes |
| Application area | Preparation zone | Preparation zone |
| Automated movement | No | No |
| Temperature control over time | Yes | Yes |
| Electrical configurations | 7 regional variants | 7 regional variants |
¹ Curing area measured at 60 cm on black sheet metal. Actual curing settings depend on the coating and substrate.
² Dimensions listed on Hedson's product page. Working height and footprint vary with cassette position; refer to the brochure drawings when planning space.
PRODUCT GALLERY
The equipment. In detail.
Product photography and technical illustrations from Hedson.
ELECTRICAL CONFIGURATIONS
Match the article to your supply.
Hedson's regional configurations are listed below. M&H Group confirms Thailand availability, electrical compatibility and the final specification before quotation.
| Article | Model | Output | Supply | Connection | Frequency | Region |
|---|---|---|---|---|---|---|
| 801520 | IRT 4-1 TCR | 6 kW | 400 V · 3 PH | 5-pin | 50/60 Hz | EU |
| 801524 | IRT 4-1 TCR | 6 kW | 400 V · 3 PH | 4-pin | 50/60 Hz | EU |
| 801522 | IRT 4-1 TCR | 6 kW | 230 V · 3 PH | — | 50/60 Hz | EU |
| 801523 | IRT 4-1 TCR | 6 kW | 400 V · 3 PH | — | 50/60 Hz | AUS |
| 801525 | IRT 4-1 TCR | 6 kW | 200 V · 3 PH | 4P | 50/60 Hz | JP |
| 801526 | IRT 4-1 TCR | 6 kW | 230 V · 1 PH | — | 50/60 Hz | NA |
| 801527 | IRT 4-1 TCR | 6 kW | 230 V · 3 PH | — | 50/60 Hz | NA |
| 801500 | IRT 4-2 TCR | 12 kW | 400 V · 3 PH | 5-pin | 50/60 Hz | EU |
| 801504 | IRT 4-2 TCR | 12 kW | 400 V · 3 PH | 4-pin | 50/60 Hz | EU |
| 801502 | IRT 4-2 TCR | 12 kW | 230 V · 3 PH | — | 50/60 Hz | EU |
| 801505 | IRT 4-2 TCR | 12 kW | 200 V · 3 PH | 4P | 50/60 Hz | JP |
| 801503 | IRT 4-2 TCR | 12 kW | 400 V · 3 PH | — | 50/60 Hz | AUS |
| 801506 | IRT 4-2 TCR | 12 kW | 230 V · 1 PH | — | 50/60 Hz | NA |
| 801507 | IRT 4-2 TCR | 12 kW | 230 V · 3 PH | — | 50/60 Hz | NA |
EU: Europe · AUS: Australia · JP: Japan · NA: North America. A dash indicates that the connector is not specified in the supplier's product table. Electrical protection and current requirements are confirmed for the exact article before installation.
Request a configuration review
Select an article for your enquiry, or ask M&H Group to review the equipment requirements.
DOCUMENTS & DEMONSTRATION
From Hedson.
Product brochure, current operating instructions and model-specific electrical drawings.
- Product brochure PDF · EN
- Operating manual · Rev. 6 PDF · EN / DE / FR / NL / SE / IT / ES
- Assembly instructions PDF · EN / DE / FR / NL / SE / IT / ES
- IRT 4-2 TCR: 400 V 3 PH electrical drawing PDF · EN
- IRT 4-1 TCR: 400 V 3 PH electrical drawing PDF · EN
Electrical drawings above apply to the labelled 400 V, 3-phase model only.
Official supplier video featuring the TCR system.
IRT TCR
The two mobile models.
IRT 4-1 TCR
Single-cassette infrared curing with thermal-camera temperature control, radar distance guidance and a 1.1 × 1.5 m curing area.
Product details →IRT 4-2 TCR
Twin-cassette infrared curing with thermal-camera temperature control, radar distance guidance and a 2.2 × 1.5 m curing area.
Product details →M&H GROUP · THAILAND
Discuss your paint-repair requirements.
Confirm the repair area, available electrical supply and preferred model with M&H Group before quotation.
