Spanesi DS 259 Double Scissor Lift

Workshop role

Compact 1,000 mm access for inspection and maintenance bays.

DS 259 combines a 110 mm resting height with synchronized low-rise lifting for workshops that value quick access and a compact installation.

Product role

Spanesi DS 259 Double Scissor Lift sits inside the Automotive lift and repair platform option and should be reviewed against installation space, real repair work, operator training, and support needs.

  • Independent dual hydraulic circuits support stable operation if one circuit fails.
  • Anti-explosion valves, a safety photocell, lowering buzzer, and time relay support a controlled descent sequence.
  • The 110 mm resting height supports easy vehicle approach.
  • Platforms extend from 1,500 to 2,070 mm for different vehicle dimensions.
  • A reinforced base and synchronized double-scissor arms support smooth, uniform movement.

Where it fits

  • Vehicle inspections
  • General maintenance
  • Workshop control operations
  • Low-rise service access

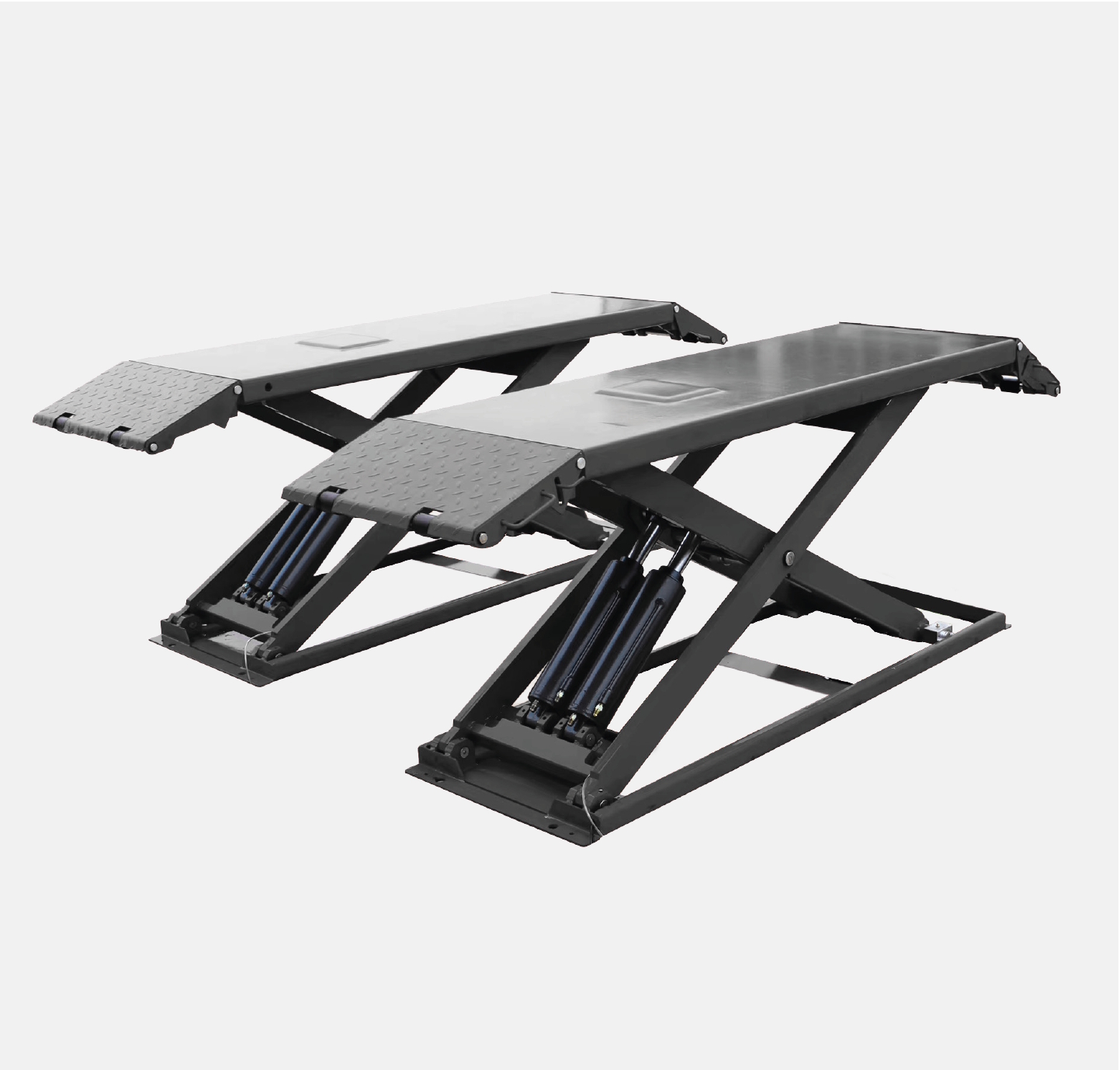

Spanesi DS 259 Double Scissor Lift application view
Spanesi DS 259 Double Scissor Lift

Selection option

Review the product as part of the Spanesi workshop workflow.

Start from the work to improve, then check specifications, space, official media, and the quote information M&H Group needs.

01

Define the job to improve

Start with the repair task, available space, production target, and workflow problem.

02

Confirm the product role

Check where this product fits in the Spanesi bodyshop system and what it may need to work with.

03

Review specs and official media

Use the product data, images, videos, accessories, and documentation points before a quote.

04

Prepare the quote information

Share workshop details, vehicle mix, installation space, training needs, and support expectations with M&H Group.

Browse product data

DS 259 dimensions, safety systems, and operating data.

Open the details you need before discussing installation, training, parts, consumables, support, and quotation with M&H Group.

Overview

This overview gives the buyer a practical starting point before checking specifications, media, related equipment, and quote requirements for Spanesi DS 259 Double Scissor Lift.

  • Independent dual hydraulic circuits support stable operation if one circuit fails.
  • Anti-explosion valves, a safety photocell, lowering buzzer, and time relay support a controlled descent sequence.
  • The 110 mm resting height supports easy vehicle approach.
  • Platforms extend from 1,500 to 2,070 mm for different vehicle dimensions.
  • A reinforced base and synchronized double-scissor arms support smooth, uniform movement.
Technical data
Article no.
10002259
Model
DS 259 double scissor lift h1000 mm
Lifting capacity
3.2 t
Lifting height
Up to 1,000 mm
Platform length
1,500-2,070 mm
Platform width
520 mm each
Overall width
1,898 mm
Resting height
110 mm
Hydraulic pressure
25 MPa
Lifting time
Less than 45 seconds
Power
2.2 kW
Net weight
Approximately 600 kg
Installation
Above ground or flush mounted (in-ground)
Standard supply
Connecting pipework with a total length of 5 m
Open Spanesi data sheet
Applications
  • Vehicle inspections
  • General maintenance
  • Workshop control operations
  • Low-rise service access
Videos

No product-specific video is currently listed in the M&H Group video library.

Related Spanesi equipment
Spanesi DS 249 Double Scissor LiftSpanesi DS 249 is a 3.5-ton double-scissor lift with a maximum lifting height of 1,900 mm, a 115 mm closed height, extendable platforms, dual-circuit hydraulics, and above-ground or flush-mounted installation options.Spanesi TP 248 Two-post LiftSpanesi TP 248 is a 4.5-ton electro-hydraulic two-post lift with asymmetric three-stage arms, adjustable installation height and width, dual hydraulic cylinders, mechanical locking, and a clear-floor design for full underbody access.PonybenchThis is Spanesi's space-saving lift for small to mid-sized vehicles, with in-floor installation information in the official product page.MinibenchThis is a compact Spanesi lift and repair platform for small and medium damage, designed for bodyshops where space and fast access matter.
Quote requirements
  • Vehicle mix, maximum weight, and intended inspection or maintenance tasks
  • Bay dimensions, floor condition, and above-ground or flush-mounted installation
  • Power supply, commissioning, safety process, and operator training
Request DS 259 advice

Product media

See the complete DS 259 lift.

Review the low-rise platform, synchronized scissor structure, and vehicle approach, then use the Spanesi data sheet for dimensions and installation planning.

Application images

See application images before contacting M&H Group.

Use these images to compare product use, workflow fit, and what to confirm with M&H Group before a quote.

Open full application gallery

Spanesi project paths

Continue from Spanesi DS 259 Double Scissor Lift into related Spanesi pages.

Use this related equipment and supporting information to compare the product family, OEM information, APAC support, and regional project paths before requesting advice.

Related page

DS 249 double-scissor lift

Review the 3.5-ton, 1,900 mm full-rise option for tire service and light maintenance.

Open detailsRelated page

TP 248 two-post lift

Review the 4.5-ton two-post option for cars, SUVs, EVs, vans, and full underbody access.

Open detailsRelated page

Multibench

Review Multibench when lift access and structural repair capability are both required.

Open detailsRelated page

Spanesi hub

View Spanesi as a complete bodyshop system before choosing individual models.

Open details

Next step

Confirm the DS 259 installation before quotation.

Start with the product, workshop type, country, installation space, training needs, documentation needs, spare parts, and aftersales expectations.

Request DS 259 advice
