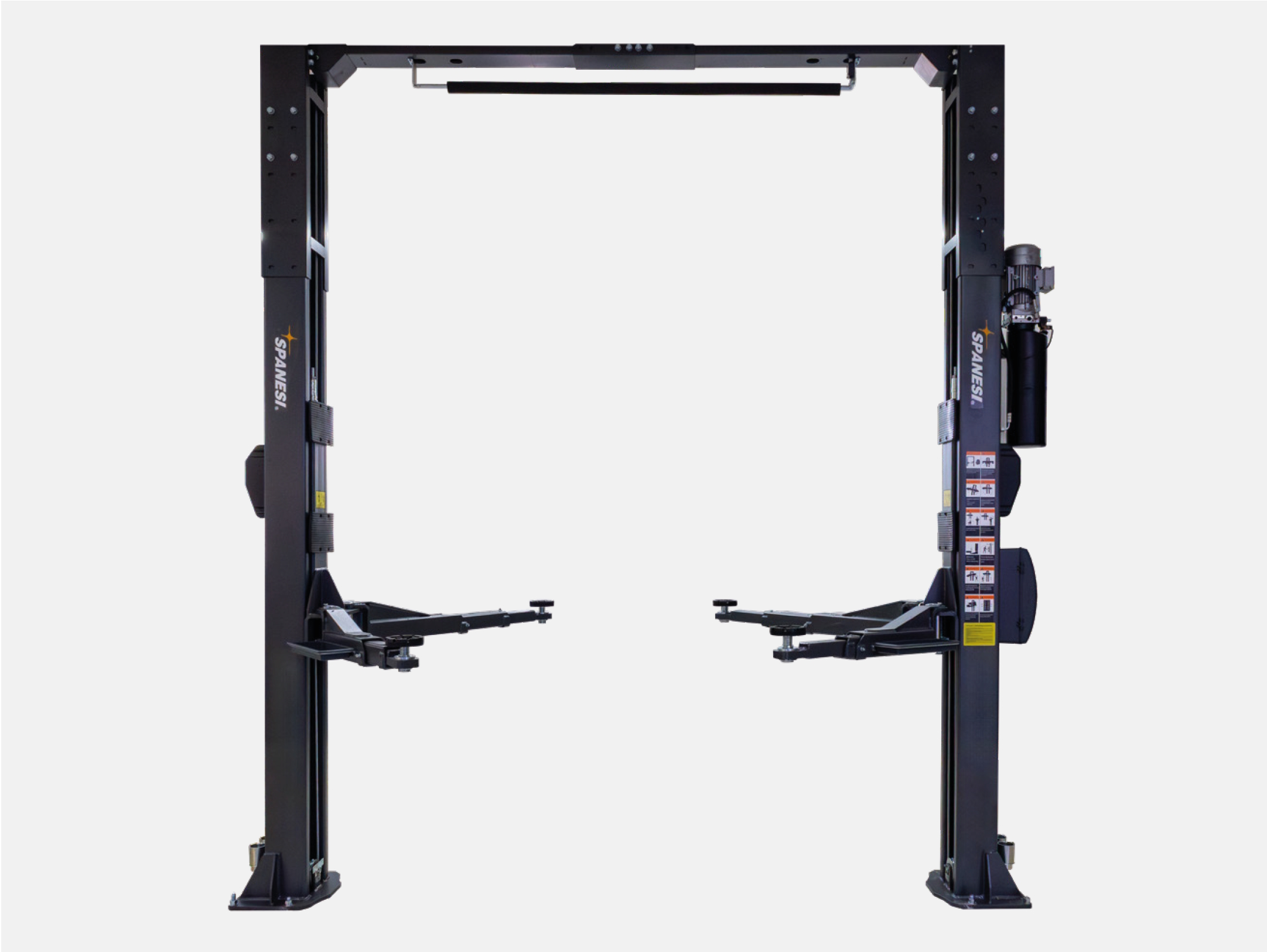

This overview gives the buyer a practical starting point before checking specifications, media, related equipment, and quote requirements for Spanesi TP 248 Two-post Lift.

• Asymmetric three-stage telescopic arms provide access to lifting points across cars, SUVs, EVs, and vans.
• One-piece bent steel columns are powder coated for durability and reduced maintenance.
• A mechanical lock, self-locking arms, anti-explosion oil pipes, and a height limit bar support safe operation.
• Dual hydraulic cylinders and 11 mm steel ropes support consistent performance under intensive use.
• Adjustable installation height and width support different workshop and vehicle requirements.

Article no.

10002248

Model

TP 248 electro-hydraulic two-post lift

Lifting capacity

4.5 t (approximately 9,920.79 lb)

Lifting height

Up to 1,900 mm (approximately 74.80 in)

Minimum pad height

100 mm

Passway space

2,500 or 2,830 mm, according to installation configuration

Adjustable overall height

3,705-4,105 mm

Adjustable overall width

2,858-3,188 mm

System pressure

20 MPa

Motor power

2.2 kW

Voltage

380/220 V

Net weight

750 kg

Lift arms

Asymmetric, three-stage telescopic arms

Safety

Mechanical lock, self-locking arms, height limit bar, anti-explosion oil pipes, dual hydraulic cylinders, and 11 mm steel ropes

Installation note

Minimum-height/minimum-width and maximum-height/maximum-width configurations are manufacturer-defined combinations

• Cars, SUVs, EVs, and vans
• Full underbody access
• Mechanical service and inspection
• Dedicated two-post lift bays

Best suited to

Choose TP 248 when the workshop needs 4.5-ton capacity, full underbody access, and flexible arm reach across modern vehicle types.

What makes it different

TP 248 provides clear-floor two-post access and higher 4.5-ton capacity; DS 249 and DS 259 use double-scissor platforms.

Planning and support

Confirm workshop layout, vehicle mix, production pressure, utilities, operator skill, training need, and support plan.

• Vehicle types, maximum weight, wheelbase, and approved lifting-point process
• Concrete floor, clear ceiling height, bay width, and selected manufacturer-defined installation configuration
• Voltage, delivery access, installation, commissioning, inspection, and operator training
