Marea 1
Single-panel manual lamp for localized curing.
- Panel length
- 400 or 600 mm
- Power
- 1 x 1000 W or 1 x 1500 W
- Supply
- 230 V L+N, 50/60 Hz
- Dried surface
- 0.6 x 0.3 m or 0.8 x 0.3 m
- Control
- Manual / timer
SPANESI / Curing
Marea Manual Infrared Lamps and Trolleys
Four mobile infrared configurations, from a compact single-panel lamp to six-panel trolleys, with model-specific power and control options.
Technical details- Panel lengths
- 400-850 mm, depending on model
Technical details
Marea Manual Infrared Lamps and Trolleys
Equipment highlights
- Four model configurations cover localized work through larger repair surfaces.
- Short-wave infrared concentrates heat on the repair area.
- Mobile lamps can be repositioned between jobs without an overhead rail installation.
- Model choice determines panel length, power, supply, control type, and dried surface.
Workshop applications
- Spot drying
- Prep and refinish support
- Rail or trolley curing
- Cycle-time control
More equipment details
- The portable UV-A lamp is available as official accessory article 10002192.
- Marea 1, 2, 3, and 6 provide different panel sizes, controls, power supplies, and dried-surface coverage.
- Portable UV-A lamp 10002192 is available for compatible UV-curing materials.

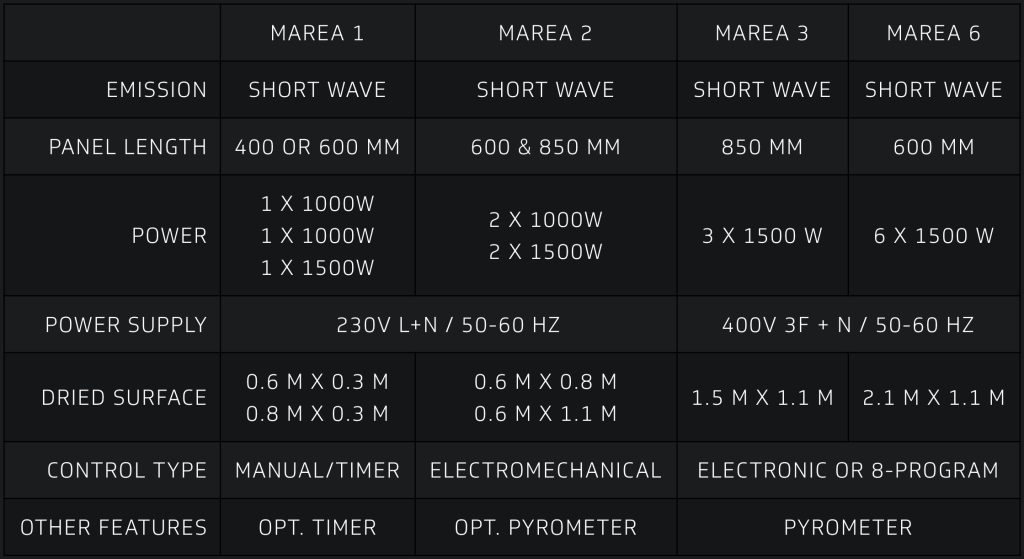

Full specifications
- Models
- Marea 1, Marea 2, Marea 3, and Marea 6
- Panel configurations
- 400 or 600 mm; 600 and 850 mm; 850 mm; and 600 mm depending on model
- Power per panel
- 1000 W or 1500 W, depending on model
- Power supply
- 230 V L+N or 400 V 3F+N, 50-60 Hz depending on model
- Control
- Manual/timer, electromechanical, electronic, or 8-program control depending on model
- Optional accessory
- Portable UV-A lamp, article 10002192
- Emission
- Short-wave infrared
- Panel lengths
- 400-850 mm, depending on model
- Power range
- 1000-1500 W per panel, depending on model
- Dried surfaces
- 0.6 x 0.3 m to 2.1 x 1.1 m, depending on model
- Energy efficiency
- Up to 150% higher efficiency and 35% lower energy consumption
- Accessory article no. - Portable UV-A Lamp
- 10002192
Models & configurations4

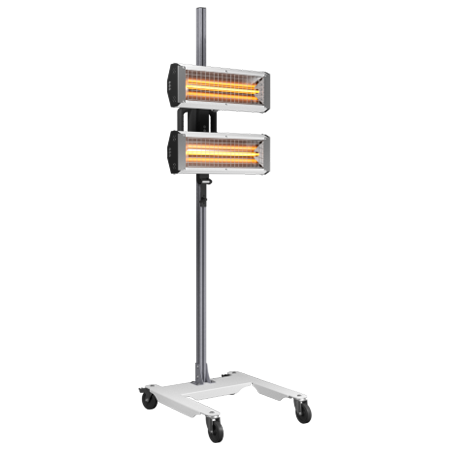

Marea 2
Two-panel mobile lamp for medium repair areas.
- Panel length
- 600 or 850 mm
- Power
- 2 x 1000 W or 2 x 1500 W
- Supply
- 230 V L+N, 50/60 Hz
- Dried surface
- 0.6 x 0.8 m or 0.6 x 1.1 m
- Control
- Electromechanical
Marea 3
Three-panel trolley for a 1.5 x 1.1 m dried surface.
- Panel length
- 850 mm
- Power
- 3 x 1500 W
- Supply
- 400 V 3F+N, 50/60 Hz
- Dried surface
- 1.5 x 1.1 m
- Control
- Electronic or eight-program

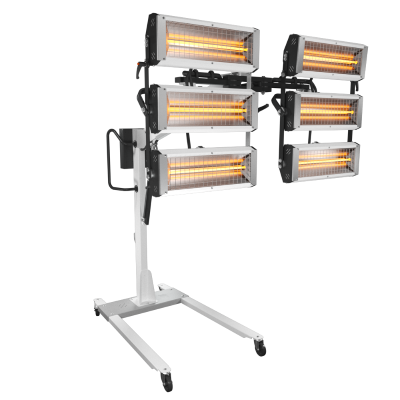

Marea 6
Six-panel trolley for a 2.1 x 1.1 m dried surface.
- Panel length
- 600 mm
- Power
- 6 x 1500 W
- Supply
- 400 V 3F+N, 50/60 Hz
- Dried surface
- 2.1 x 1.1 m
- Control
- Electronic or eight-program
