- Supplier article no. - 12500 inverter spot welding machine with C gun
- 90PUNTPI74
- Supplier article no. - 14500 inverter spot welding machine with automatic C gun
- 90PUNTPIC5
- Supplier article no. - 12500 inverter spot welding machine with X gun
- 90PUNTPI71
- Supplier article no. - 14500 inverter spot welding machine with automatic X gun
- 90PUNTPIB1
- Category
- Welding and joining
- Workflow
- Weld / join / rivet / repair panels
- Product role
- Auto water-cooled inverter spot welding machines with program and gun support information
- Result
- Controlled joining workflow for modern collision repair
- Use case
- Bodyshops repairing steel, aluminum, and mixed-material panels
- System
- Auto water-cooled inverter spot welding information
- Control
- Current, pressure, and duration adjustment information

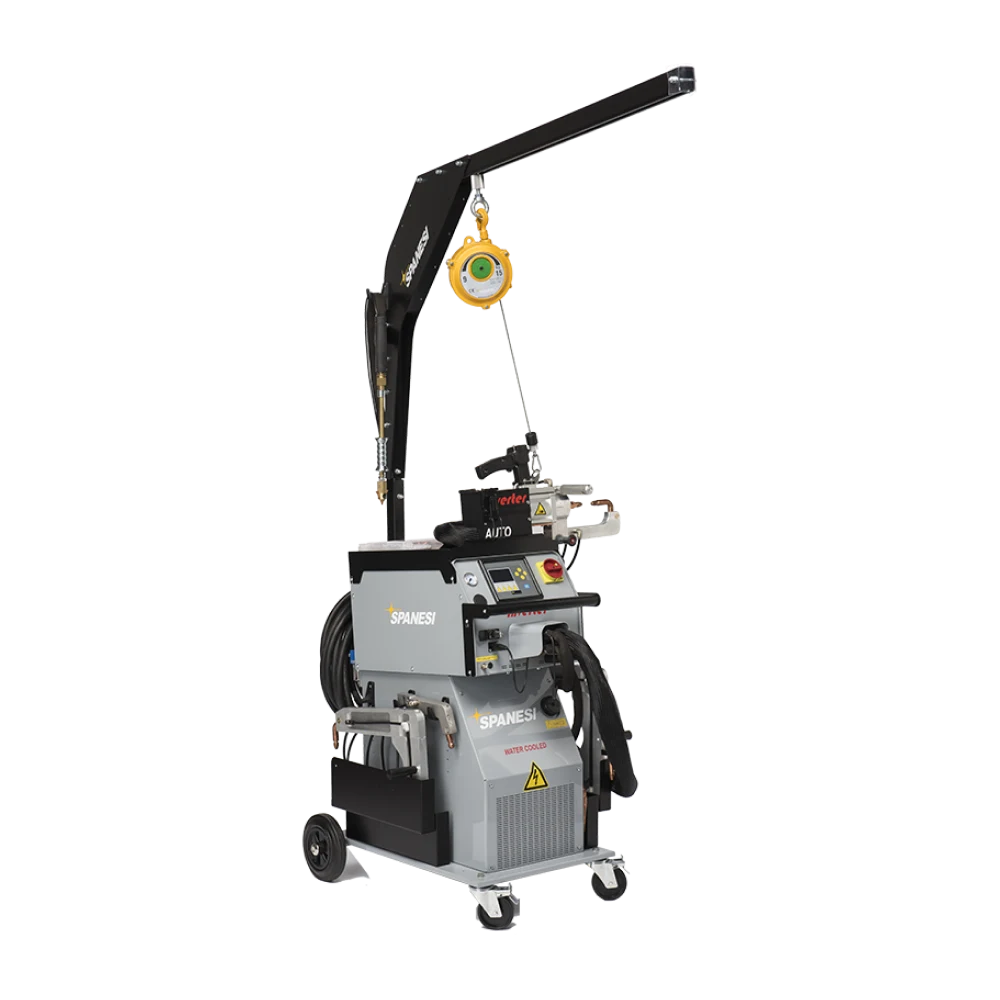

- 12500A C rated power
- 25 kVA at 50% listed by Spanesi
- 12500A C max secondary short-circuit current
- 13 kA listed by Spanesi
- 12500A C frequency and fuses
- 50/60Hz and 32A delayed fuses listed by Spanesi
- 12500A C secondary voltage
- 16V without load listed by Spanesi
- 12500A C gun weight
- 15.4 lbs listed by Spanesi
- Connection power
- 400/200V three-phase, 20 kVA information listed by Spanesi
- Gun cable and cooling
- 8 ft 2 in gun cable, 2 gal cooling tank, and 12 mm electrode cone diameter listed by Spanesi
- Program information
- 50 preset welding programs plus 50 more available information listed by Spanesi

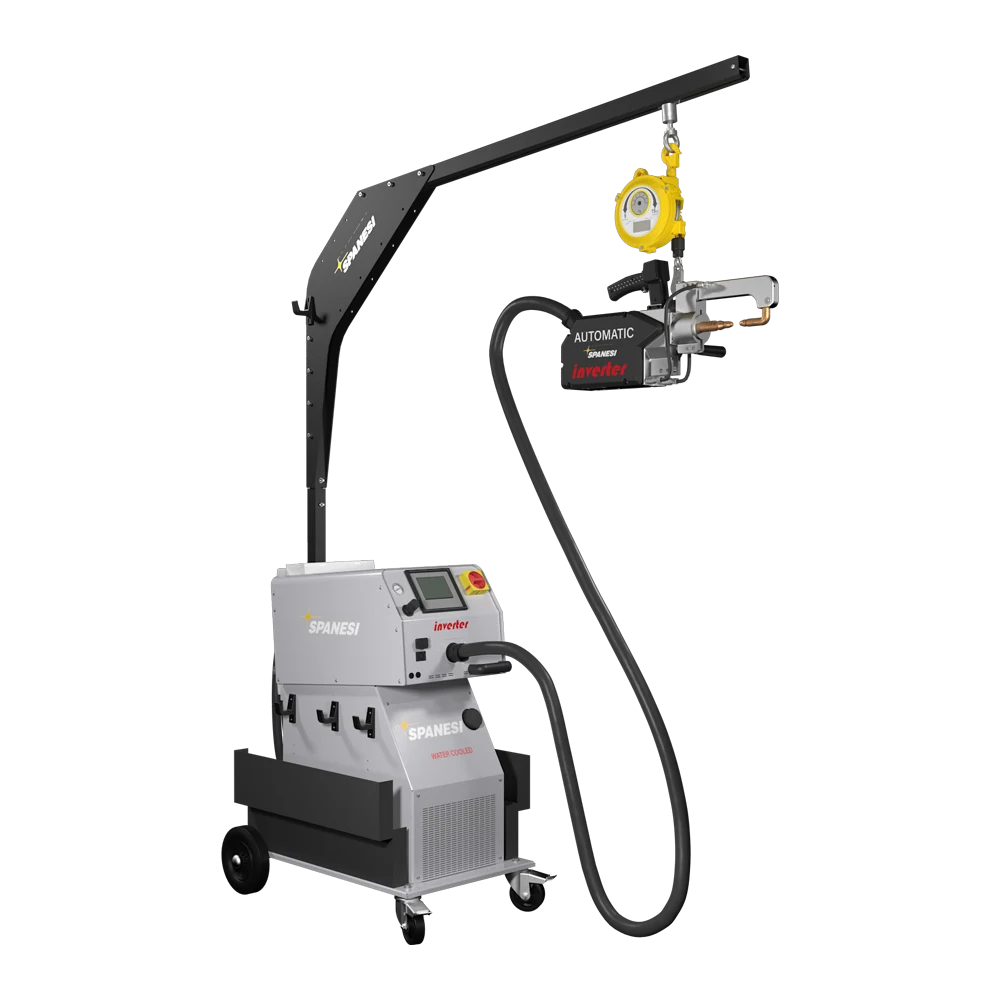

- 14500A C information
- 13 kVA rated power at 50%, 15 kA max secondary short-circuit current, 50/60Hz, 16/32A delayed fuses, 6.5V no-load secondary voltage, and 19.84 lbs gun weight are listed by Spanesi

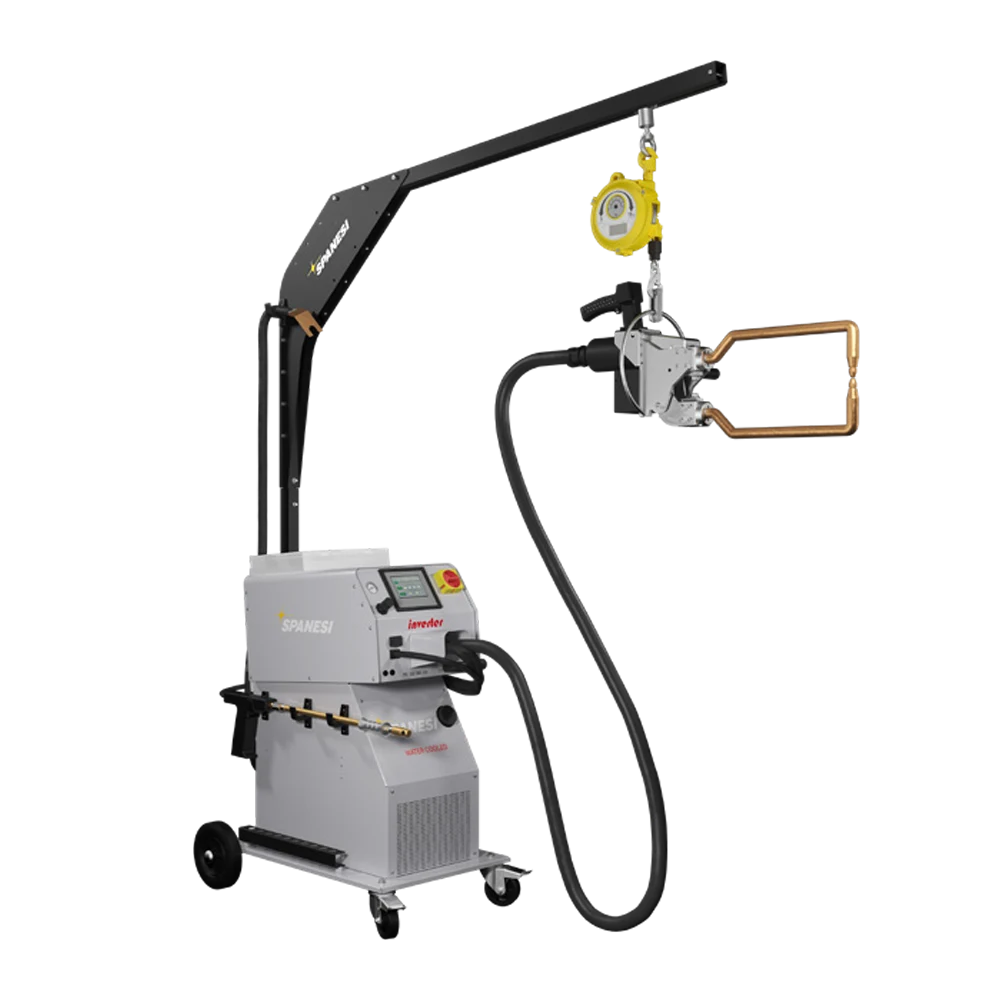

- 12500A X information
- 25 kVA rated power at 50%, 13 kA max secondary short-circuit current, 16A delayed fuse, 6.5V no-load secondary voltage, and 10.1-11.4 lbs gun weight are listed by Spanesi

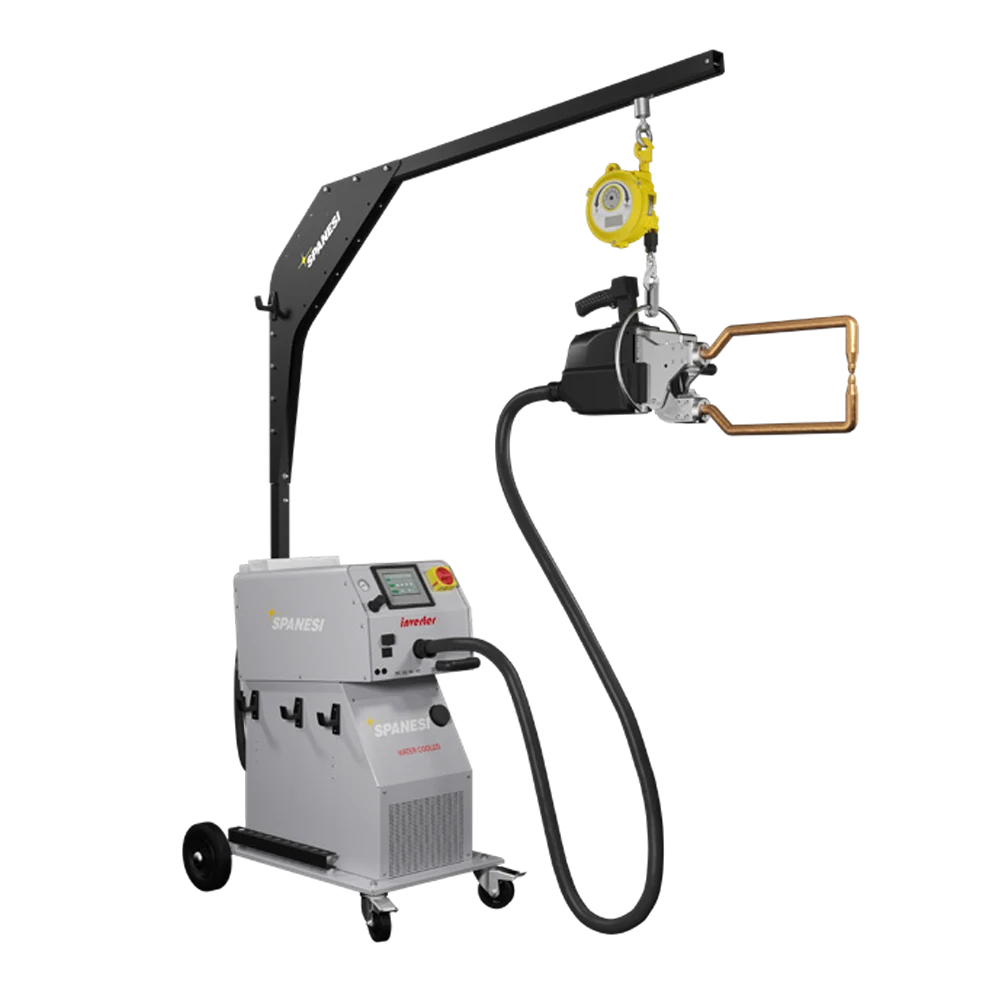

- 14500A X information
- 25 kVA rated power at 50%, 13 kA max secondary short-circuit current, 50/60Hz, 32A delayed fuse, 16V no-load secondary voltage, 26.4-27.7 lbs gun weight, and 9 ft 10 in gun cable are listed by Spanesi
- Workshop use
- Welding, spot welding, riveting, joining, and panel-repair process support
- Choose the correct configuration
- Confirm material mix, OEM repair method, power/air needs, joining method, tooling, and operator approval process
- Training plan
- Plan welding/riveting process, test pieces, settings, documentation, and safety training
- Ongoing support
- Confirm arms, consumables, electrodes, dies, accessories, service parts, and support
- Common applications
- MIG/TIG support, Spot welding, Riveting
- Accessory article no. - Spotter
- 10001012
- Accessory article no. - X/C gun adapter
- 10004402
