IRT UV SmartCure
Battery-powered UV LED curing for localized repairs. The handheld format gives access to areas where a mains cable would restrict movement.
Product details →
IRT / HEDSON

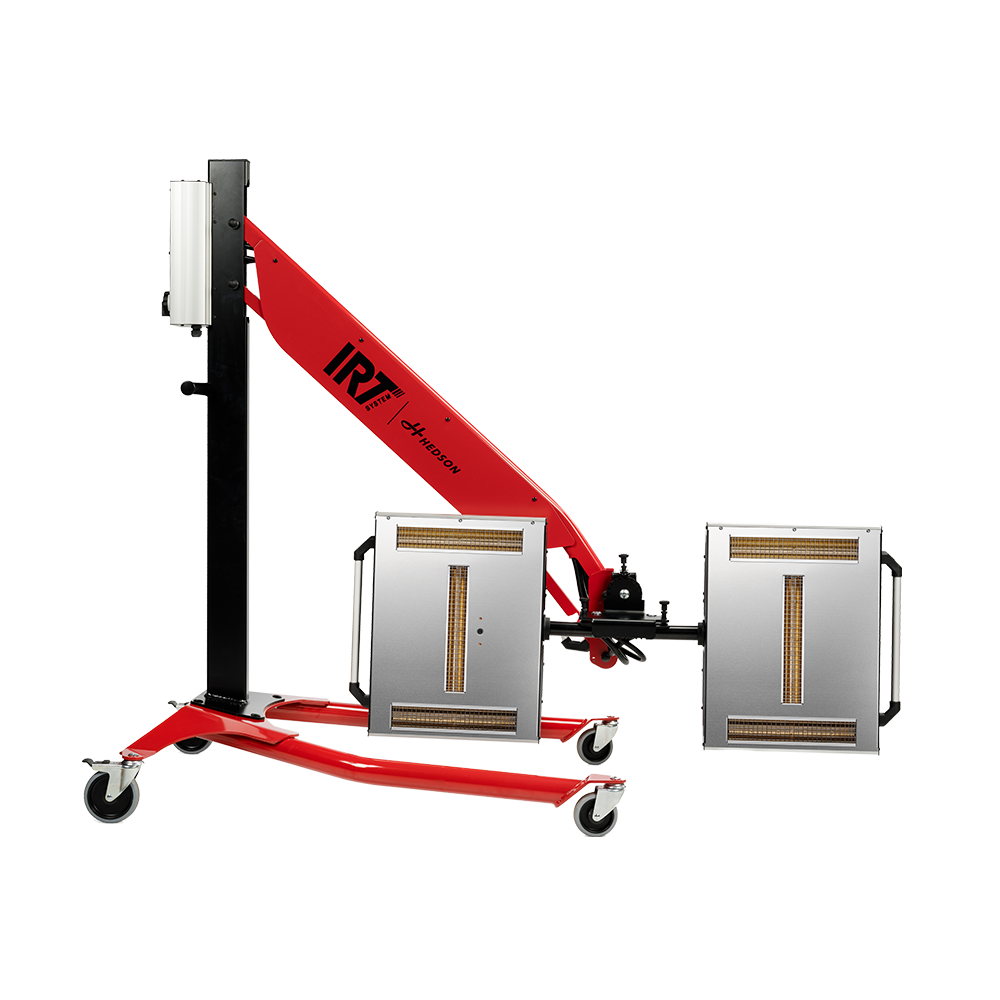

IRT Prep X 3-2 LDP
Twin cassettes. Measured temperature and distance.

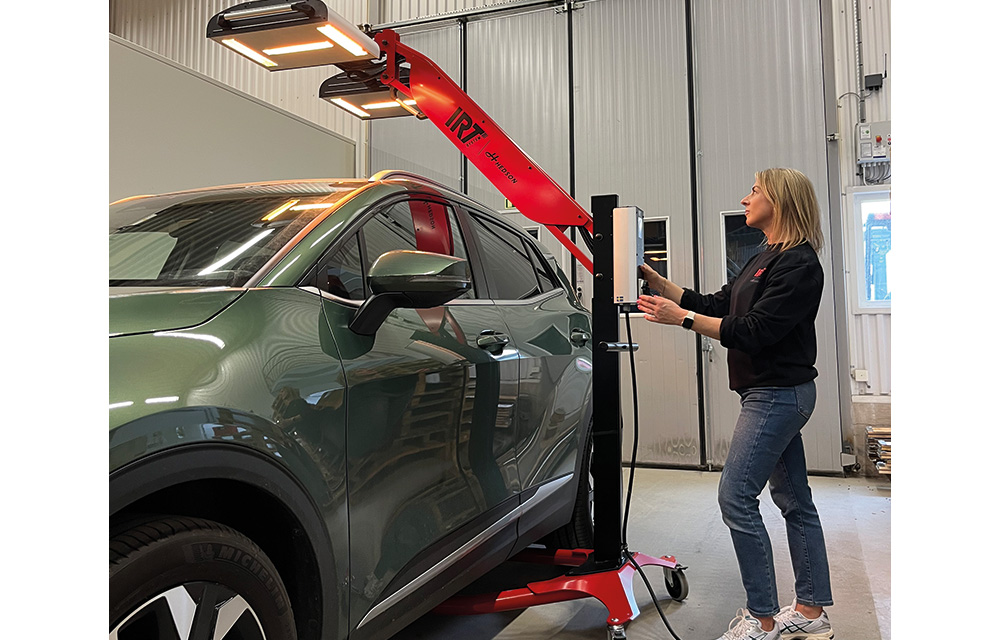

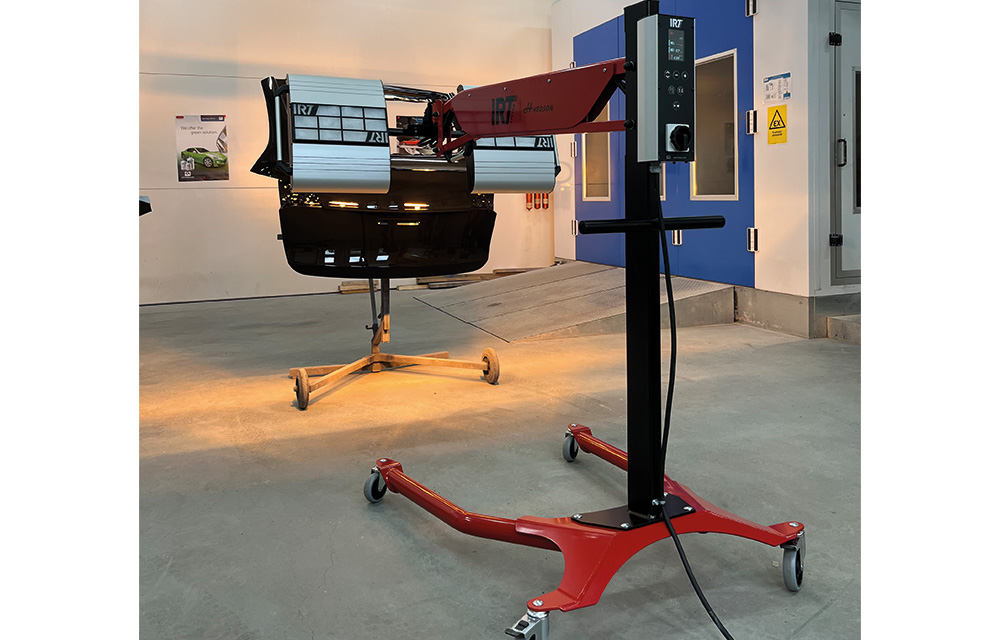

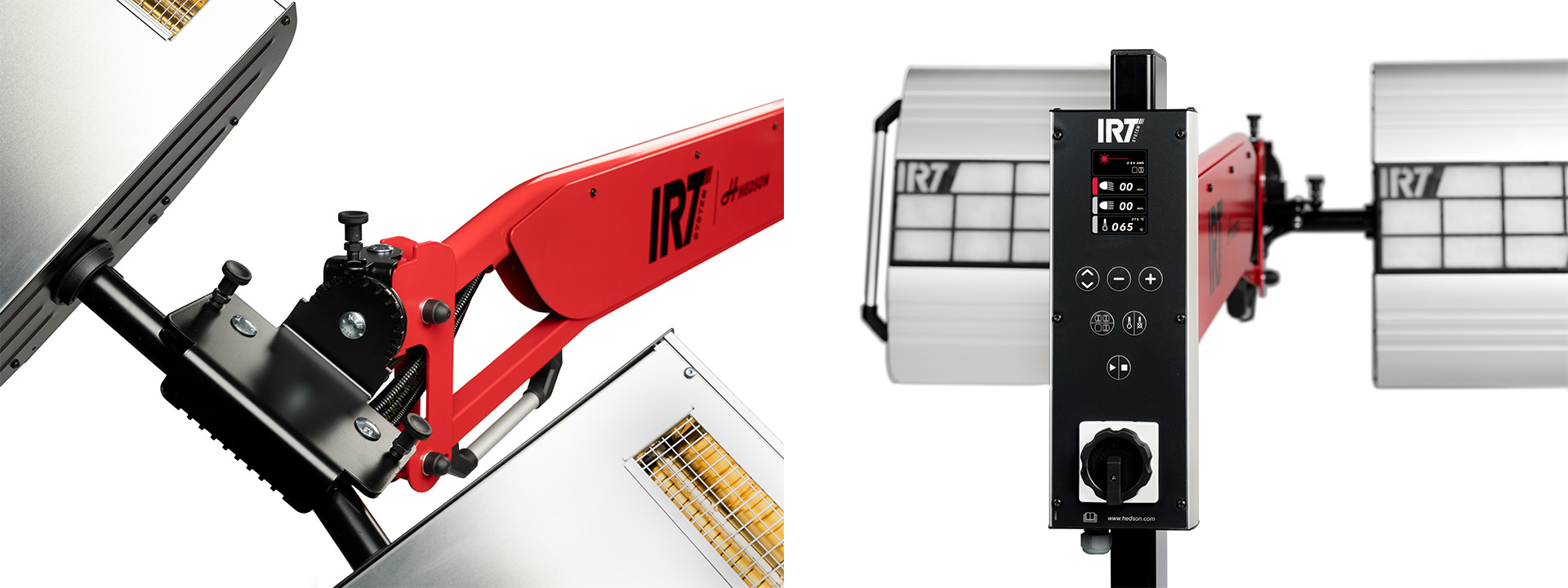

Mobile infrared curing with twin cassettes, laser distance guidance and pyrometer temperature measurement. Each cassette contains three lamps; the controller displays energy use after the cycle.
IRT Prep X 3-2 LDP1 / 7
- Weight (kg)
- 58 kg
- Length (mm)
- 876 mm
- Height (mm)
- 2200 mm
- Width / depth (mm)
- 1300 mm
IRT
Speak with M&H Sales
YOUR WORKSHOP
Match the dryer to your repair area.
Choose the cassette coverage and power supply for your workshop. Send M&H the coating system and typical repair size for help selecting the model.
Compare 4 configurations
801420 · IRT Prep X 3-2 LDP
| Specification | Value |
|---|---|
| Power supply | 6 kW, 400V, 3PH, 4pin, 50/60 Hz, EU |
801421 · IRT Prep X 3-2 LDP
| Specification | Value |
|---|---|
| Power supply | 6 kW, 400V, 3PH, 5pin, 50/60 Hz, EU/UK |
801423 · IRT Prep X 3-2 LDP
| Specification | Value |
|---|---|
| Power supply | 6 kW, 400V, 3PH, 50/60 Hz, AUS |
801425 · IRT Prep X 3-2 LDP
| Specification | Value |
|---|---|
| Power supply | 6 kW, 230V, 1PH, 50/60 Hz, NA ETL |
Your enquiry goes to M&H Group. No order or payment is placed here.
TECHNICAL DETAILS
The details that matter.
| Weight (kg) | 58 kg |
|---|---|
| Length (mm) | 876 mm |
| Height (mm) | 2200 mm |
| Width / depth (mm) | 1300 mm |
| Infrared/UV LED | Infrared |
| Battery powered/corded | Corded |
| Pyrometer /Thermal Camera | Pyrometer |
All technical specifications
| Weight (kg) | 58 kg |
|---|---|
| Length (mm) | 876 mm |
| Height (mm) | 2200 mm |
| Width / depth (mm) | 1300 mm |
| Infrared/UV LED | Infrared |
| Battery powered/corded | Corded |
| Handheld | NO |
| Floor mobile | YES |
| Ceiling installation | NO |
| Pyrometer /Thermal Camera | Pyrometer |
| Distance guide laser/distance guide radar | Laser |
| Display for energy use | YES |
| Prep Zone / Spray booth | Prep zone |
| Automated movement | NO |
| Number of cassettes | 2 |
M&H Group confirms the exact configuration, installation requirements and commercial terms in the quotation. Site dimensions must be checked against the drawing for the ordered version.
Operation and safety
Follow the coating manufacturer's time and temperature requirements and the equipment manual. Keep the specified distance from the workpiece.
Planning your installation
Choose the cassette coverage and power supply for your workshop. Send M&H the coating system and typical repair size for help selecting the model.
Discuss with M&H Sales →DOCUMENTS & SUPPORT
Keep the right details to hand.
Speak with M&H about the selected article, installation, spare parts and operating instructions.
Ask M&H for product support →Brochures and operating documents
- Operating Manual IRT PrepX 3-1 3-2 LDP Manual · EN, DE, FR, SE, ES, IT, NL
- IRT PrepCure Gen5 Spare Parts List rev1 Spare parts · EN
