+66 88 984 8897UV LED optics
132 LEDs and individual optics distribute UV light over the repair. The emission peak is 395 nm; the coating must be compatible with that wavelength.
IRT / HEDSON
IRT SpotCure2
Handheld UV LED for spot repairs.
Handheld UV LED curing for localized paint repairs, with 132 LEDs, individual optics and temperature-regulated ventilation. Curing time depends on the coating and the size of the repair.
IRT SpotCure21 / 8
- Weight (kg)
- 2 kg
- Length (mm)
- 335 mm
- Height (mm)
- 116 mm
- Width / depth (mm)
- 172 mm
IRT
Speak with M&H Sales
YOUR WORKSHOP
Start with your coating system.
UV, UVA and infrared are not interchangeable processes. Tell M&H which coating you use and the repair area, then choose the matching equipment and electrical version.
Compare 3 configurations
800900 · IRT UV SpotCure2
| Specification | Value |
|---|---|
| Power supply | 230V, EU |
800901 · IRT UV SpotCure2
| Specification | Value |
|---|---|
| Power supply | 240V, UK |
800902 · IRT UV SpotCure2
| Specification | Value |
|---|---|
| Power supply | 110V, NA |
Your enquiry goes to M&H Group. No order or payment is placed here.
AT WORK
Equipment and operation.
Distance and coverage
The manual specifies a 100–300 mm working distance. A shorter distance concentrates intensity on a smaller area; coating data determines the exposure time.
Operator protection
This is a Risk Group 3 UV source. Follow the manual for eye and skin protection, ventilation and control of the work area.
TECHNICAL DETAILS
The details that matter.
| Weight (kg) | 2 kg |
|---|---|
| Length (mm) | 335 mm |
| Height (mm) | 116 mm |
| Width / depth (mm) | 172 mm |
| Infrared/UV LED | UV LED |
| Battery powered/corded | Corded |

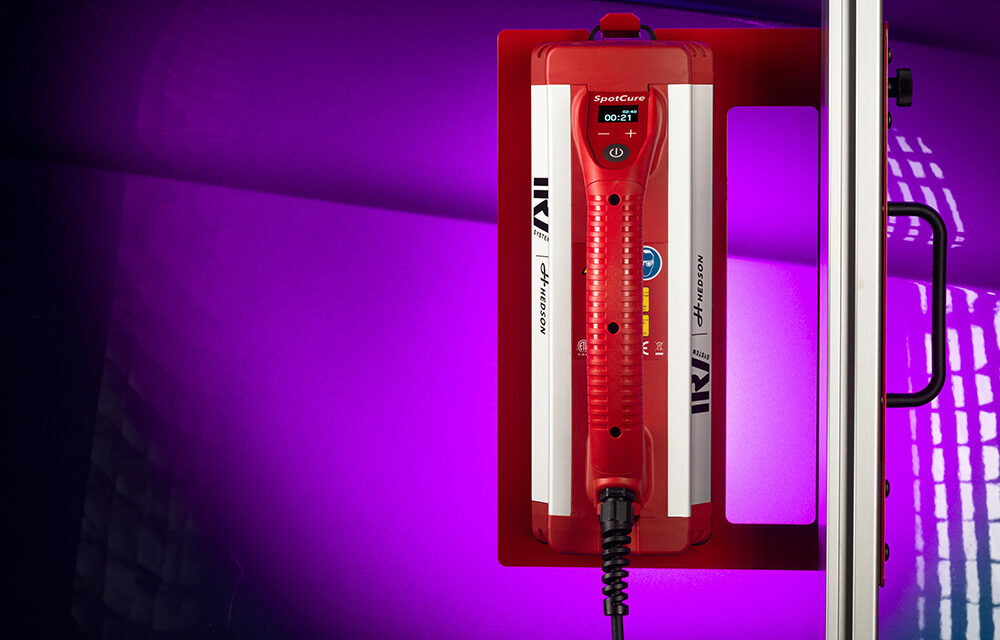

| Floor mobile | Optional stand |
All technical specifications
| Weight (kg) | 2 kg |
|---|---|
| Length (mm) | 335 mm |
| Height (mm) | 116 mm |
| Width / depth (mm) | 172 mm |
| Infrared/UV LED | UV LED |
| Battery powered/corded | Corded |
| Handheld | YES |
| Floor mobile | Optional stand |
| Ceiling installation | NO |
| Curing area | Spot repair |
| Pyrometer /Thermal Camera | NO |
| Distance guide laser/distance guide radar | NO |
| Display for energy use | NO |
| Prep Zone / Spray booth | Prep zone |
| Automated movement | NO |
| Wavelength | 395 nm |
| Output power | 300 W |
M&H Group confirms the exact configuration, installation requirements and commercial terms in the quotation. Site dimensions must be checked against the drawing for the ordered version.
Operation and safety
Use only compatible coatings. UV and UVA equipment requires trained operators, suitable eye and skin protection, and a controlled work area. Follow the model's operating manual.
Planning your installation
UV, UVA and infrared are not interchangeable processes. Tell M&H which coating you use and the repair area, then choose the matching equipment and electrical version.
Discuss with M&H Sales →DOCUMENTS & SUPPORT
Keep the right details to hand.
Speak with M&H about the selected article, installation, spare parts and operating instructions.
Ask M&H for product support →Brochures and operating documents
- 715423 IRT UV SpotCure2 Instructions Manual INT Manual · EN, DE, FR, SE, ES, IT, PL, NL
- IRT UV SpotCure2 Brochure Brochure · EN
Accessories and replacement parts
SpotCure2 Powercord 1,8m EU
Article: 715429
