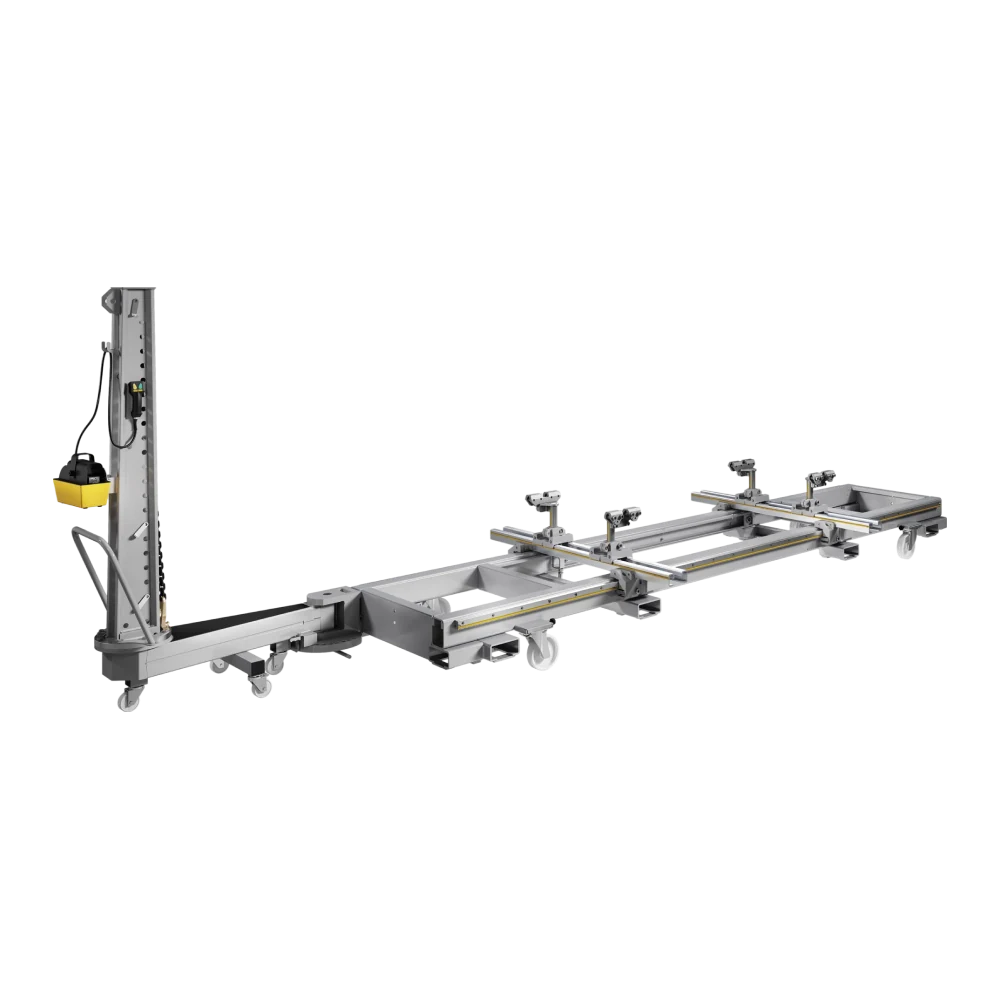

100 TB
Structural repair bench with rack gears, pulling column, two crossbars, and four universal clamps.
- Format
- Frame machine
- Crossbars
- 2
- Holding
- 4 universal clamps
TECHNICAL DATA
Specifications
Model, included equipment and installation requirements are confirmed in the quotation.
Straightening Benches (PDF)- Capacity
- 11,000 lbs and 12,000 lbs EXT contexts
- Pulling force
- 10 ton pulling force
- Capacity values
- 11000 lbs and 12000 lbs EXT contexts
- Width with Universal Jig
- 5 ft 11 in
- Length range
- 13 ft 1 in, 16 ft 4 in, and 19 ft 8 in EXT
- Lifting height
- 5 ft 3 in and 3 ft 3 in EXT contexts
- Pulling locations
- 12 bench mounting locations
- Model range
- 100 TB, 102, 100 TS, 106, 106 Plus, and 106 EXT
- Available lengths
- 13 ft / 4 m, 16 ft 5 in / 5 m, and 19 ft 8 in / 6 m contexts
- Accessory article no. - Down Pull Adapter
- 90RINV01
- Accessory article no. - BMW Clamps
- 90201935
- Accessory article no. - Telescopic Pulling Arm
- 90BRTEK001
- Accessory article no. - Heavy Duty Electric Winch
- 90VERSTM03
- Accessory article no. - Crossbar
- 90TRST02
- Accessory article no. - Extension for Vertical Pulling Column
- 90205215
- Accessory article no. - Platforms for Optional Sixth Crossbar
- 90202580
- Accessory article no. - Pulling Column to 100 Adapter
- 90204905
- Accessory article no. - High Profile / 4WD Clamp Kit
- 90M100T010
- Accessory article no. - High Profile / 4WD Rear Anchor Clamp Kit
- 90M100T020
SPANESI
Models & options

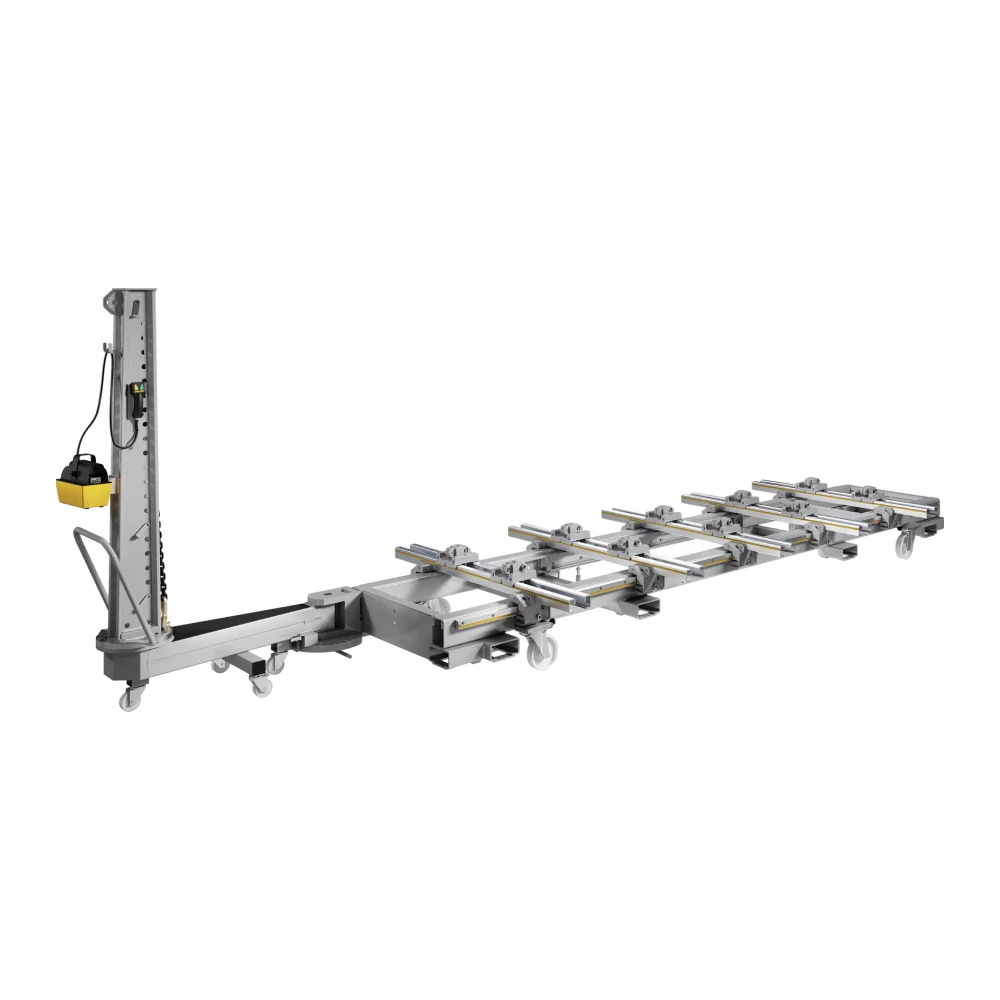

102
Structural repair bench configured with the Spanesi Universal Jig System.
- Format
- Frame machine
- Crossbars
- 5
- Holding
- Universal Jig System

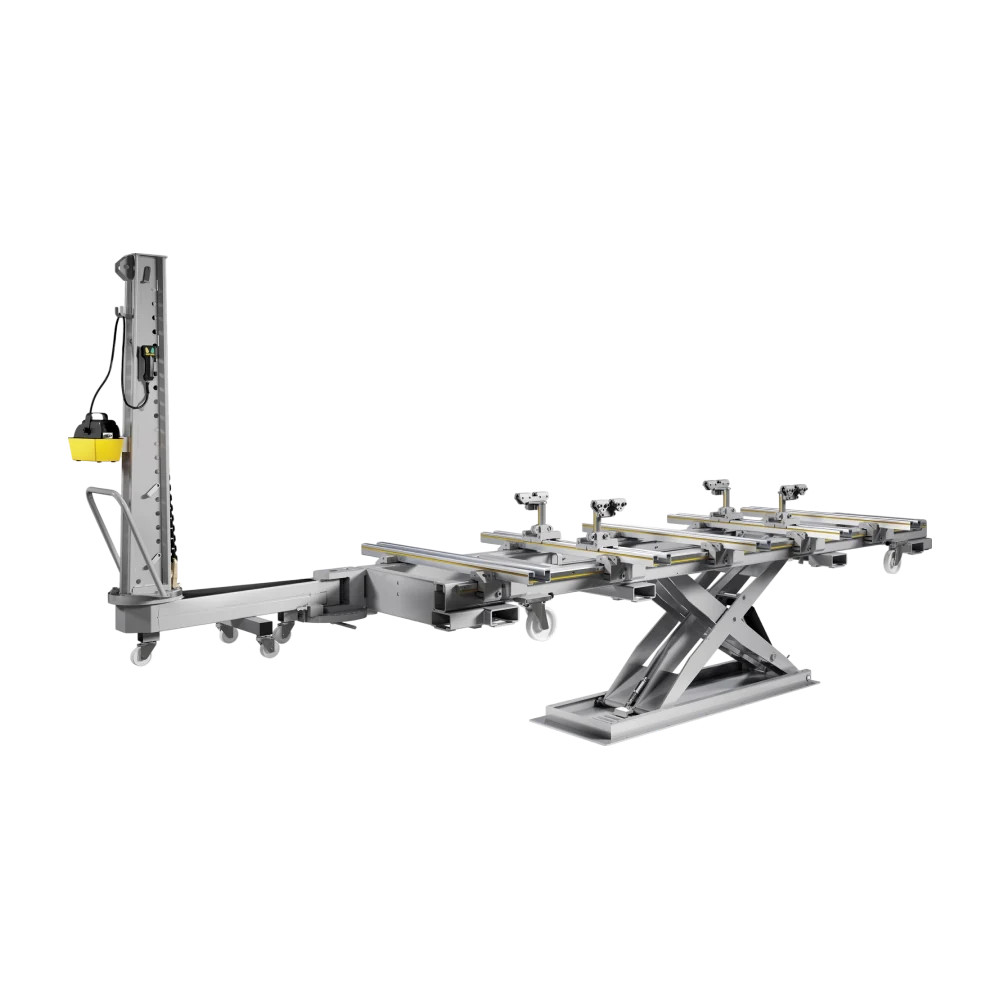

100 TS
Frame machine and lift package with loading trolley, ramps, and universal clamps.
- Format
- Frame machine and lift
- Crossbars
- 5
- Holding
- 4 universal clamps

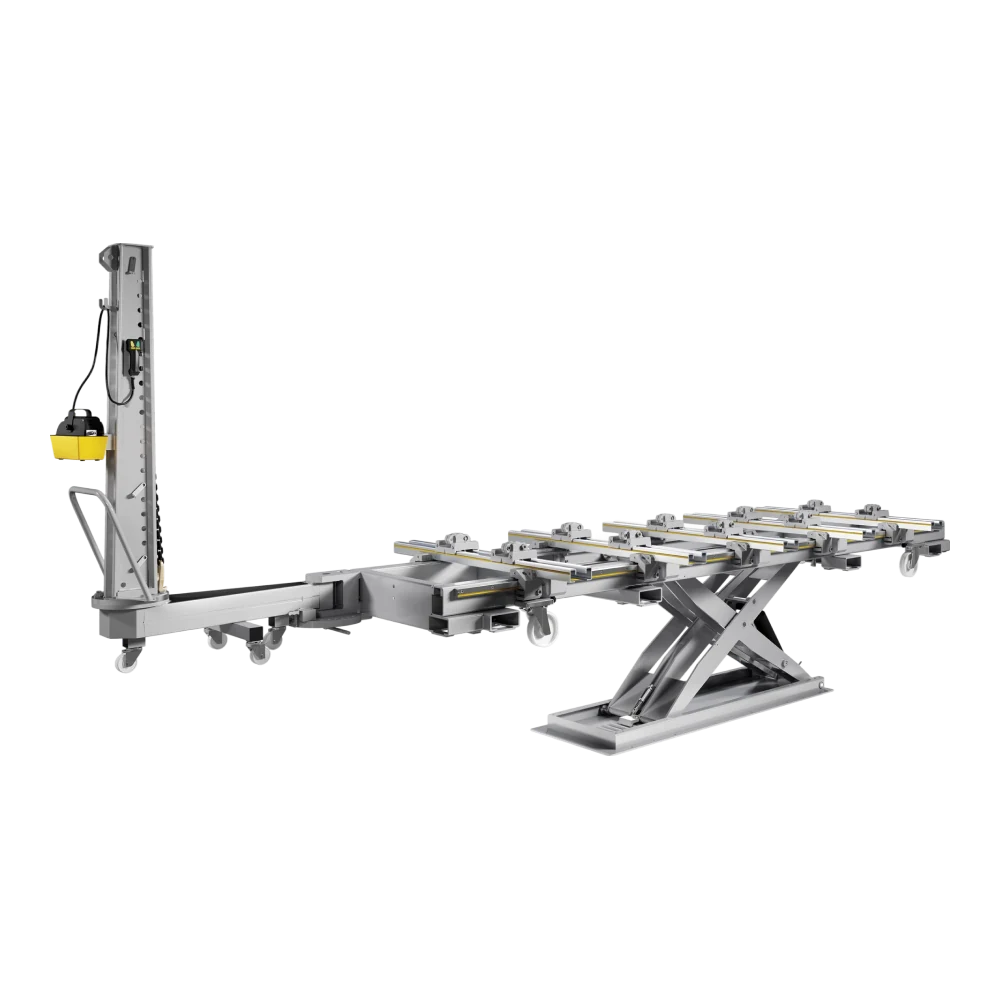

106
Frame machine and lift package with the Universal Jig System and loading equipment.
- Format
- Frame machine and lift
- Crossbars
- 5
- Holding
- Universal Jig System

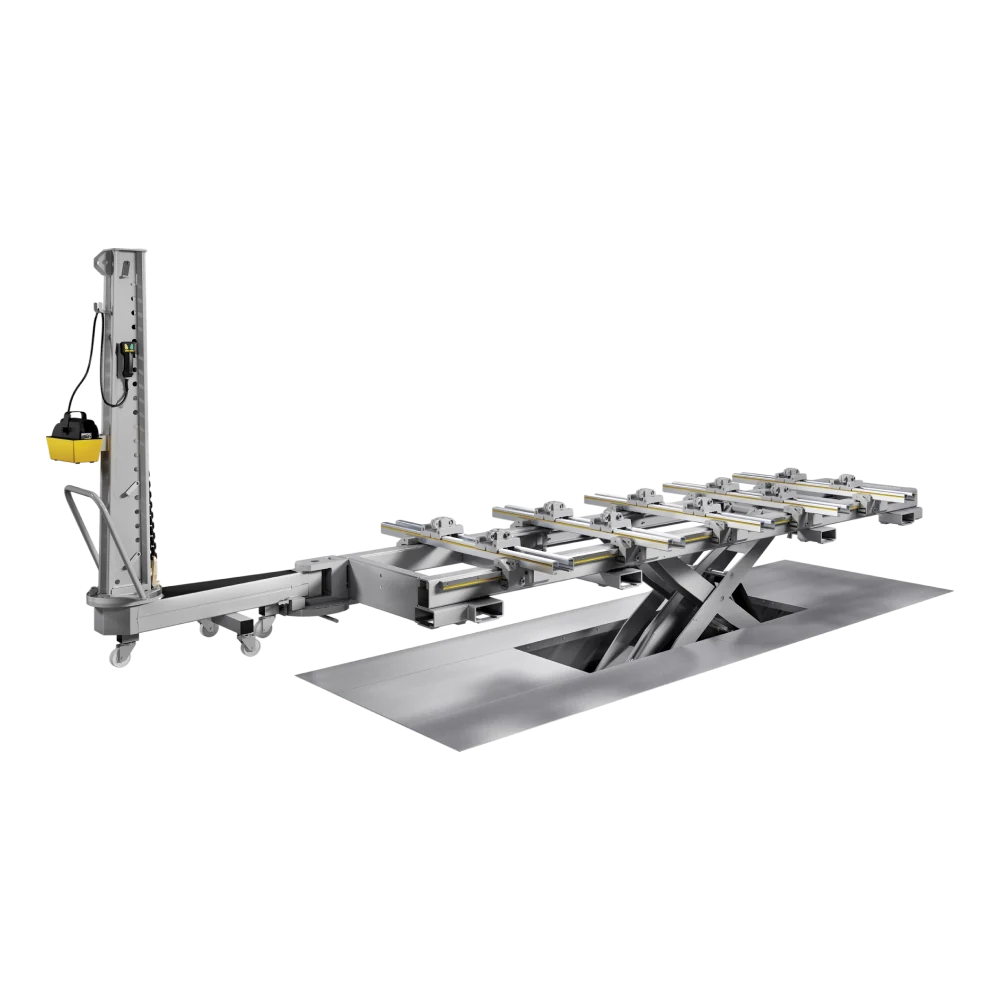

106 Plus
In-floor 106 configuration designed to preserve maximum usable workshop floor space.
- Installation
- In-floor
- Crossbars
- 5
- Holding
- Universal Jig System

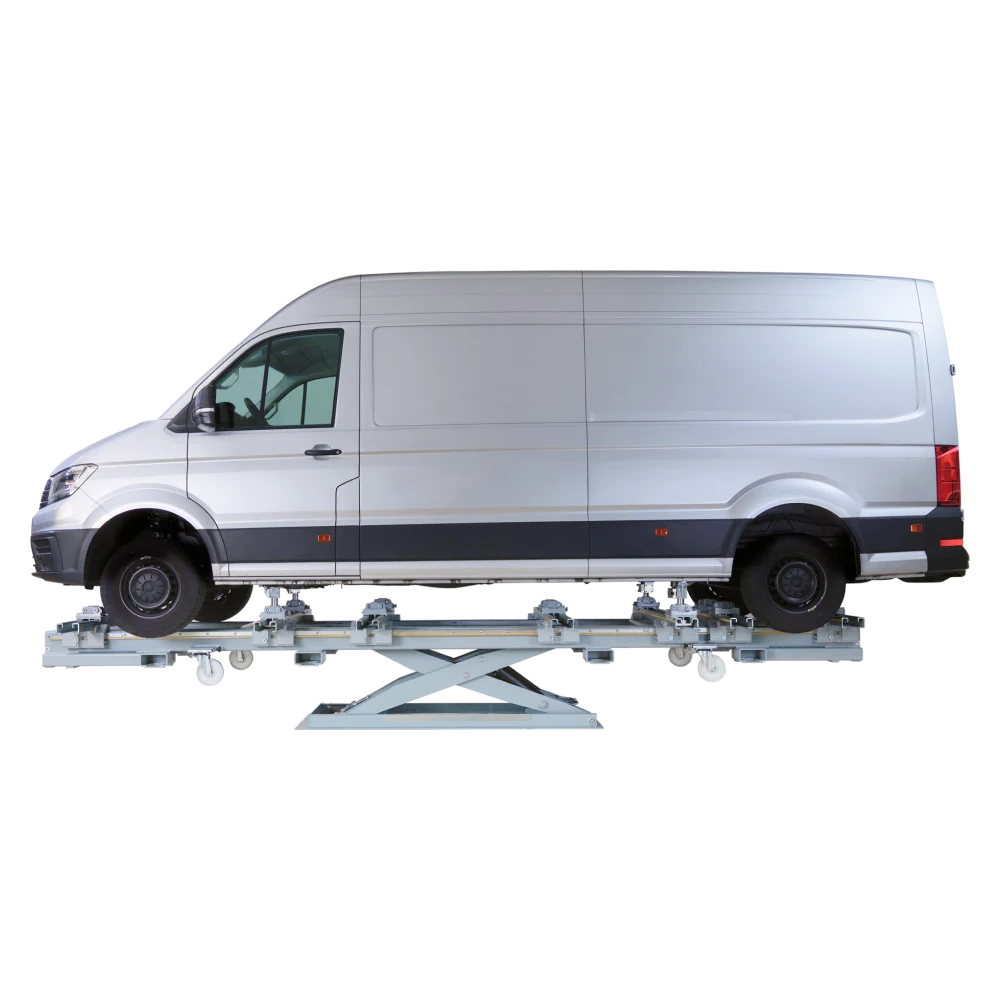

106 EXT
Extended 106 for vans, SUVs, and light- or medium-duty trucks.
- Length
- 19 ft 8 in / 6 m information
- Crossbars
- 6
- Holding
- Universal Jig System
Equipment details
Features & applications
Features
- Designed as a structural repair workstation.
- Supports 360-degree pulling-column information.
- Works with Universal Jig option in Spanesi material.
- Relevant for bodyshops that need a bench-based structural repair path.
- 100 Series review should confirm model length, Universal Jig requirement, lift/loading needs, pulling direction, clamps, crossbars, EV/SUV mix, and Touch measuring option.
- 100 Series frame-machine planning should include rack gears, pulling-column components, loading ramps, floor option, control box, trolley, and a comprehensive bench package.
Applications
- Structural repair
- Frame correction
- Pulling and anchoring
- Bodyshop repair planning
SPANESI
Product images & documents
Straightening Benches (PDF)
106 and Touch EV carThe 106 system and Touch are shown in an EV repair information, combining universal jig holding with electronic damage measurement.Official Spanesi product source100 Series Frame MachinesOpen the manufacturer page behind the product information shown here.M&H GROUP THAILAND / APAC
