Universal Jig

TECHNICAL DATA

Specifications

Model, included equipment and installation requirements are confirmed in the quotation.

Straightening benches & Universal Jig (PDF)
Components
Trolley, crossbars and rack gears, ramps, bolt set, software, measuring-system information
Vehicle scope
Cars, trucks, and EV information from Spanesi page
Core components

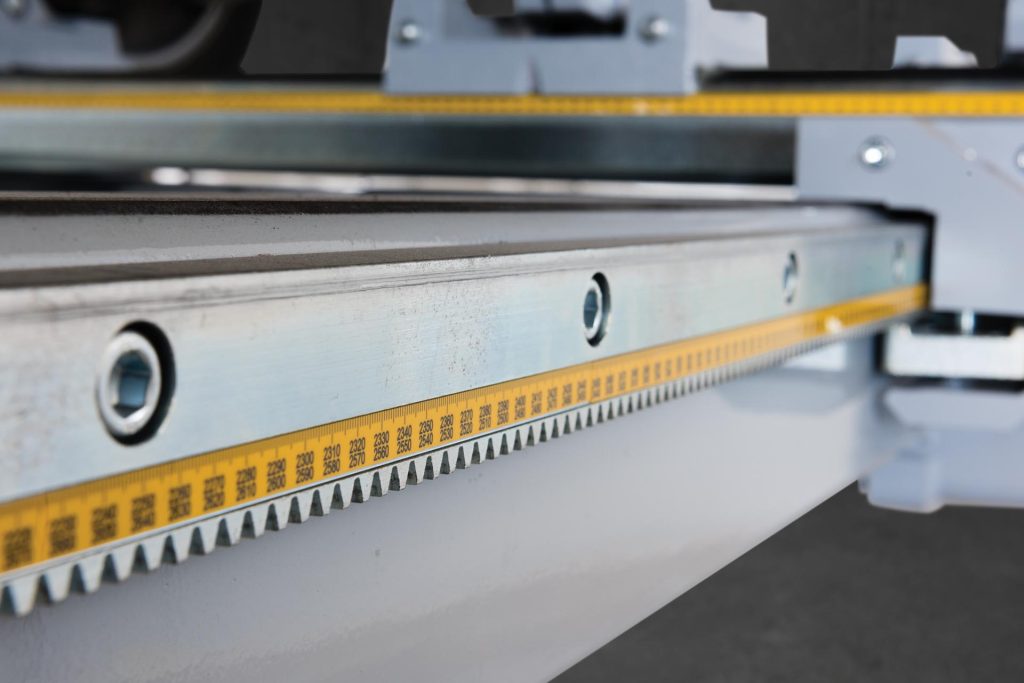

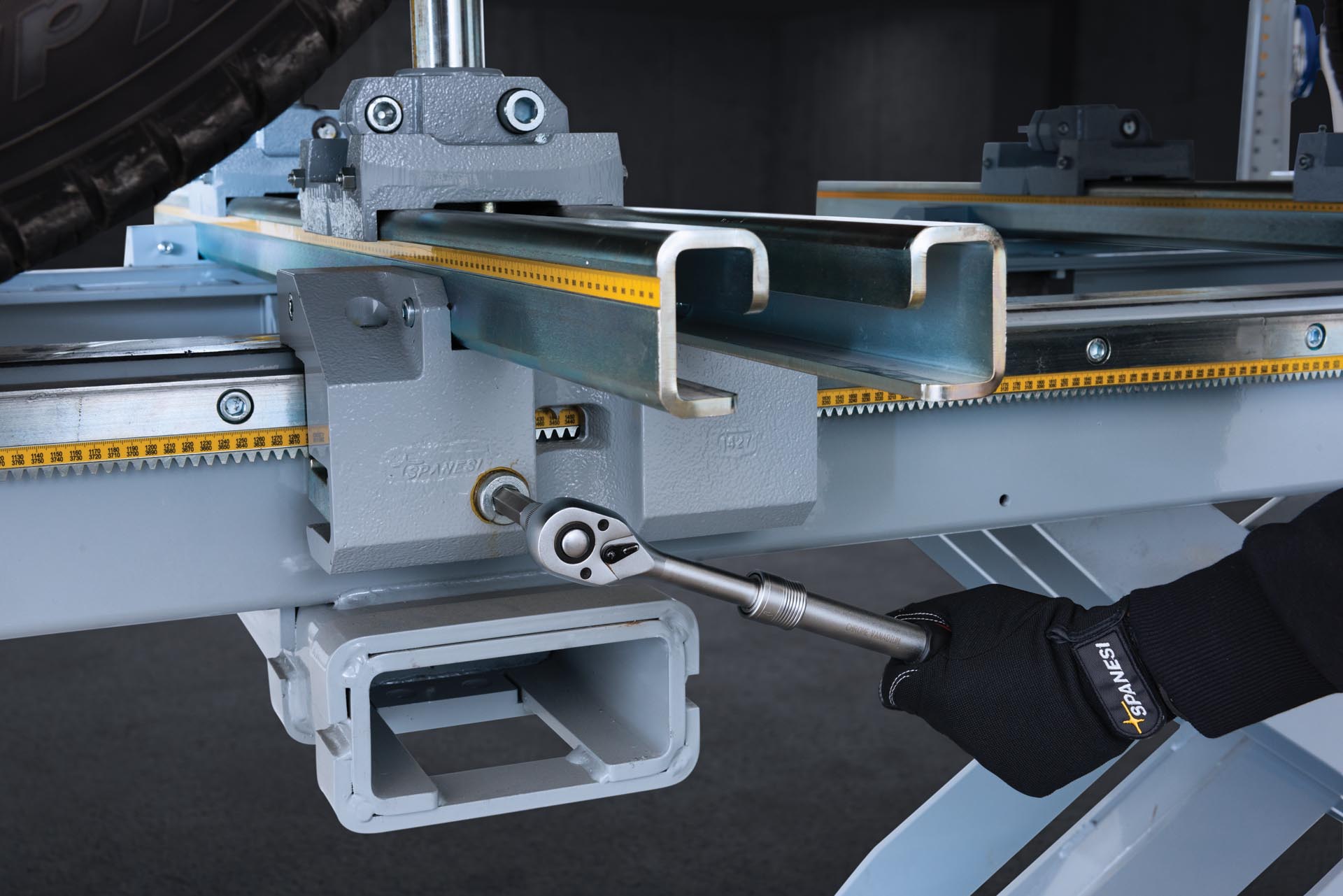

Universal Jig trolley, crossbars and rack gears, positioning and ascending ramps, special hardened bolt set, WinStar software, and McPherson Measuring System
Repair platform
3-dimensional repair platform information
Measurement restoration
Length, width, and height values returned to original specifications information
Software
WinStar software displays universal jig datasheets in 3D and is updated biannually according to Spanesi
Accessory and adapter information
90PANPB010 and 91SETAL010 accessory references appear on the official Spanesi Universal Jig page; confirm the exact adapter package before requesting a quote
Accessory article no. - Aluminum Body Adapters
91SETAL010
Accessory article no. - Adapters Holder Shelf
90PANPB010

Equipment details

Features & applications

Features

  • Supports secure fixturing during structural repair.
  • Designed for broad vehicle coverage.
  • Connects to software and measuring information.
  • Important when repeatable holding is part of the repair process.
  • Universal Jig review should confirm bench compatibility, crossbar/rack gear package, WinStar data needs, McPherson measuring option, and technician training.
  • The official Spanesi page positions Universal Jig for past, current, and future vehicles.

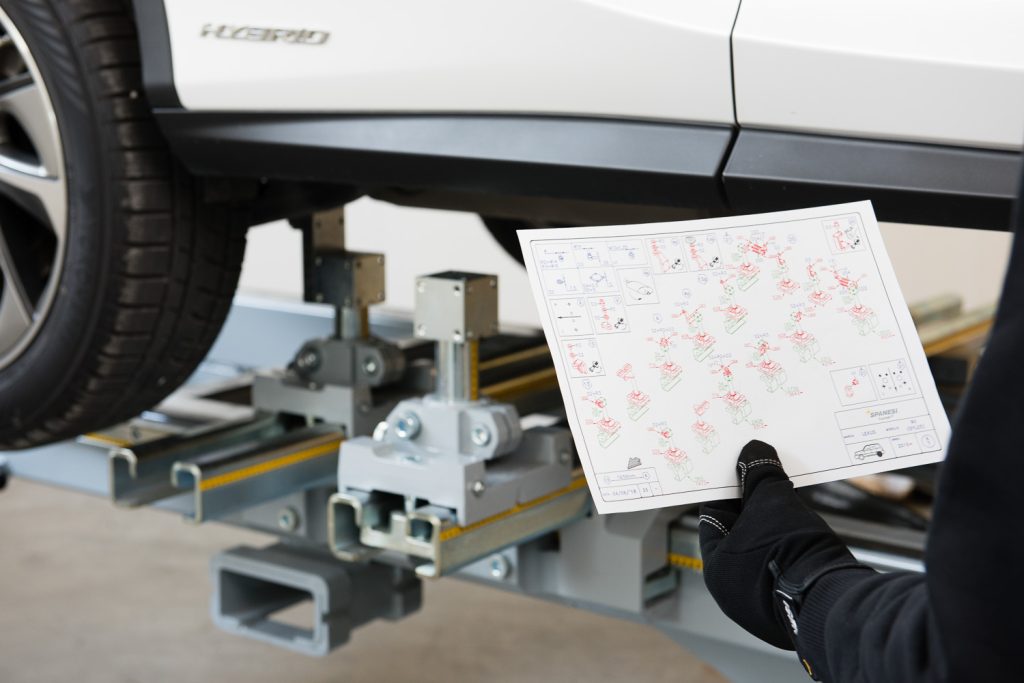

  • Universal Jig uses gear-driven racks, crossbars, positioning and ascending ramps, adapters, alignment data, and repair-accuracy information for aluminum and steel vehicle structures.
