IRT / HEDSON
IRT Combi 4.1 / 4.2
Infrared and UVA. Match the coating.

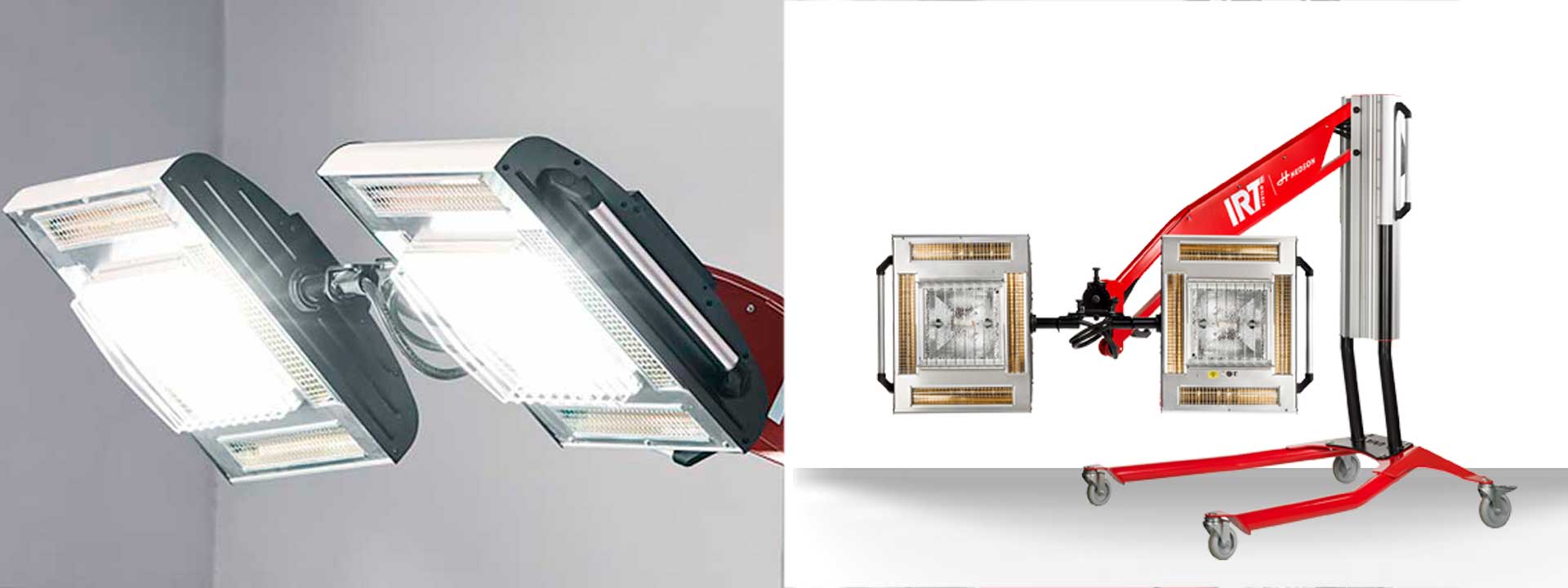

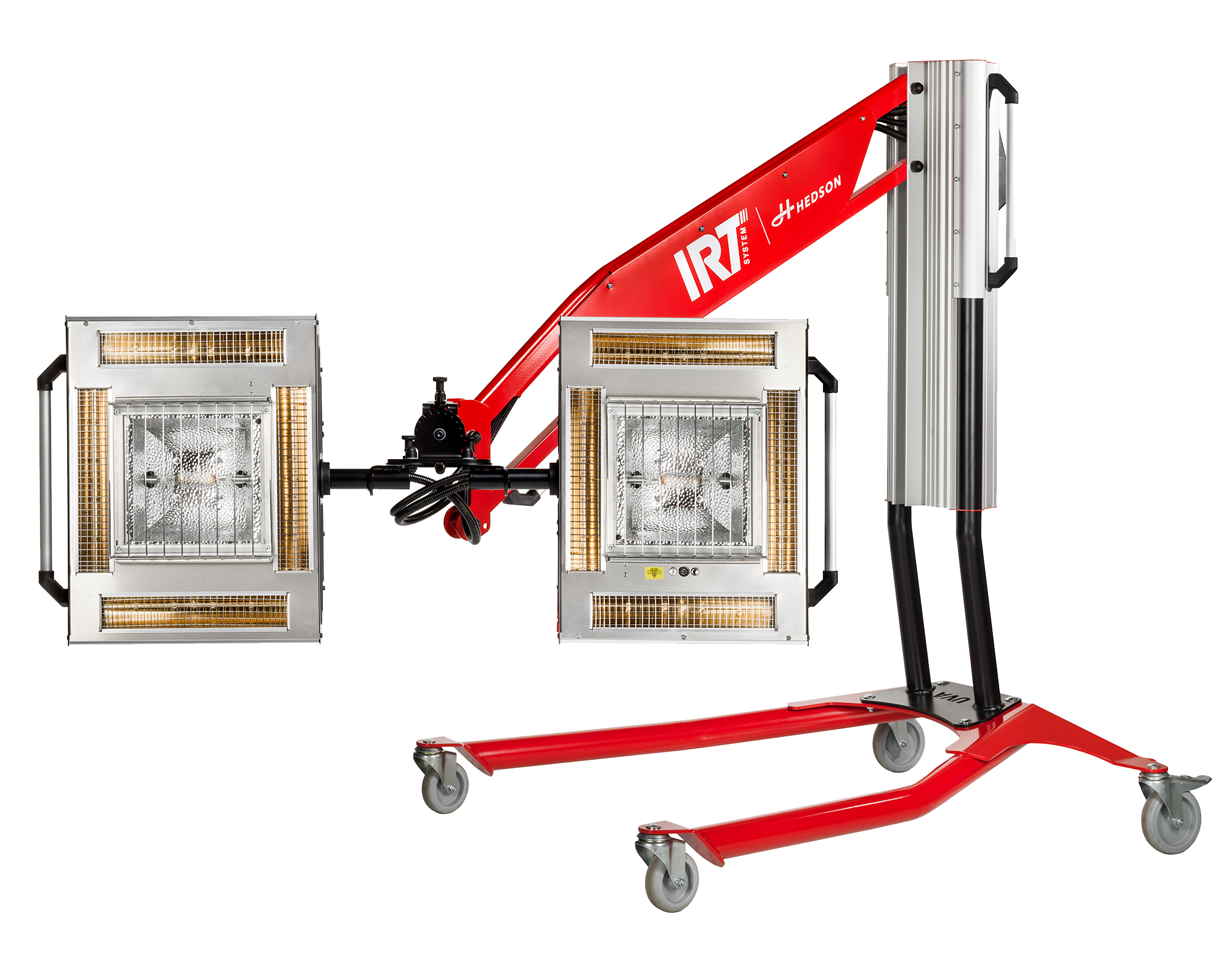

Mobile curing systems combining infrared and UVA. The 4-1 has one cassette; the 4-2 has two, with separate output specifications for the two curing technologies.
- 4-1 infrared / UVA output
- 6 / 1.2 kW
- 4-2 infrared / UVA output
- 12 / 2.4 kW
- Supply
- 380–420 V · 3 PH/PE
- 4-1 / 4-2 weight
- 70 / 85 kg
IRT
Speak with M&H Sales
+66 88 984 8897
YOUR WORKSHOP
Start with your coating system.
UV, UVA and infrared are not interchangeable processes. Tell M&H which coating you use and the repair area, then choose the matching equipment and electrical version.
Compare 2 configurations
| 800605 | Combi 4-1 IR-UVA |
|---|---|
| 800606 | Combi 4-2 IR-UVA |
Choose one verified configuration to continue.
Your enquiry goes to M&H Group. No order or payment is placed here.
TECHNICAL DETAILS
The details that matter.
| 4-1 infrared / UVA output | 6 / 1.2 kW |
|---|---|
| 4-2 infrared / UVA output | 12 / 2.4 kW |
| Supply | 380–420 V · 3 PH/PE |
| 4-1 / 4-2 weight | 70 / 85 kg |
The IR/UVA outputs shown apply to the 380–420 V version. The 230 V versions have UVA outputs of 1 kW (single cassette) or 2 kW (twin cassette).
Operation and safety
Use only compatible coatings. UV and UVA equipment requires trained operators, suitable eye and skin protection, and a controlled work area. Follow the model's operating manual.
Planning your installation
UV, UVA and infrared are not interchangeable processes. Tell M&H which coating you use and the repair area, then choose the matching equipment and electrical version.
Discuss with M&H Sales →DOCUMENTS & SUPPORT
Keep the right details to hand.
Speak with M&H about the selected article, installation, spare parts and operating instructions.
Ask M&H for product support →Brochures and operating documents
